MXOP-SL Platform Series
SKU:
MXOP-SL SERIES
Name:
₦728,596.00
MXOP-SL Platform Series
₦728,596.00
MXOP-SL Platform Series
Expand a variant below to view variant-specific images, product details, downloadable files, and additional technical details.
MXOP-SL [91170000E]
Variant Images
![MXOP-SL [91170000E] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/91170000E.jpg)
![MXOP-SL [91170000E] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/91170000E_1.jpg)
Product Details
XY Translating Platforms with manual or motorized drives are available for most upright microscope. They allow you to move the platform instead of the microscope to find a new recording location while you are still recording from your original patch site. They are available exclusively with crossed roller stages for stiction-free repositioning - you will not jolt your sample when you make adjustments. The inherent stability of our construction maintains the focal plane of the microscope while sensitive experiments are not disturbed. Support platforms are color coded to match the top platform to ensure that the correct platform is matched with its support location. The platforms are machined from stress-free aluminum tooling plate which provides the flattest platforms available.
Product Features
- 40 and 80 pitch adjustment screws
- Available for upright and inverted microscopes
- Full crossed roller bearings
- Lockable travel (manual versions)
- RoHS compliant
Performance Specifications:
- Load maximum: 100 lb centered
- Travel:
- X axis 1.0 inch / 25
- Y axis 1.0 inch / 25
- Minimum controllable motion*:
- 40 pitch screw: 10 µm
- 80 pitch screw: submicron
*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

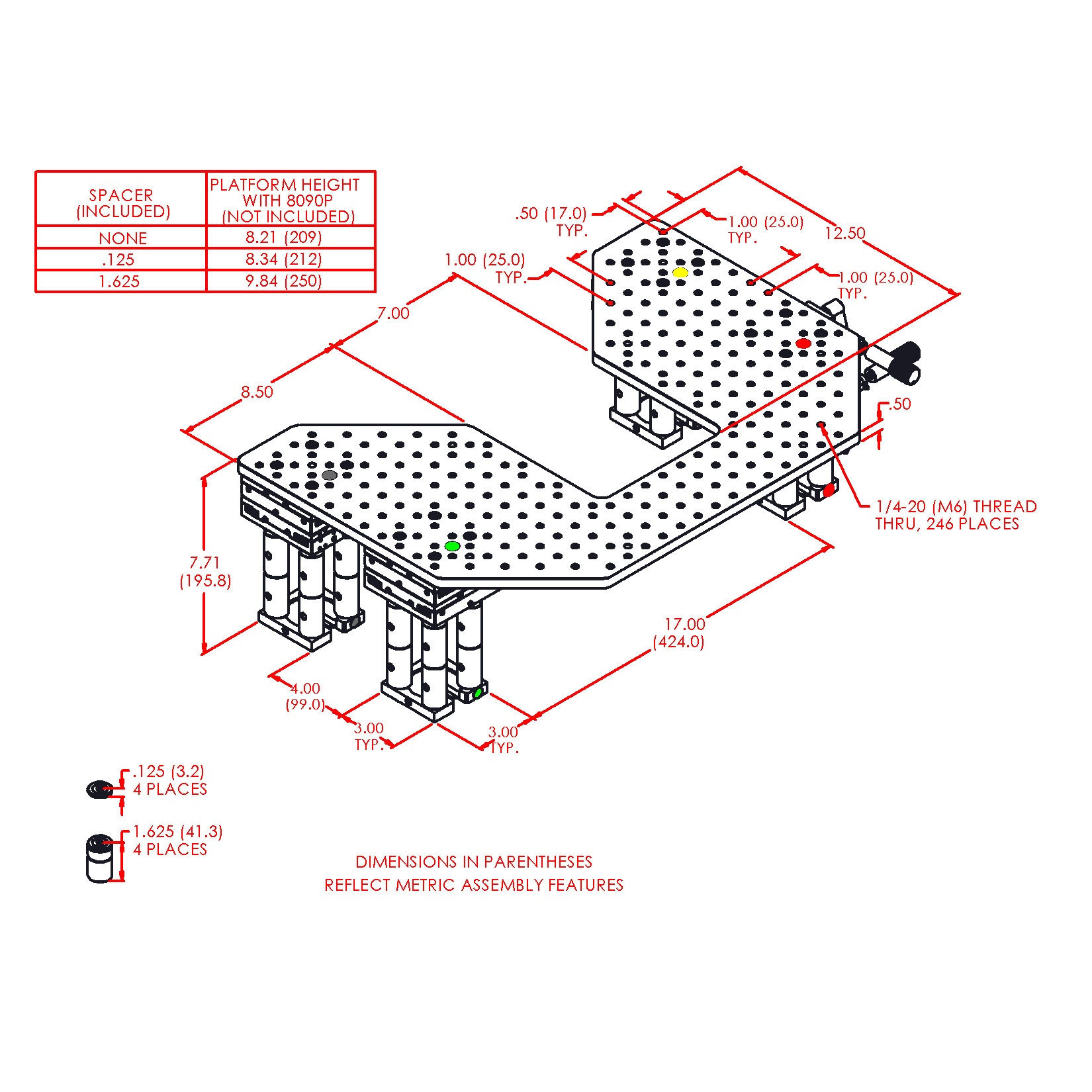

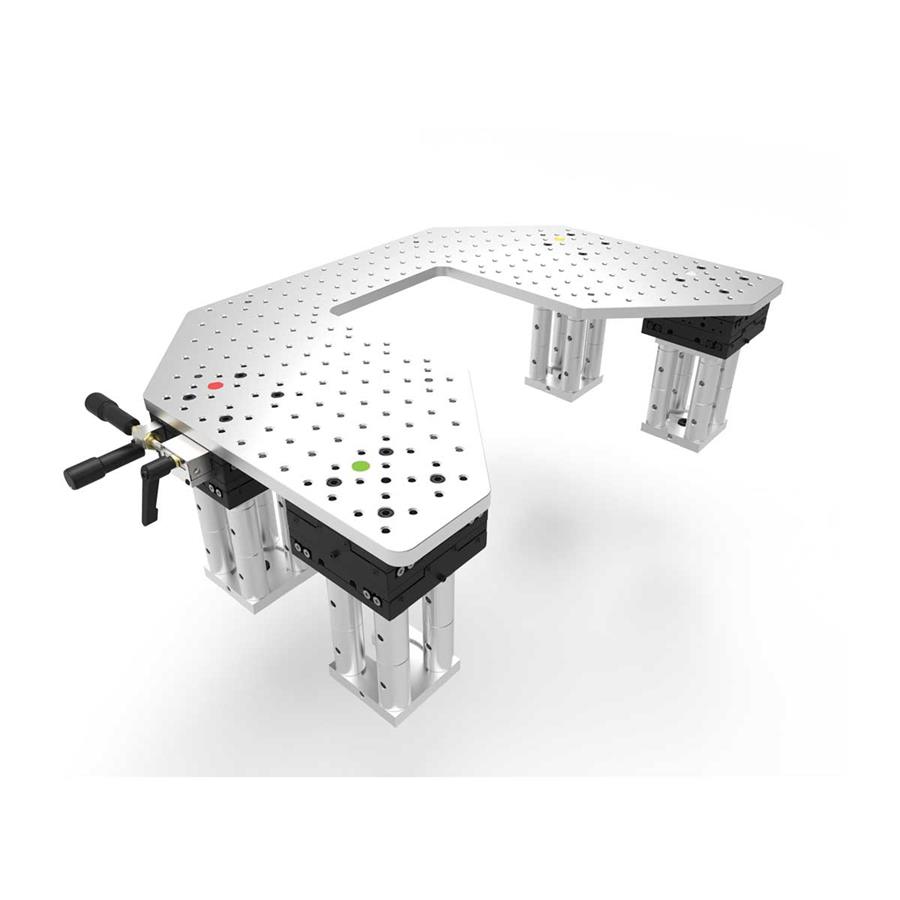

MXOP-SL M [91170000M]
Variant Images
![MXOP-SL M [91170000M] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/91170000M.jpg)
![MXOP-SL M [91170000M] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/91170000M_1.jpg)
Product Details
XY Translating Platforms with manual or motorized drives are available for most upright microscope. They allow you to move the platform instead of the microscope to find a new recording location while you are still recording from your original patch site. They are available exclusively with crossed roller stages for stiction-free repositioning - you will not jolt your sample when you make adjustments. The inherent stability of our construction maintains the focal plane of the microscope while sensitive experiments are not disturbed. Support platforms are color coded to match the top platform to ensure that the correct support platform is matched with its support location. The platforms are machined from stress-free aluminum tooling plate which provides the flattest platforms available.
Product Features
- 40 and 80 pitch adjustment screws
- Available for upright and inverted microscopes
- Full crossed roller bearings
- Lockable travel (manual versions)
- RoHS compliant
Performance Specifications:
- Load maximum: 100 lb centered
- Travel:
- X axis 1.0 inch / 25
- Y axis 1.0 inch / 25
- Minimum controllable motion*:
- 40 pitch screw: 10 µm
- 80 pitch screw: submicron
*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION
