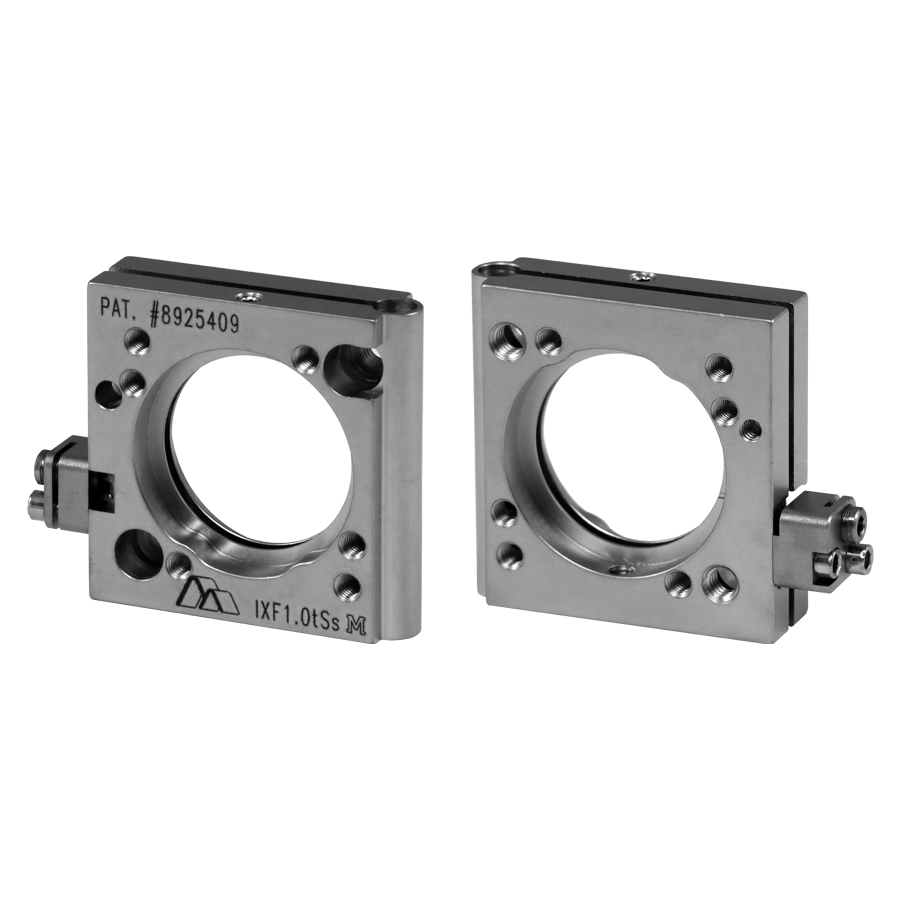

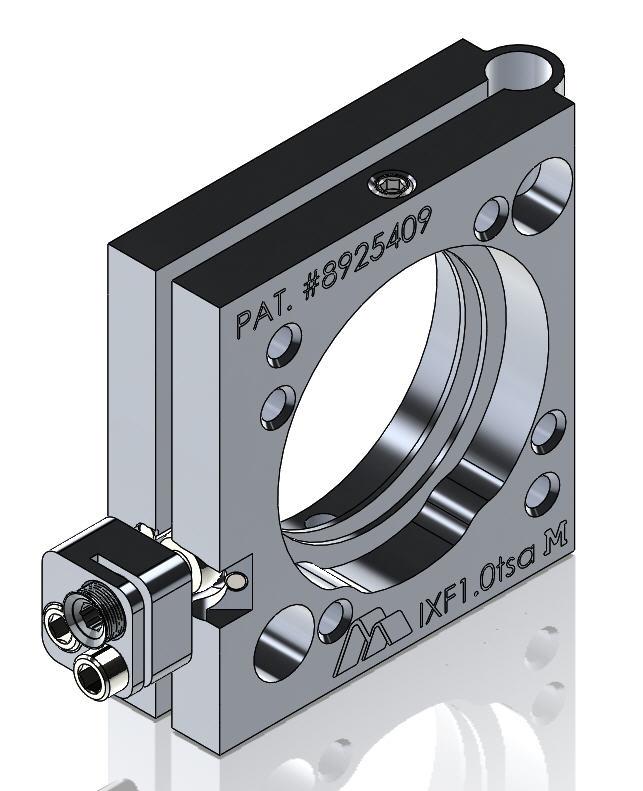

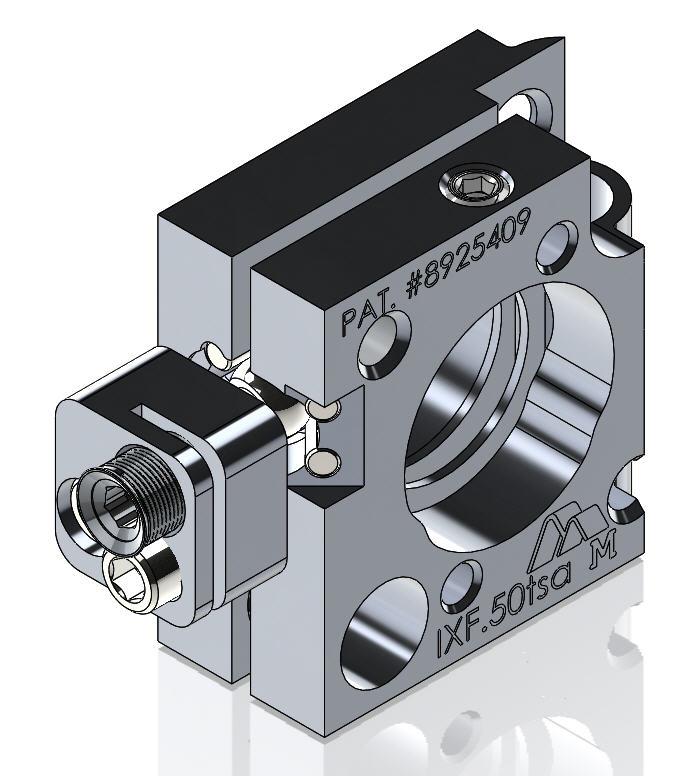

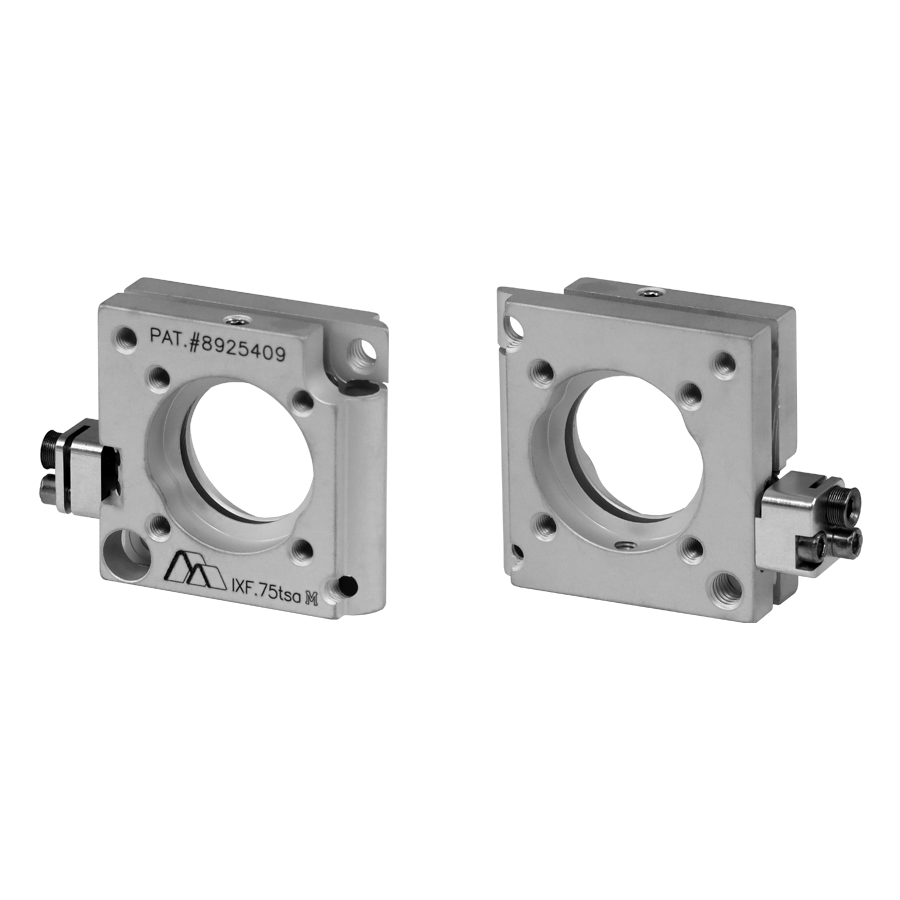

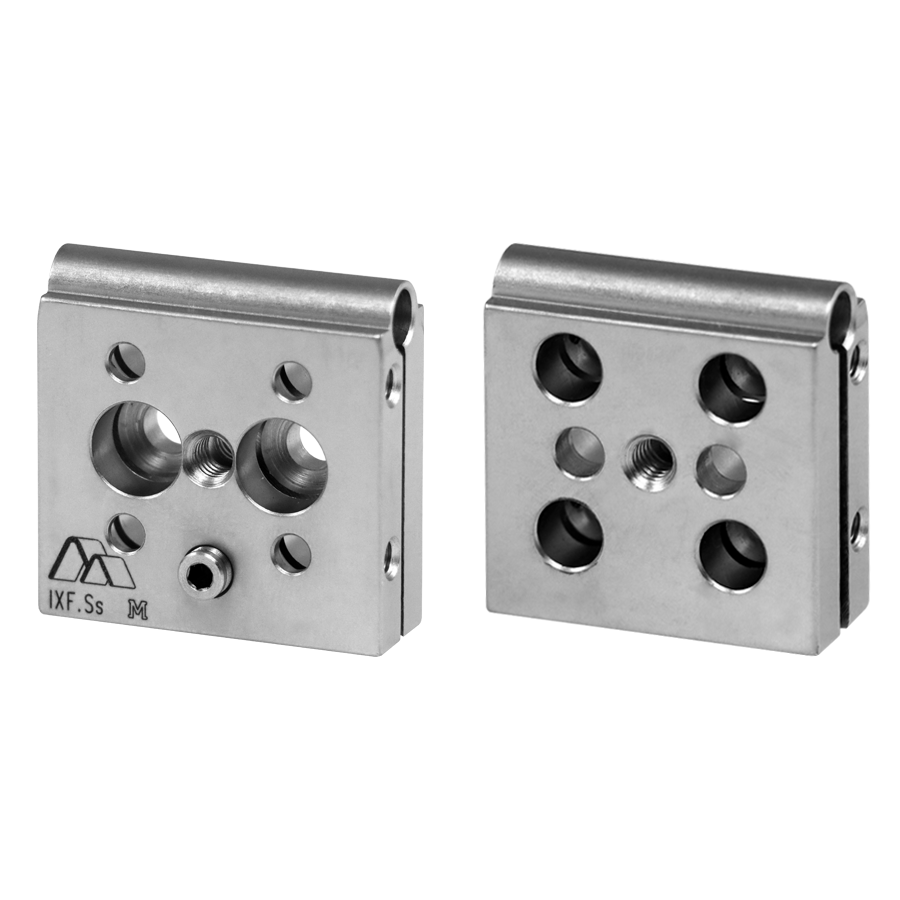

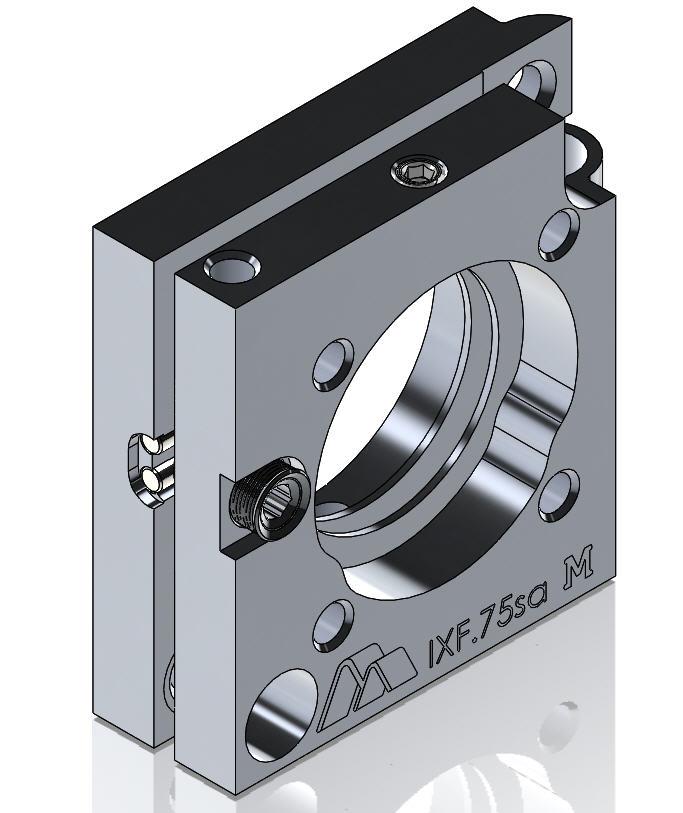

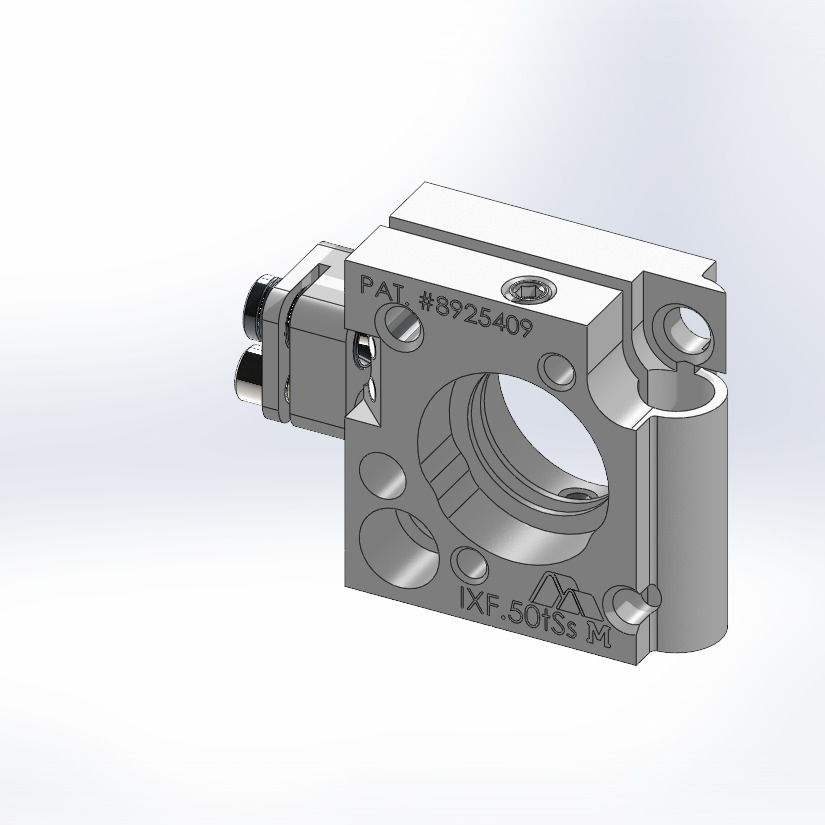

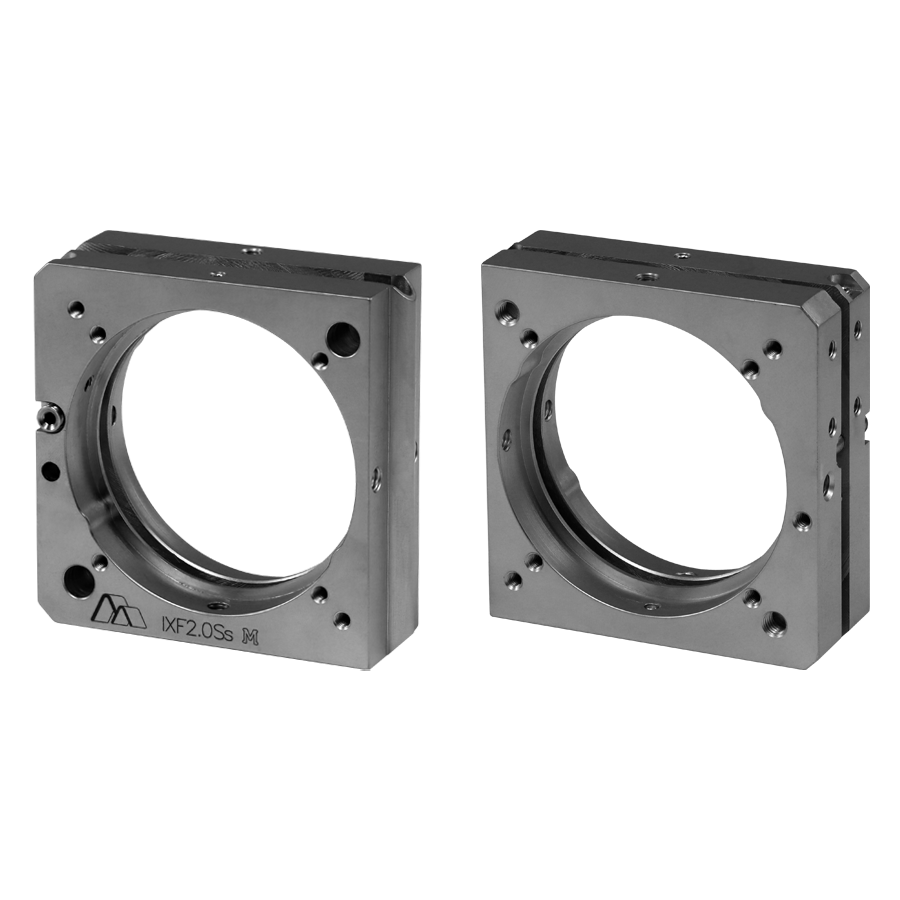

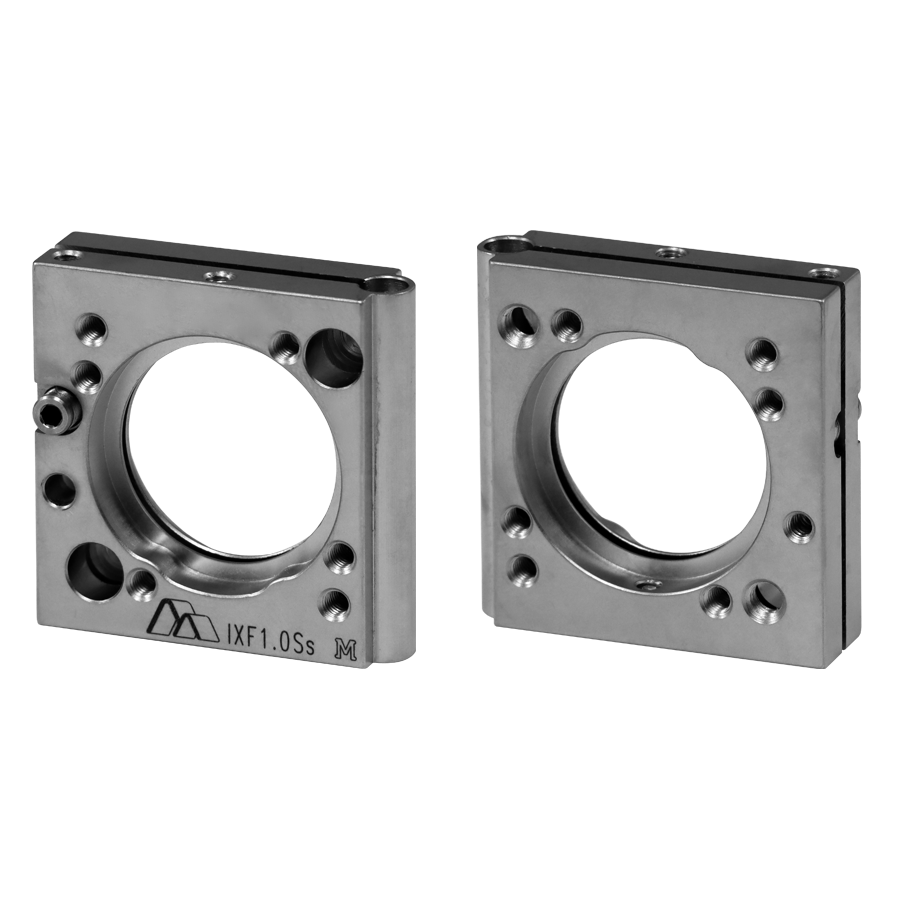

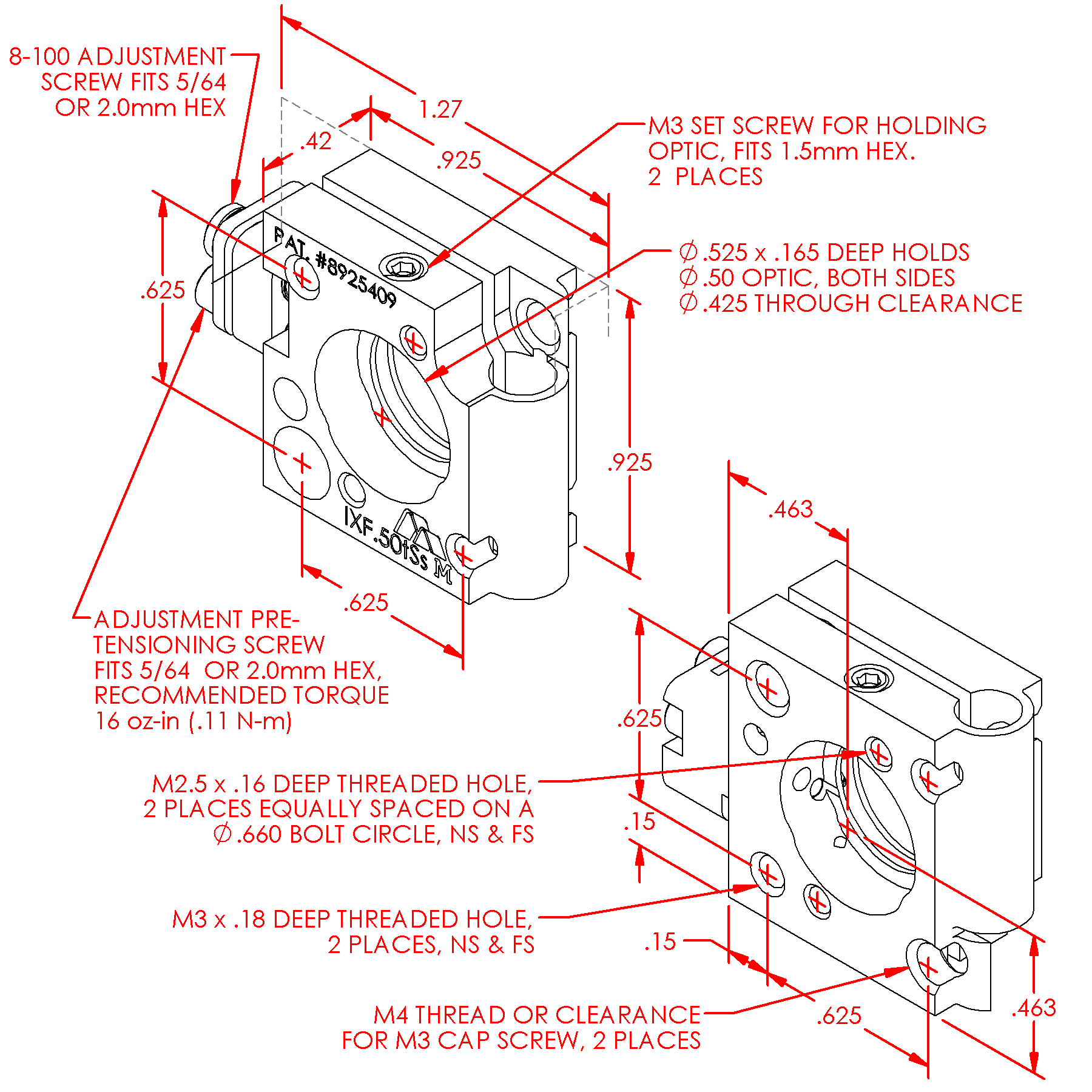

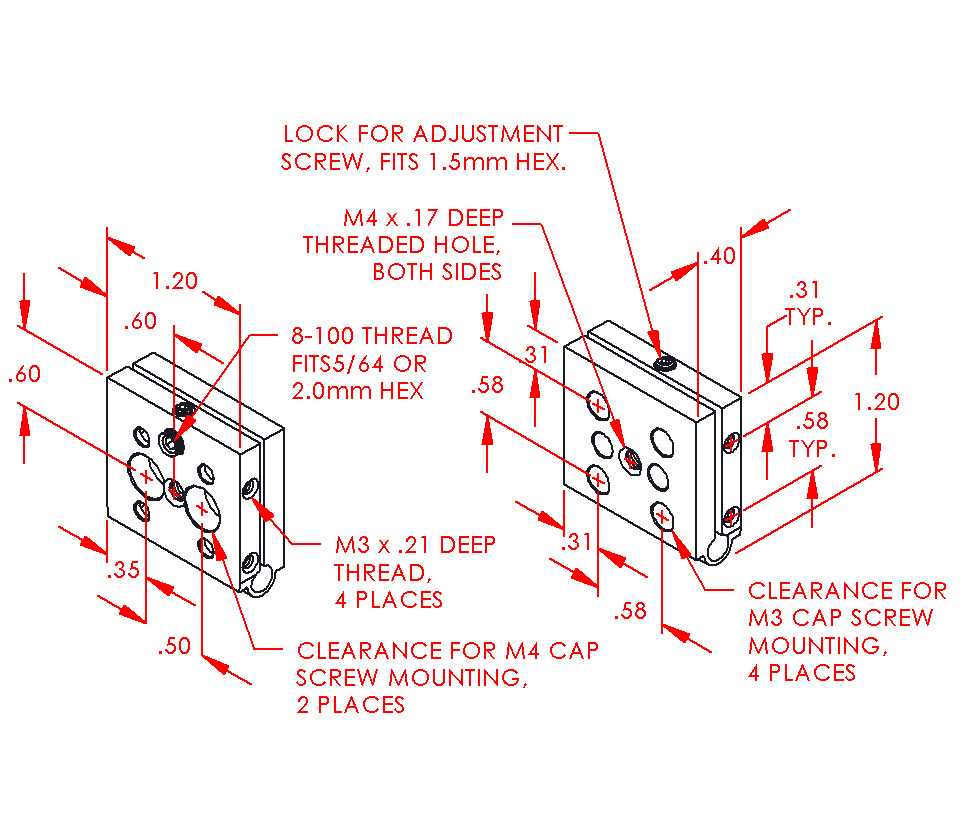

SINGLE AXIS FLEXURE MOUNTS

This series of OEM single axis optical mounts from Siskiyou Corporation offer exceptional stability at a low price point. This performance is achieved in the new IXFs series mounts through the use of Siskiyou's monolithic flexure construction in which the entire mount - both plates and springs - are fabricated from a single piece of metal. This unique configuration yields improved heat transfer through the mount over the traditional kinematic construction resulting in significantly better pointing stability in the presence of temperature changes. And limiting the mount to a single axis of adjustment simplifies its construction thus reducing cost.

IXFs single axis mounts are currently available for optics in the 0.50" to 2.0" (12.7mm to 50.8mm) diameter range. A variety of mounting configurations are available including bulkhead placement with either front or rear (through the bulkhead) adjustment options making the mounts particularly useful for space constrained applications. IXFs mounts are also compatible with the Siskiyou IXFc Optic Clip which enables components to be retained with no mechanical distortion.

IXF series mounts are available in both stainless steel and aluminum versions. Stainless steel construction offers superior mechanical and thermal stability while aluminum confers lower weight and vacuum compatibility. The mount's use in vacuum applications is further enhanced because monolithic construction utilizes no "blind holes" or other places in the mount in which gas or volatiles can be trapped thus eliminating the potential for outgassing.

Product Features:

• Lockable 100TPI adjustment screws
• One-piece construction
• UV and Vacuum compatible versions available
• RoHS compliant

Performance Specifications:

• Adjustment range(pitch): 6.0°(±3°)
• Minimum controllable motion*: 8.2 arc sec.

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

This series of OEM single axis optical mounts from Siskiyou Corporation offer exceptional stability at a low price point. This performance is achieved in the new IXFs series mounts through the use of Siskiyou's monolithic flexure construction in which the entire mount - both plates and springs - are fabricated from a single piece of metal. This unique configuration yields improved heat transfer through the mount over the traditional kinematic construction resulting in significantly better pointing stability in the presence of temperature changes. And limiting the mount to a single axis of adjustment simplifies its construction thus reducing cost.

IXFs single axis mounts are currently available for optics in the 0.50" to 2.0" (12.7mm to 50.8mm) diameter range. A variety of mounting configurations are available including bulkhead placement with either front or rear (through the bulkhead) adjustment options making the mounts particularly useful for space constrained applications. IXFs mounts are also compatible with the Siskiyou IXFc Optic Clip which enables components to be retained with no mechanical distortion.

IXF series mounts are available in both stainless steel and aluminum versions. Stainless steel construction offers superior mechanical and thermal stability while aluminum confers lower weight and vacuum compatibility. The mount's use in vacuum applications is further enhanced because monolithic construction utilizes no "blind holes" or other places in the mount in which gas or volatiles can be trapped thus eliminating the potential for outgassing.

Product Features:

• Lockable 100TPI adjustment screws
• One-piece construction
• UV and Vacuum compatible versions available
• RoHS compliant

Performance Specifications:

• Adjustment range(pitch): 6.0°(±3°)
• Minimum controllable motion*: 8.2 arc sec.

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

This series of OEM single axis optical mounts from Siskiyou Corporation offer exceptional stability at a low price point. This performance is achieved in the new IXFs series mounts through the use of Siskiyou's monolithic flexure construction in which the entire mount - both plates and springs - are fabricated from a single piece of metal. This unique configuration yields improved heat transfer through the mount over the traditional kinematic construction resulting in significantly better pointing stability in the presence of temperature changes. And limiting the mount to a single axis of adjustment simplifies its construction thus reducing cost.

IXFs single axis mounts are currently available for optics in the 0.50" to 2.0" (12.7mm to 50.8mm) diameter range. A variety of mounting configurations are available including bulkhead placement with either front or rear (through the bulkhead) adjustment options making the mounts particularly useful for space constrained applications. IXFs mounts are also compatible with the Siskiyou IXFc Optic Clip which enables components to be retained with no mechanical distortion.

IXF series mounts are available in both stainless steel and aluminum versions. Stainless steel construction offers superior mechanical and thermal stability while aluminum confers lower weight and vacuum compatibility. The mount's use in vacuum applications is further enhanced because monolithic construction utilizes no "blind holes" or other places in the mount in which gas or volatiles can be trapped thus eliminating the potential for outgassing.

Product Features:

• Lockable 100TPI adjustment screws
• One-piece construction
• UV and Vacuum compatible versions available
• RoHS compliant

Performance Specifications:

• Adjustment range(pitch): 6.0°(±3°)
• Minimum controllable motion*: 8.2 arc sec.

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

This series of OEM single axis optical mounts from Siskiyou Corporation offer exceptional stability at a low price point. This performance is achieved in the new IXFs series mounts through the use of Siskiyou's monolithic flexure construction in which the entire mount - both plates and springs - are fabricated from a single piece of metal. This unique configuration yields improved heat transfer through the mount over the traditional kinematic construction resulting in significantly better pointing stability in the presence of temperature changes. And limiting the mount to a single axis of adjustment simplifies its construction thus reducing cost.

IXFs single axis mounts are currently available for optics in the 0.50" to 2.0" (12.7mm to 50.8mm) diameter range. A variety of mounting configurations are available including bulkhead placement with either front or rear (through the bulkhead) adjustment options making the mounts particularly useful for space constrained applications. IXFs mounts are also compatible with the Siskiyou IXFc Optic Clip which enables components to be retained with no mechanical distortion.

IXF series mounts are available in both stainless steel and aluminum versions. Stainless steel construction offers superior mechanical and thermal stability while aluminum confers lower weight and vacuum compatibility. The mount's use in vacuum applications is further enhanced because monolithic construction utilizes no "blind holes" or other places in the mount in which gas or volatiles can be trapped thus eliminating the potential for outgassing.

Product Features:

• Lockable 100TPI adjustment screws
• One-piece construction
• UV and Vacuum compatible versions available
• RoHS compliant

Performance Specifications:

• Adjustment range(pitch): 6.0°(±3°)
• Minimum controllable motion*: 8.2 arc sec.

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

This series of OEM single axis optical mounts from Siskiyou Corporation offer exceptional stability at a low price point. This performance is achieved in the new IXFs series mounts through the use of Siskiyou's monolithic flexure construction in which the entire mount - both plates and springs - are fabricated from a single piece of metal. This unique configuration yields improved heat transfer through the mount over the traditional kinematic construction resulting in significantly better pointing stability in the presence of temperature changes. And limiting the mount to a single axis of adjustment simplifies its construction thus reducing cost.

IXFs single axis mounts are currently available for optics in the 0.50" to 2.0" (12.7mm to 50.8mm) diameter range. A variety of mounting configurations are available including bulkhead placement with either front or rear (through the bulkhead) adjustment options making the mounts particularly useful for space constrained applications. IXFs mounts are also compatible with the Siskiyou IXFc Optic Clip which enables components to be retained with no mechanical distortion.

IXF series mounts are available in both stainless steel and aluminum versions. Stainless steel construction offers superior mechanical and thermal stability while aluminum confers lower weight and vacuum compatibility. The mount's use in vacuum applications is further enhanced because monolithic construction utilizes no "blind holes" or other places in the mount in which gas or volatiles can be trapped thus eliminating the potential for outgassing.

Product Features:

• Lockable 100TPI adjustment screws
• One-piece construction
• UV and Vacuum compatible versions available
• RoHS compliant

Performance Specifications:

• Adjustment range(pitch): 6.0°(±3°)
• Minimum controllable motion*: 5.5 arc sec.

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

This series of OEM single axis optical mounts from Siskiyou Corporation offer exceptional stability at a low price point. This performance is achieved in the new IXFs series mounts through the use of Siskiyou's monolithic flexure construction in which the entire mount - both plates and springs - are fabricated from a single piece of metal. This unique configuration yields improved heat transfer through the mount over the traditional kinematic construction resulting in significantly better pointing stability in the presence of temperature changes. And limiting the mount to a single axis of adjustment simplifies its construction thus reducing cost.

IXFs single axis mounts are currently available for optics in the 0.50" to 2.0" (12.7mm to 50.8mm) diameter range. A variety of mounting configurations are available including bulkhead placement with either front or rear (through the bulkhead) adjustment options making the mounts particularly useful for space constrained applications. IXFs mounts are also compatible with the Siskiyou IXFc Optic Clip which enables components to be retained with no mechanical distortion.

IXF series mounts are available in both stainless steel and aluminum versions. Stainless steel construction offers superior mechanical and thermal stability while aluminum confers lower weight and vacuum compatibility. The mount's use in vacuum applications is further enhanced because monolithic construction utilizes no "blind holes" or other places in the mount in which gas or volatiles can be trapped thus eliminating the potential for outgassing.

Product Features:

• Lockable 100TPI adjustment screws
• One-piece construction
• UV and Vacuum compatible versions available
• RoHS compliant

Performance Specifications:

• Adjustment range(pitch): 6.0°(±3°)
• Minimum controllable motion*: 5.5 arc sec.

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

This series of OEM single axis optical mounts from Siskiyou Corporation offer exceptional stability at a low price point. This performance is achieved in the new IXFs series mounts through the use of Siskiyou's monolithic flexure construction in which the entire mount - both plates and springs - are fabricated from a single piece of metal. This unique configuration yields improved heat transfer through the mount over the traditional kinematic construction resulting in significantly better pointing stability in the presence of temperature changes. And limiting the mount to a single axis of adjustment simplifies its construction thus reducing cost.

IXFs single axis mounts are currently available for optics in the 0.50" to 2.0" (12.7mm to 50.8mm) diameter range. A variety of mounting configurations are available including bulkhead placement with either front or rear (through the bulkhead) adjustment options making the mounts particularly useful for space constrained applications. IXFs mounts are also compatible with the Siskiyou IXFc Optic Clip which enables components to be retained with no mechanical distortion.

IXF series mounts are available in both stainless steel and aluminum versions. Stainless steel construction offers superior mechanical and thermal stability while aluminum confers lower weight and vacuum compatibility. The mount's use in vacuum applications is further enhanced because monolithic construction utilizes no "blind holes" or other places in the mount in which gas or volatiles can be trapped thus eliminating the potential for outgassing.

Product Features:

• Lockable 100TPI adjustment screws
• One-piece construction
• UV and Vacuum compatible versions available
• RoHS compliant

Performance Specifications:

• Adjustment range(pitch): 6.0°(±3°)
• Minimum controllable motion*: 5.5 arc sec.

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

This series of OEM single axis optical mounts from Siskiyou Corporation offer exceptional stability at a low price point. This performance is achieved in the new IXFs series mounts through the use of Siskiyou's monolithic flexure construction in which the entire mount - both plates and springs - are fabricated from a single piece of metal. This unique configuration yields improved heat transfer through the mount over the traditional kinematic construction resulting in significantly better pointing stability in the presence of temperature changes. And limiting the mount to a single axis of adjustment simplifies its construction thus reducing cost.

IXFs single axis mounts are currently available for optics in the 0.50" to 2.0" (12.7mm to 50.8mm) diameter range. A variety of mounting configurations are available including bulkhead placement with either front or rear (through the bulkhead) adjustment options making the mounts particularly useful for space constrained applications. IXFs mounts are also compatible with the Siskiyou IXFc Optic Clip which enables components to be retained with no mechanical distortion.

IXF series mounts are available in both stainless steel and aluminum versions. Stainless steel construction offers superior mechanical and thermal stability while aluminum confers lower weight and vacuum compatibility. The mount's use in vacuum applications is further enhanced because monolithic construction utilizes no "blind holes" or other places in the mount in which gas or volatiles can be trapped thus eliminating the potential for outgassing.

Product Features:

• Lockable 100TPI adjustment screws
• One-piece construction
• UV and Vacuum compatible versions available
• RoHS compliant

Performance Specifications:

• Adjustment range(pitch): 6.0°(±3°)
• Minimum controllable motion*: 5.5 arc sec.

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

This series of OEM single axis optical mounts from Siskiyou Corporation offer exceptional stability at a low price point. This performance is achieved in the new IXFs series mounts through the use of Siskiyou's monolithic flexure construction in which the entire mount - both plates and springs - are fabricated from a single piece of metal. This unique configuration yields improved heat transfer through the mount over the traditional kinematic construction resulting in significantly better pointing stability in the presence of temperature changes. And limiting the mount to a single axis of adjustment simplifies its construction thus reducing cost.

IXFs single axis mounts are currently available for optics in the 0.50" to 2.0" (12.7mm to 50.8mm) diameter range. A variety of mounting configurations are available including bulkhead placement with either front or rear (through the bulkhead) adjustment options making the mounts particularly useful for space constrained applications. IXFs mounts are also compatible with the Siskiyou IXFc Optic Clip which enables components to be retained with no mechanical distortion.

IXF series mounts are available in both stainless steel and aluminum versions. Stainless steel construction offers superior mechanical and thermal stability while aluminum confers lower weight and vacuum compatibility. The mount's use in vacuum applications is further enhanced because monolithic construction utilizes no "blind holes" or other places in the mount in which gas or volatiles can be trapped thus eliminating the potential for outgassing.

Product Features:

• Lockable 100TPI adjustment screws
• One-piece construction
• UV and Vacuum compatible versions available
• RoHS compliant

Performance Specifications:

• Adjustment range(pitch): 5.0°(±2.5°)
• Minimum controllable motion*: 4.5 arc sec.

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

This series of OEM single axis optical mounts from Siskiyou Corporation offer exceptional stability at a low price point. This performance is achieved in the new IXFs series mounts through the use of Siskiyou's monolithic flexure construction in which the entire mount - both plates and springs - are fabricated from a single piece of metal. This unique configuration yields improved heat transfer through the mount over the traditional kinematic construction resulting in significantly better pointing stability in the presence of temperature changes. And limiting the mount to a single axis of adjustment simplifies its construction thus reducing cost.

IXFs single axis mounts are currently available for optics in the 0.50" to 2.0" (12.7mm to 50.8mm) diameter range. A variety of mounting configurations are available including bulkhead placement with either front or rear (through the bulkhead) adjustment options making the mounts particularly useful for space constrained applications. IXFs mounts are also compatible with the Siskiyou IXFc Optic Clip which enables components to be retained with no mechanical distortion.

IXF series mounts are available in both stainless steel and aluminum versions. Stainless steel construction offers superior mechanical and thermal stability while aluminum confers lower weight and vacuum compatibility. The mount's use in vacuum applications is further enhanced because monolithic construction utilizes no "blind holes" or other places in the mount in which gas or volatiles can be trapped thus eliminating the potential for outgassing.

Product Features:

• Lockable 100TPI adjustment screws
• One-piece construction
• UV and Vacuum compatible versions available
• RoHS compliant

Performance Specifications:

• Adjustment range(pitch): 5.0°(±2.5°)
• Minimum controllable motion*: 4.5 arc sec.

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

This series of OEM single axis optical mounts from Siskiyou Corporation offer exceptional stability at a low price point. This performance is achieved in the new IXFs series mounts through the use of Siskiyou's monolithic flexure construction in which the entire mount - both plates and springs - are fabricated from a single piece of metal. This unique configuration yields improved heat transfer through the mount over the traditional kinematic construction resulting in significantly better pointing stability in the presence of temperature changes. And limiting the mount to a single axis of adjustment simplifies its construction thus reducing cost.

IXFs single axis mounts are currently available for optics in the 0.50" to 2.0" (12.7mm to 50.8mm) diameter range. A variety of mounting configurations are available including bulkhead placement with either front or rear (through the bulkhead) adjustment options making the mounts particularly useful for space constrained applications. IXFs mounts are also compatible with the Siskiyou IXFc Optic Clip which enables components to be retained with no mechanical distortion.

IXF series mounts are available in both stainless steel and aluminum versions. Stainless steel construction offers superior mechanical and thermal stability while aluminum confers lower weight and vacuum compatibility. The mount's use in vacuum applications is further enhanced because monolithic construction utilizes no "blind holes" or other places in the mount in which gas or volatiles can be trapped thus eliminating the potential for outgassing.

Product Features:

• Lockable 100TPI adjustment screws
• One-piece construction
• UV and Vacuum compatible versions available
• RoHS compliant

Performance Specifications:

• Adjustment range(pitch): 5.0°(±2.5°)
• Minimum controllable motion*: 4.5 arc sec.

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

This series of OEM single axis optical mounts from Siskiyou Corporation offer exceptional stability at a low price point. This performance is achieved in the new IXFs series mounts through the use of Siskiyou's monolithic flexure construction in which the entire mount - both plates and springs - are fabricated from a single piece of metal. This unique configuration yields improved heat transfer through the mount over the traditional kinematic construction resulting in significantly better pointing stability in the presence of temperature changes. And limiting the mount to a single axis of adjustment simplifies its construction thus reducing cost.

IXFs single axis mounts are currently available for optics in the 0.50" to 2.0" (12.7mm to 50.8mm) diameter range. A variety of mounting configurations are available including bulkhead placement with either front or rear (through the bulkhead) adjustment options making the mounts particularly useful for space constrained applications. IXFs mounts are also compatible with the Siskiyou IXFc Optic Clip which enables components to be retained with no mechanical distortion.

IXF series mounts are available in both stainless steel and aluminum versions. Stainless steel construction offers superior mechanical and thermal stability while aluminum confers lower weight and vacuum compatibility. The mount's use in vacuum applications is further enhanced because monolithic construction utilizes no "blind holes" or other places in the mount in which gas or volatiles can be trapped thus eliminating the potential for outgassing.

Product Features:

• Lockable 100TPI adjustment screws
• One-piece construction
• UV and Vacuum compatible versions available
• RoHS compliant

Performance Specifications:

• Adjustment range(pitch): 5.0°(±2.5°)
• Minimum controllable motion*: 4.5 arc sec.

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

This series of OEM single axis optical mounts from Siskiyou Corporation offer exceptional stability at a low price point. This performance is achieved in the new IXFs series mounts through the use of Siskiyou's monolithic flexure construction in which the entire mount - both plates and springs - are fabricated from a single piece of metal. This unique configuration yields improved heat transfer through the mount over the traditional kinematic construction resulting in significantly better pointing stability in the presence of temperature changes. And limiting the mount to a single axis of adjustment simplifies its construction thus reducing cost.

IXFs single axis mounts are currently available for optics in the 0.50" to 2.0" (12.7mm to 50.8mm) diameter range. A variety of mounting configurations are available including bulkhead placement with either front or rear (through the bulkhead) adjustment options making the mounts particularly useful for space constrained applications. IXFs mounts are also compatible with the Siskiyou IXFc Optic Clip which enables components to be retained with no mechanical distortion.

IXF series mounts are available in both stainless steel and aluminum versions. Stainless steel construction offers superior mechanical and thermal stability while aluminum confers lower weight and vacuum compatibility. The mount's use in vacuum applications is further enhanced because monolithic construction utilizes no "blind holes" or other places in the mount in which gas or volatiles can be trapped thus eliminating the potential for outgassing.

Product Features:

• Lockable 100TPI adjustment screws
• One-piece construction
• UV and Vacuum compatible versions available
• RoHS compliant

Performance Specifications:

• Adjustment range(pitch): 5.0°(±2.5°)
• Minimum controllable motion*: 2.4 arc sec.

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

This series of OEM single axis optical mounts from Siskiyou Corporation offer exceptional stability at a low price point. This performance is achieved in the new IXFs series mounts through the use of Siskiyou's monolithic flexure construction in which the entire mount - both plates and springs - are fabricated from a single piece of metal. This unique configuration yields improved heat transfer through the mount over the traditional kinematic construction resulting in significantly better pointing stability in the presence of temperature changes. And limiting the mount to a single axis of adjustment simplifies its construction thus reducing cost.

IXFs single axis mounts are currently available for optics in the 0.50" to 2.0" (12.7mm to 50.8mm) diameter range. A variety of mounting configurations are available including bulkhead placement with either front or rear (through the bulkhead) adjustment options making the mounts particularly useful for space constrained applications. IXFs mounts are also compatible with the Siskiyou IXFc Optic Clip which enables components to be retained with no mechanical distortion.

IXF series mounts are available in both stainless steel and aluminum versions. Stainless steel construction offers superior mechanical and thermal stability while aluminum confers lower weight and vacuum compatibility. The mount's use in vacuum applications is further enhanced because monolithic construction utilizes no "blind holes" or other places in the mount in which gas or volatiles can be trapped thus eliminating the potential for outgassing.

Product Features:

• Lockable 100TPI adjustment screws
• One-piece construction
• UV and Vacuum compatible versions available
• RoHS compliant

Performance Specifications:

• Adjustment range(pitch): 5.0°(±2.5°)
• Minimum controllable motion*: 2.4 arc sec.

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

This series of OEM single axis optical mounts from Siskiyou Corporation offer exceptional stability at a low price point. This performance is achieved in the new IXFs series mounts through the use of Siskiyou's monolithic flexure construction in which the entire mount - both plates and springs - are fabricated from a single piece of metal. This unique configuration yields improved heat transfer through the mount over the traditional kinematic construction resulting in significantly better pointing stability in the presence of temperature changes. And limiting the mount to a single axis of adjustment simplifies its construction thus reducing cost.

IXFs single axis mounts are currently available for optics in the 0.50" to 2.0" (12.7mm to 50.8mm) diameter range. A variety of mounting configurations are available including bulkhead placement with either front or rear (through the bulkhead) adjustment options making the mounts particularly useful for space constrained applications. IXFs mounts are also compatible with the Siskiyou IXFc Optic Clip which enables components to be retained with no mechanical distortion.

IXF series mounts are available in both stainless steel and aluminum versions. Stainless steel construction offers superior mechanical and thermal stability while aluminum confers lower weight and vacuum compatibility. The mount's use in vacuum applications is further enhanced because monolithic construction utilizes no "blind holes" or other places in the mount in which gas or volatiles can be trapped thus eliminating the potential for outgassing.

Product Features:

• Lockable 100TPI adjustment screws
• One-piece construction
• UV and Vacuum compatible versions available
• RoHS compliant

Performance Specifications:

• Adjustment range(pitch): 5.0°(±2.5°)
• Minimum controllable motion*: 2.4 arc sec.

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

This series of OEM single axis optical mounts from Siskiyou Corporation offer exceptional stability at a low price point. This performance is achieved in the new IXFs series mounts through the use of Siskiyou's monolithic flexure construction in which the entire mount - both plates and springs - are fabricated from a single piece of metal. This unique configuration yields improved heat transfer through the mount over the traditional kinematic construction resulting in significantly better pointing stability in the presence of temperature changes. And limiting the mount to a single axis of adjustment simplifies its construction thus reducing cost.

IXFs single axis mounts are currently available for optics in the 0.50" to 2.0" (12.7mm to 50.8mm) diameter range. A variety of mounting configurations are available including bulkhead placement with either front or rear (through the bulkhead) adjustment options making the mounts particularly useful for space constrained applications. IXFs mounts are also compatible with the Siskiyou IXFc Optic Clip which enables components to be retained with no mechanical distortion.

IXF series mounts are available in both stainless steel and aluminum versions. Stainless steel construction offers superior mechanical and thermal stability while aluminum confers lower weight and vacuum compatibility. The mount's use in vacuum applications is further enhanced because monolithic construction utilizes no "blind holes" or other places in the mount in which gas or volatiles can be trapped thus eliminating the potential for outgassing.

Product Features:

• Lockable 100TPI adjustment screws
• One-piece construction
• UV and Vacuum compatible versions available
• RoHS compliant

Performance Specifications:

• Adjustment range(pitch): 5.0°(±2.5°)
• Minimum controllable motion*: 2.4 arc sec.

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

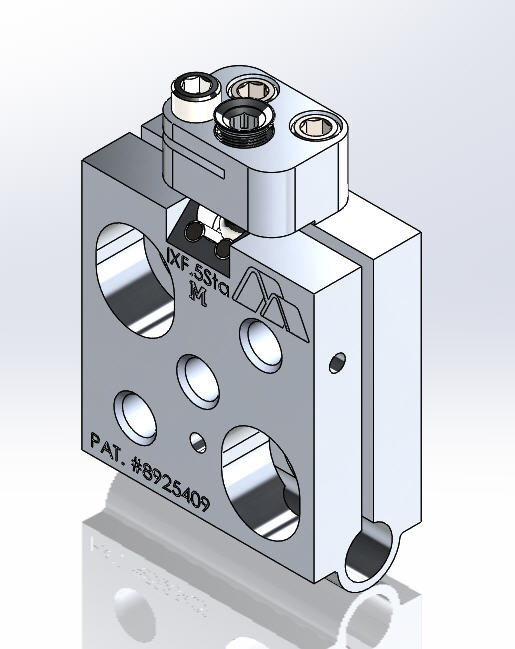

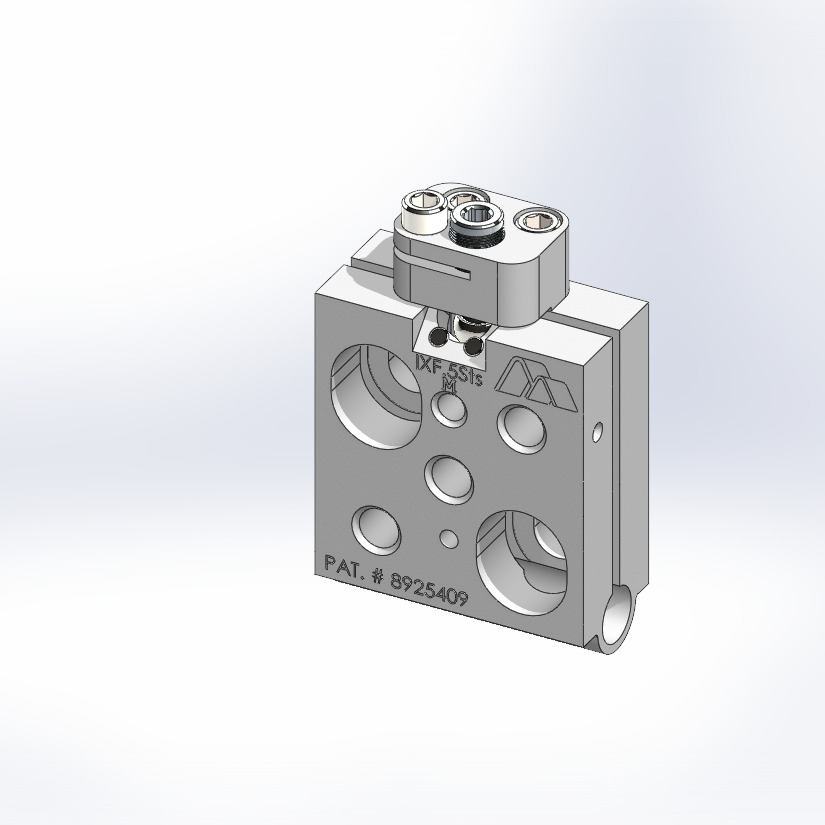

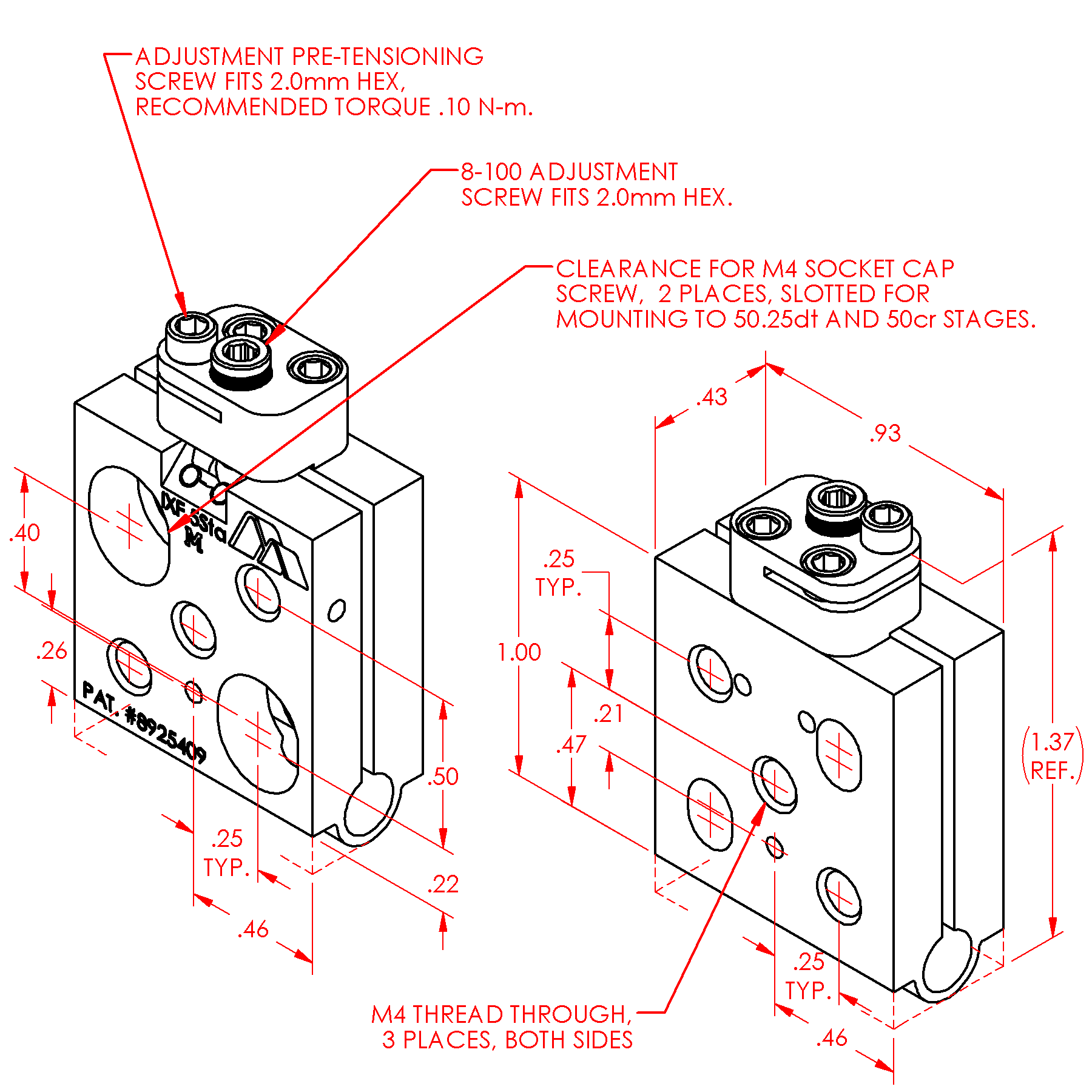

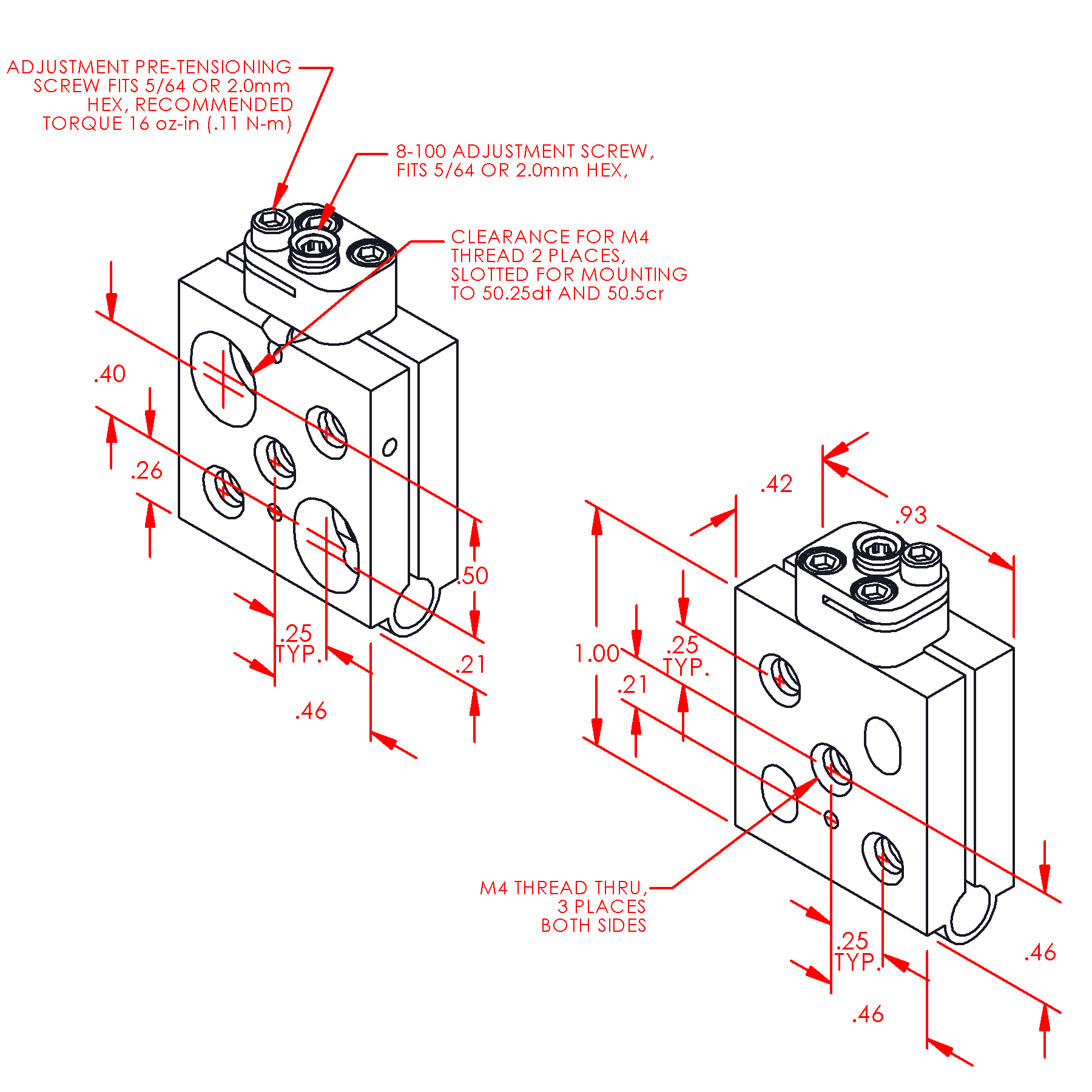

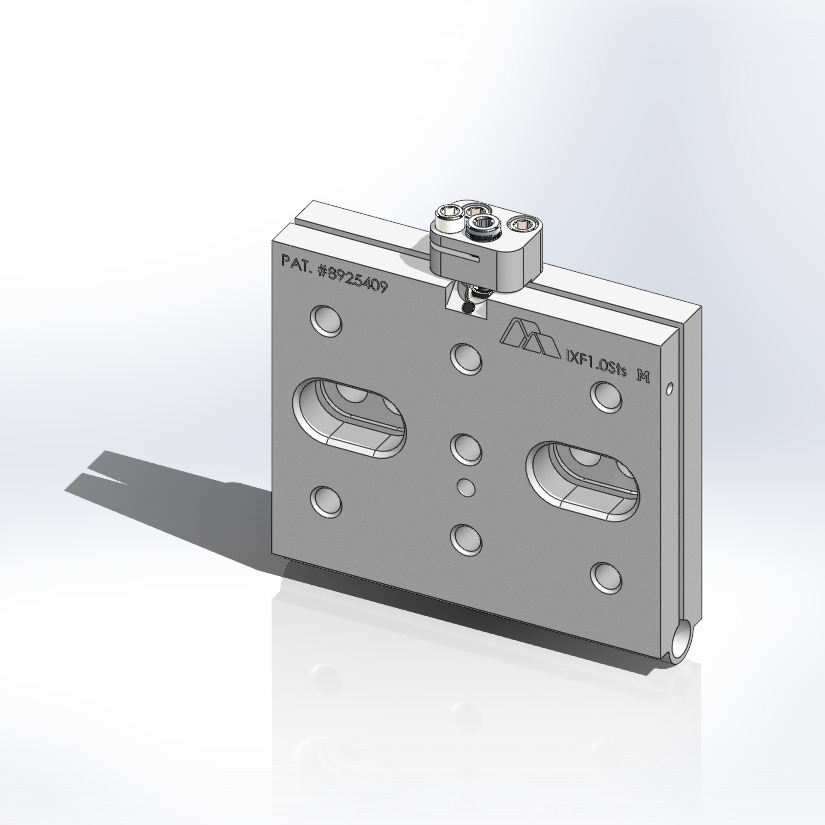

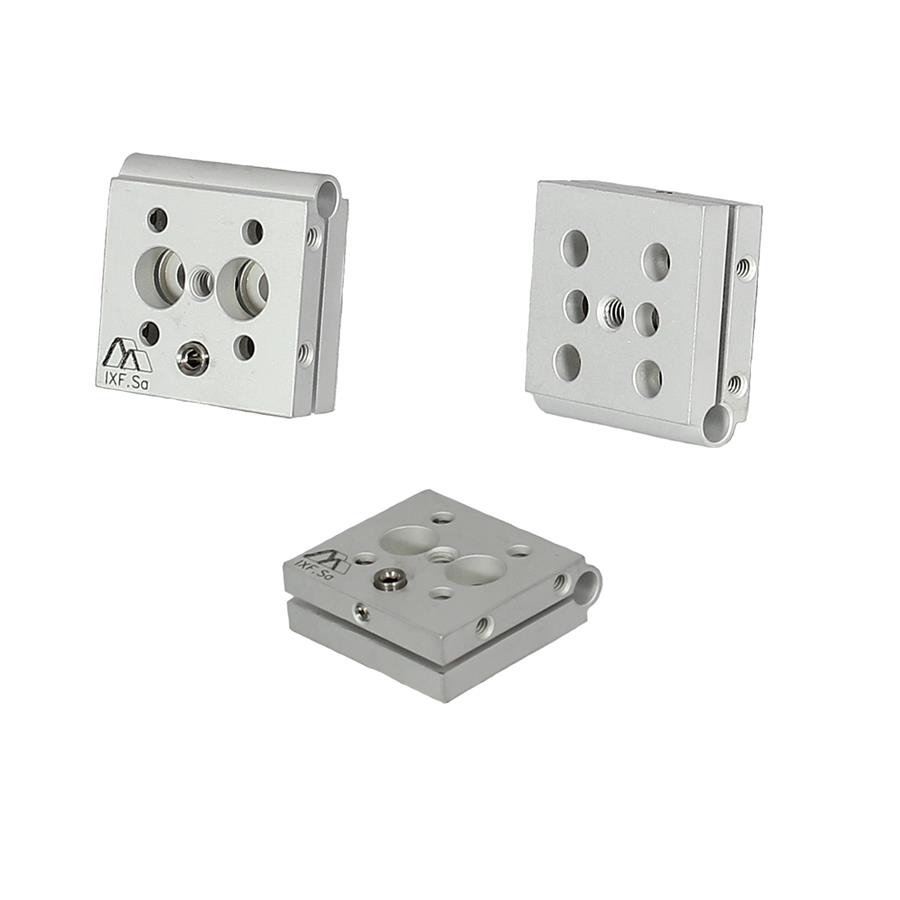

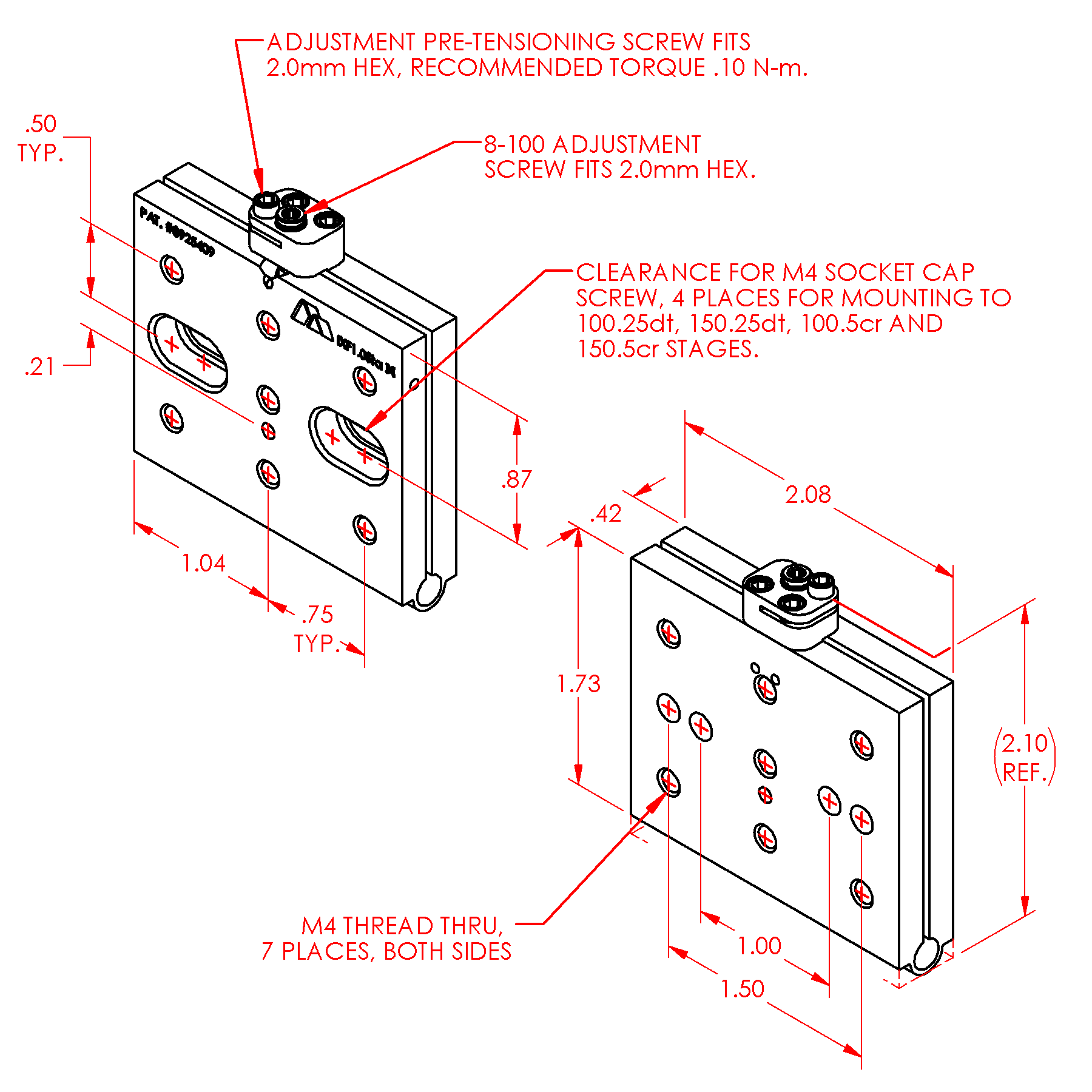

The IXF.S single-axis flexure is designed with the same features as our popular IXFss and IXFa series flexure mounts. We have split the two-axis design into a modular design that is useful where only one-axis for tilt is required. The base of the IXF.S has a single 8-32 (M4) tapped hole for mounting as well as one on the top for attachment. Also included are two counterbored holes that can be accessed from the top for mounting to our .25dt dovetail and .5cr crossed roller stages for added coarse alignment. On the edge of this mount are 4-40 tapped holes that correspond with clearance counterbores that are accessed from the bottom.

IXF series mounts are available in both stainless steel and aluminum versions. Stainless steel construction offers superior mechanical and thermal stability while aluminum confers lower weight and vacuum compatibility. The mount's use in vacuum applications is further enhanced because monolithic construction utilizes no "blind holes" or other places in the mount in which gas or volatiles can be trapped thus eliminating the potential for outgassing.

Product Features:

• Modular design
• Aluminum construction
• 100TPI lockable adjustment screw
• Top-adjust for easy access to adjustments
• Monolithic construction
• Vacuum and UV compatible
• RoHS compliant

Performance Specifications:

• Adjustment range: 2°
• Minimum controllable motion*: 3.3 arc sec.

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

The IXF.S single-axis flexure is designed with the same features as our popular IXFss and IXFa series flexure mounts. We have split the two-axis design into a modular design that is useful where only one-axis for tilt is required. The base of the IXF.S has a single 8-32 (M4) tapped hole for mounting as well as one on the top for attachment. Also included are two counterbored holes that can be accessed from the top for mounting to our .25dt dovetail and .5cr crossed roller stages for added coarse alignment. On the edge of this mount are 4-40 tapped holes that correspond with clearance counterbores that are accessed from the bottom.

IXF series mounts are available in both stainless steel and aluminum versions. Stainless steel construction offers superior mechanical and thermal stability while aluminum confers lower weight and vacuum compatibility. The mount's use in vacuum applications is further enhanced because monolithic construction utilizes no "blind holes" or other places in the mount in which gas or volatiles can be trapped thus eliminating the potential for outgassing.

Product Features:

• Modular design
• Aluminum construction
• 100TPI lockable adjustment screw
• Top-adjust for easy access to adjustments
• Monolithic construction
• Vacuum and UV compatible
• RoHS compliant

Performance Specifications:

• Adjustment range: 2
• Minimum controllable motion*: 3.3 arc sec.

*Minimum controllable motion*: BASED ON 1 OF ADJUSTMENT SCREW ROTATION

The IXF.S single-axis flexure is designed with the same features as our popular IXFss and IXFa series flexure mounts. We have split the two-axis design into a modular design that is useful where only one-axis for tilt is required. The base of the IXF.S has a single 8-32 (M4) tapped hole for mounting as well as one on the top for attachment. Also included are two counterbored holes that can be accessed from the top for mounting to our .25dt dovetail and .5cr crossed roller stages for added coarse alignment. On the edge of this mount are 4-40 tapped holes that correspond with clearance counterbores that are accessed from the bottom.

IXF series mounts are available in both stainless steel and aluminum versions. Stainless steel construction offers superior mechanical and thermal stability while aluminum confers lower weight and vacuum compatibility. The mount's use in vacuum applications is further enhanced because monolithic construction utilizes no "blind holes" or other places in the mount in which gas or volatiles can be trapped thus eliminating the potential for outgassing.

Product Features:

• Modular design
• Aluminum Construction
• 100TPI lockable adjustment screw
• Monolithic construction
• Vacuum and UV-compatible
• RoHS compliant

Performance Specifications:

• Adjustment range: 4.5°(±2.25°)
• Minimum controllable motion*: 6.0 arc sec.

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

The IXF.S single-axis flexure is designed with the same features as our popular IXFss and IXFa series flexure mounts. We have split the two-axis design into a modular design that is useful where only one-axis for tilt is required. The base of the IXF.S has a single 8-32 (M4) tapped hole for mounting as well as one on the top for attachment. Also included are two counterbored holes that can be accessed from the top for mounting to our .25dt dovetail and .5cr crossed roller stages for added coarse alignment. On the edge of this mount are 4-40 tapped holes that correspond with clearance counterbores that are accessed from the bottom.

IXF series mounts are available in both stainless steel and aluminum versions. Stainless steel construction offers superior mechanical and thermal stability while aluminum confers lower weight and vacuum compatibility. The mount's use in vacuum applications is further enhanced because monolithic construction utilizes no "blind holes" or other places in the mount in which gas or volatiles can be trapped thus eliminating the potential for outgassing.

Product Features:

• Modular design
• Aluminum Construction
• 100TPI lockable adjustment screw
• Monolithic construction
• Vacuum and UV-compatible
• RoHS compliant

Performance Specifications:

• Adjustment range: 4.5°(±2.25°)
• Minimum controllable motion*: 6.0 arc sec.

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

The IXF.S single-axis flexure is designed with the same features as our popular IXFss and IXFa series flexure mounts. We have split the two-axis design into a modular design that is useful where only one-axis for tilt is required. The base of the IXF.S has a single 8-32 (M4) tapped hole for mounting as well as one on the top for attachment. Also included are two counterbored holes that can be accessed from the top for mounting to our .25dt dovetail and .5cr crossed roller stages for added coarse alignment. On the edge of this mount are 4-40 tapped holes that correspond with clearance counterbores that are accessed from the bottom.

IXF series mounts are available in both stainless steel and aluminum versions. Stainless steel construction offers superior mechanical and thermal stability while aluminum confers lower weight and vacuum compatibility. The mount's use in vacuum applications is further enhanced because monolithic construction utilizes no "blind holes" or other places in the mount in which gas or volatiles can be trapped thus eliminating the potential for outgassing.

Product Features:

• Modular design
• Aluminum construction
• 100TPI lockable adjustment screw
• Top-adjust for easy access to adjustments
• Monolithic construction
• Vacuum and UV compatible
• RoHS compliant

Performance Specifications:

• Adjustment range: 4.5°(±2.25°)
• Minimum controllable motion*: 6.0 arc sec.

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

The IXF.S single-axis flexure is designed with the same features as our popular IXFss and IXFa series flexure mounts. We have split the two-axis design into a modular design that is useful where only one-axis for tilt is required. The base of the IXF.S has a single 8-32 (M4) tapped hole for mounting as well as one on the top for attachment. Also included are two counterbored holes that can be accessed from the top for mounting to our .25dt dovetail and .5cr crossed roller stages for added coarse alignment. On the edge of this mount are 4-40 tapped holes that correspond with clearance counterbores that are accessed from the bottom.

IXF series mounts are available in both stainless steel and aluminum versions. Stainless steel construction offers superior mechanical and thermal stability while aluminum confers lower weight and vacuum compatibility. The mount's use in vacuum applications is further enhanced because monolithic construction utilizes no "blind holes" or other places in the mount in which gas or volatiles can be trapped thus eliminating the potential for outgassing.

Product Features:

• Modular design
• Aluminum construction
• 100TPI lockable adjustment screw
• Top-adjust for easy access to adjustments
• Monolithic construction
• Vacuum and UV compatible
• RoHS compliant

Performance Specifications:

• Adjustment range: 4.5°(±2.25°)
• Minimum controllable motion*: 6.0 arc sec.

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION
