4-100 Series Adjustment Screw

0 review Write a Review
SKU: 4-100 ADJ SCREW
Name:
TRAVEL: 3MM/.125IN
TRAVEL: 6MM/.25IN
VOLUME: 0.000000
WEIGHT UOM: LB
﷼12.705

4-100 Series Adjustment Screw

﷼12.705
Choose Options

4-100 Series Adjustment Screw

﷼12.705

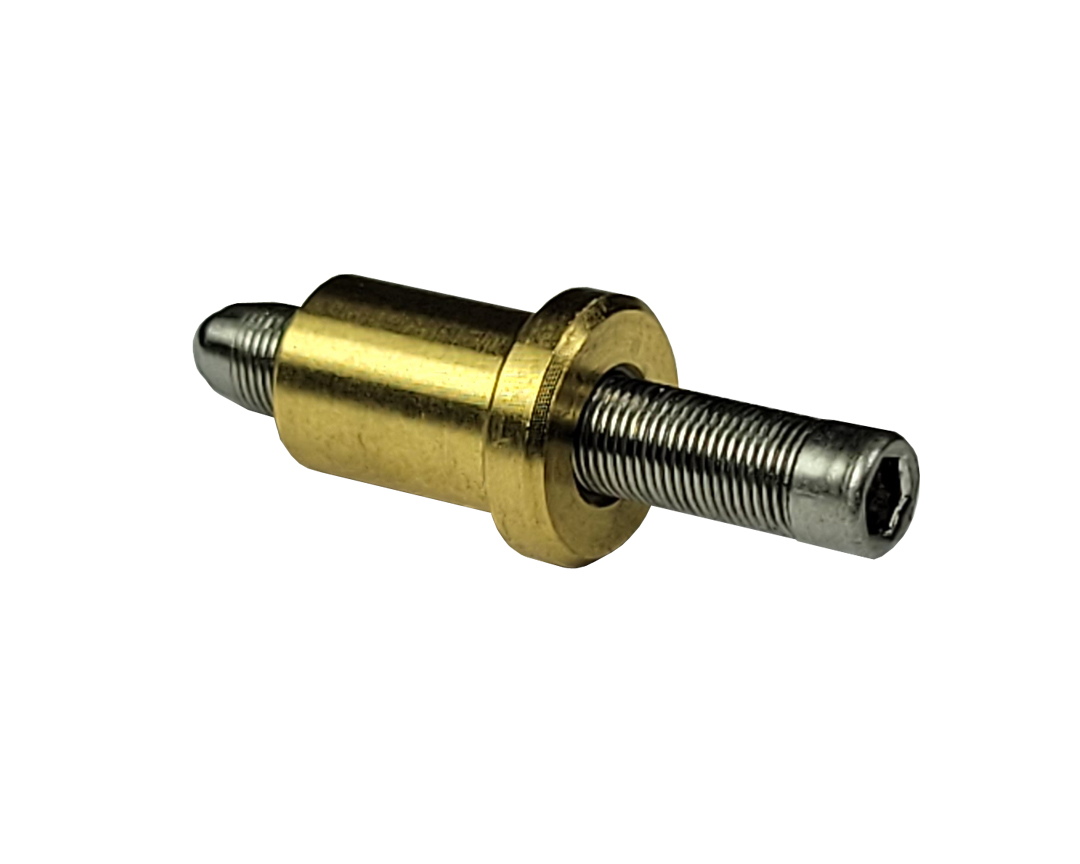

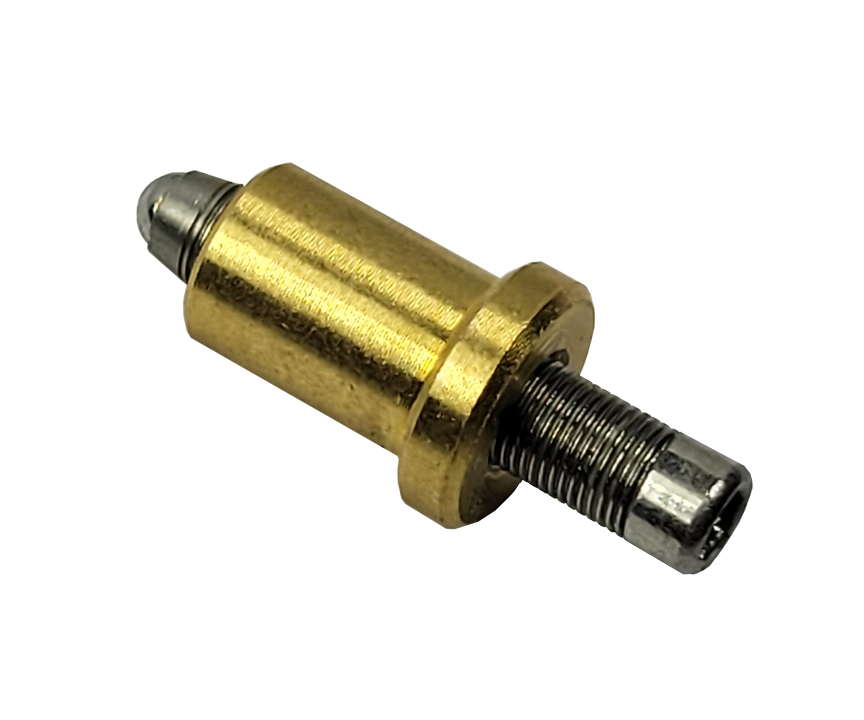

For precise adjustments in tight spaces, Siskiyou announces new #4-100 adjustment screws. They are supplied with a brass mounting body for ease of installation - just drill a 3/16" hole. Precision threads provide smooth adjustment, and the maximum thread engagement provides high load capacity. Stock travel lengths in .125" and .250", custom versions available upon request.

Product Features

  • 100 Threads/inch
  • HEX drive
  • Vacuum compatible versions available upon request

Performance Specifications

  • Travel per revolution 254 ¬µm/rev
  • Minimum controllable motion submicron
  • Maximum load 30 lbs


Choose options to see performance specifications and downloads.
