TPI Series Adjustment Screw

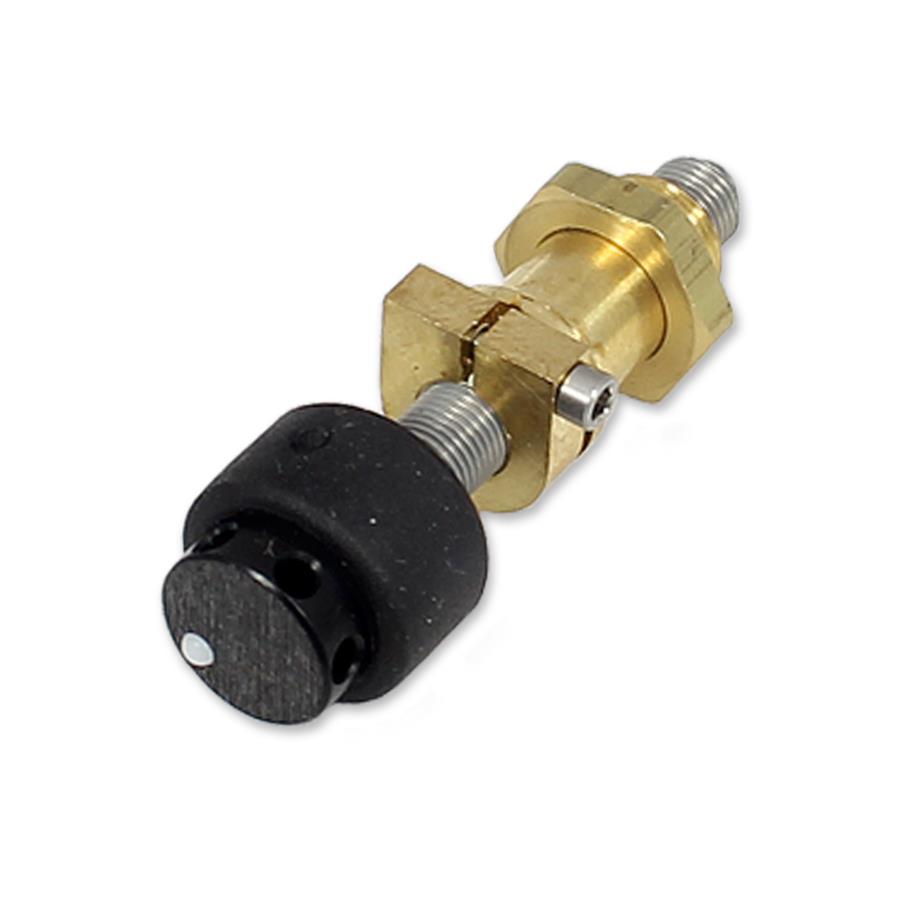

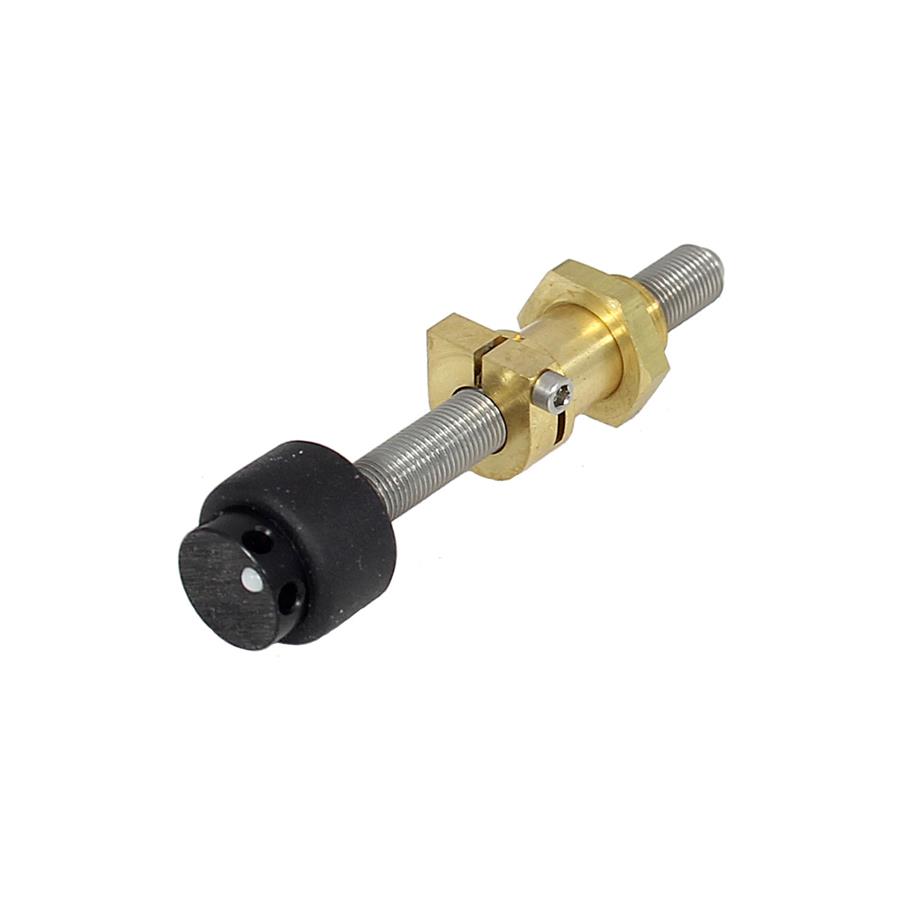

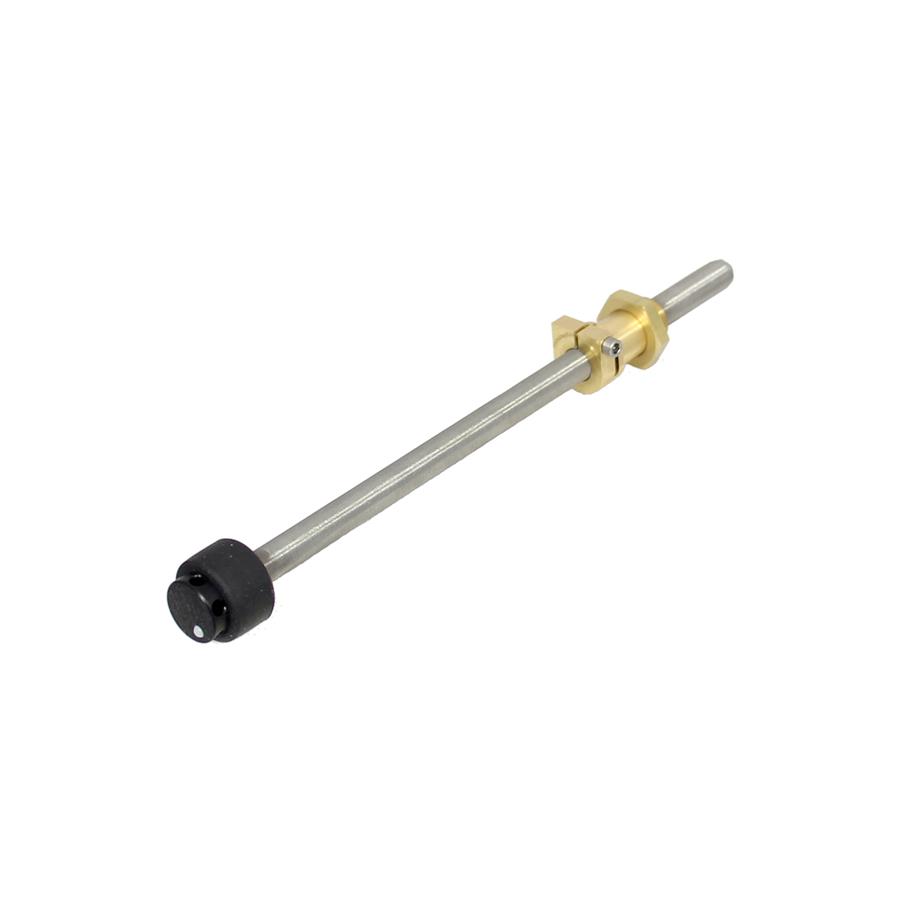

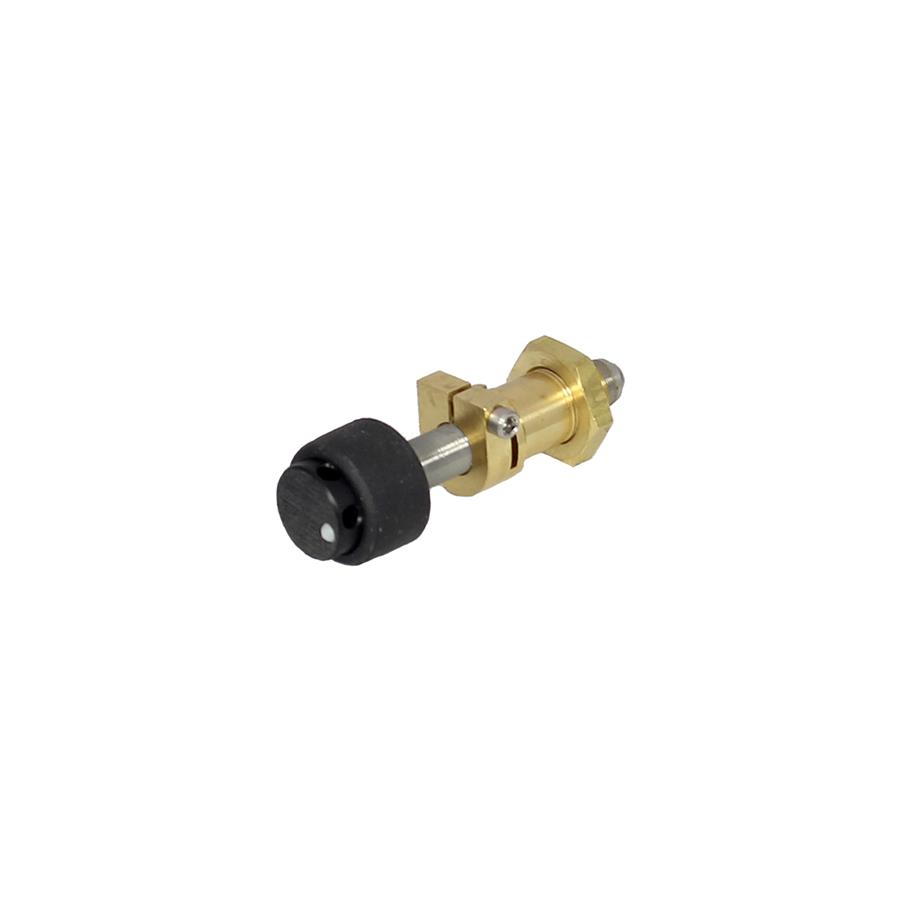

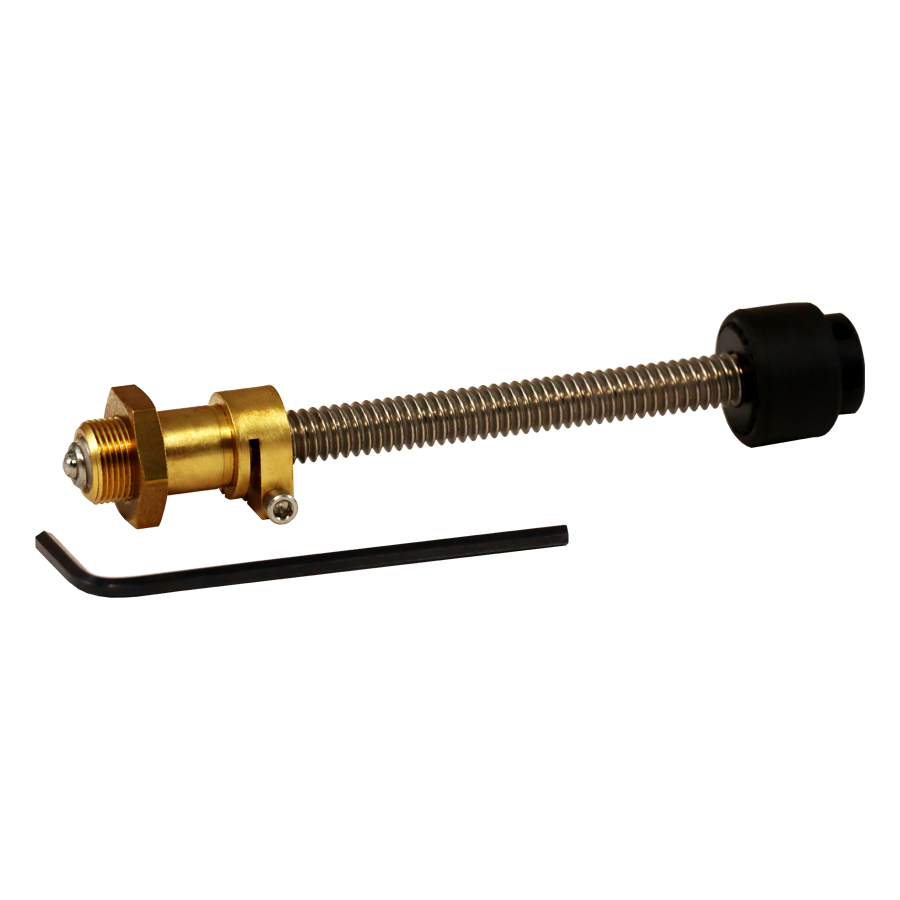

Siskiyou SoftTouch® TPI series adjustment screws are ideal for OEM and custom applications. They feature our single-wrench-size adjustment for capstan and hex drives and locking screw. The unique collet design incorporates a split-clamp mechanism used to preset adjustment screw tension as well as locking screw movement. If the location of the locking screw is not ideal it can be backed out and inserted from the opposite side.

Standard TPI adjustment screws are fitted with black SoftTouch® knob caps by default.

Product Features:

• 100 thread pitch
• Fits 3/8-inch collet diameter products
• Split-clamp lock
• SoftTouch® actuators
• Vacuum compatible versions available
• RoHS compliant

Performance Specifications:

• Travel: 254 µm/rev
• Minimum controllable motion*: 0.7 µm
• Axial load: 100lb

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

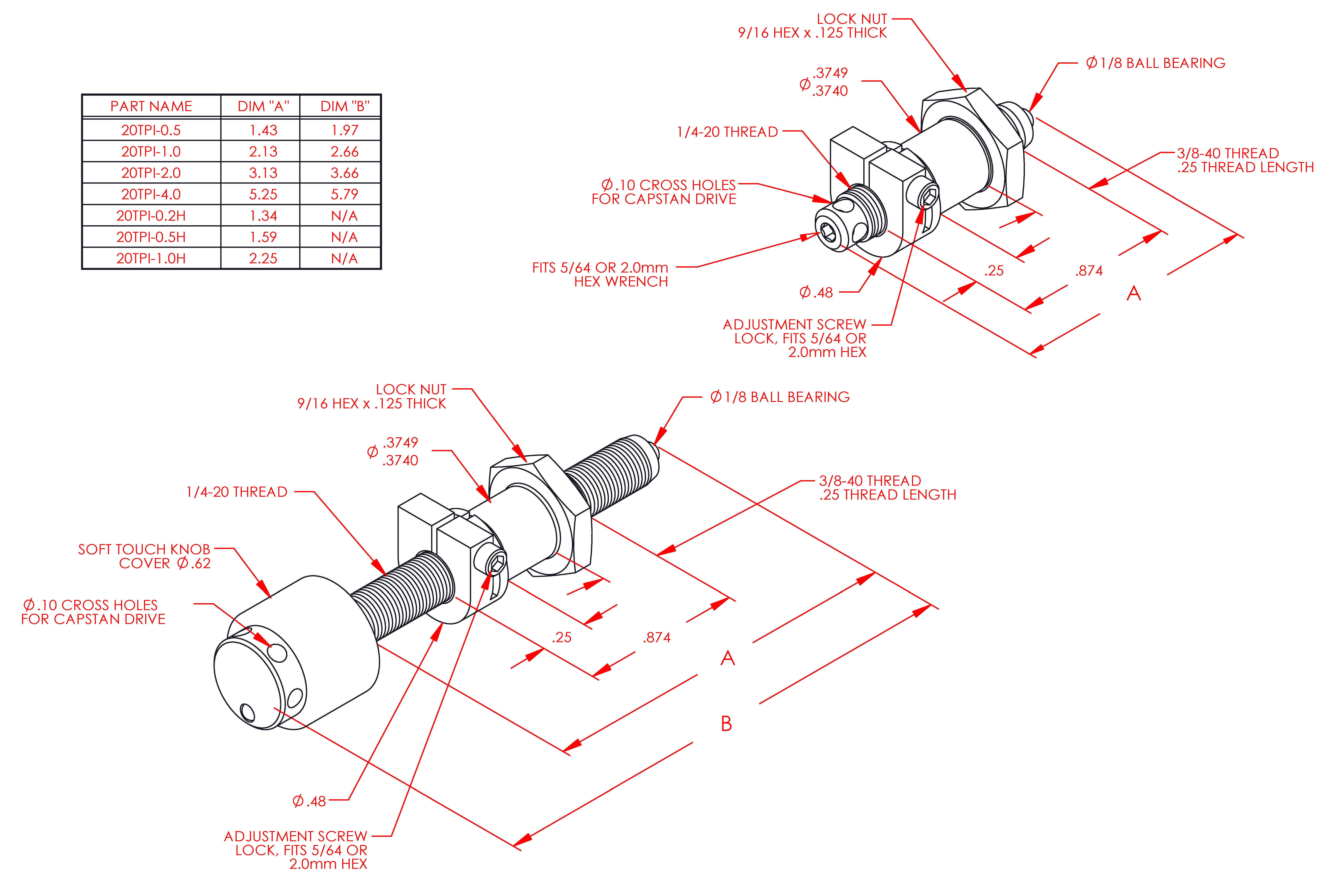

Siskiyou SoftTouch® TPI series adjustment screws are ideal for OEM and custom applications. They feature our single-wrench-size adjustment for capstan and hex drives and locking screw. The unique collet design incorporates a split-clamp mechanism used to preset adjustment screw tension as well as locking screw movement. If the location of the locking screw is not ideal it can be backed out and inserted from the opposite side.

Standard TPI adjustment screws are fitted with black SoftTouch® knob caps by default.

Product Features:

• 20 thread pitch
• Fits 3/8-inch collet diameter products
• Split-clamp lock
• SoftTouch® actuators
• Vacuum compatible versions available
• RoHS compliant

Performance Specifications:

• Travel: 1270 µm/rev
• Minimum controllable motion*: 3.5 µm
• Axial load: 100lb

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

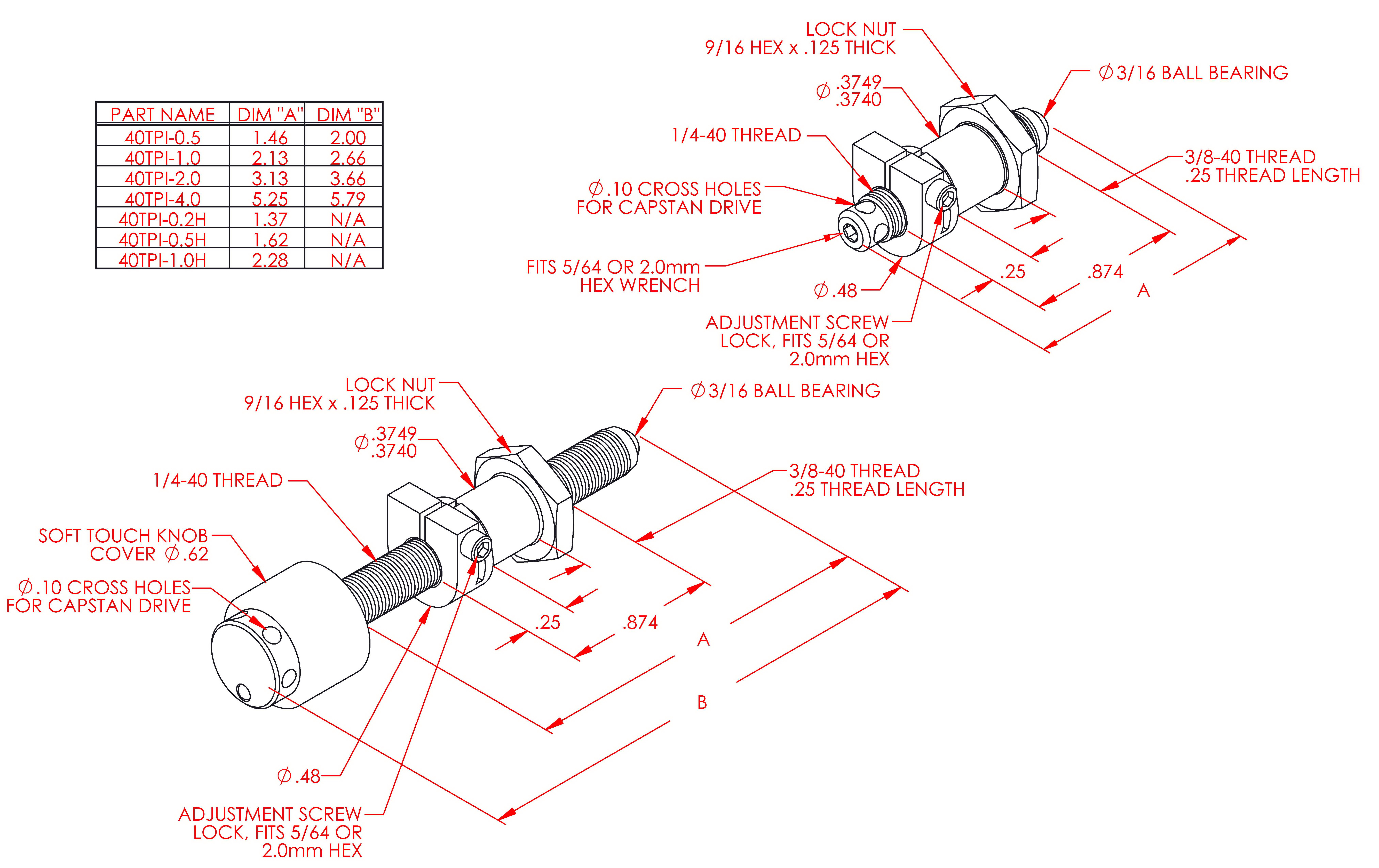

Siskiyou SoftTouch® TPI series adjustment screws are ideal for OEM and custom applications. They feature our single-wrench-size adjustment for capstan and hex drives and locking screw. The unique collet design incorporates a split-clamp mechanism used to preset adjustment screw tension as well as locking screw movement. If the location of the locking screw is not ideal it can be backed out and inserted from the opposite side.

Standard TPI adjustment screws are fitted with black SoftTouch® knob caps by default.

Product Features:

• 40 thread pitch
• Fits 3/8-inch collet diameter products
• Split-clamp lock
• SoftTouch® actuators
• Vacuum compatible versions available
• RoHS compliant

Performance Specifications:

• Travel: 635 µm/rev
• Minimum controllable motion*: 1.7 µm
• Axial load: 100lb

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

Siskiyou SoftTouch® TPI series adjustment screws are ideal for OEM and custom applications. They feature our single-wrench-size adjustment for capstan and hex drives and locking screw. The unique collet design incorporates a split-clamp mechanism used to preset adjustment screw tension as well as locking screw movement. If the location of the locking screw is not ideal it can be backed out and inserted from the opposite side.

Standard TPI adjustment screws are fitted with black SoftTouch® knob caps by default.

Product Features:

• 80 thread pitch
• Fits 3/8-inch collet diameter products
• Split-clamp lock
• SoftTouch® actuators
• Vacuum compatible versions available
• RoHS compliant

Performance Specifications:

• Travel: 318 µm/rev
• Minimum controllable motion*: 0.9 µm
• Axial load: 100lb

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

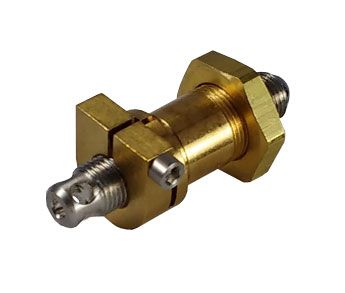

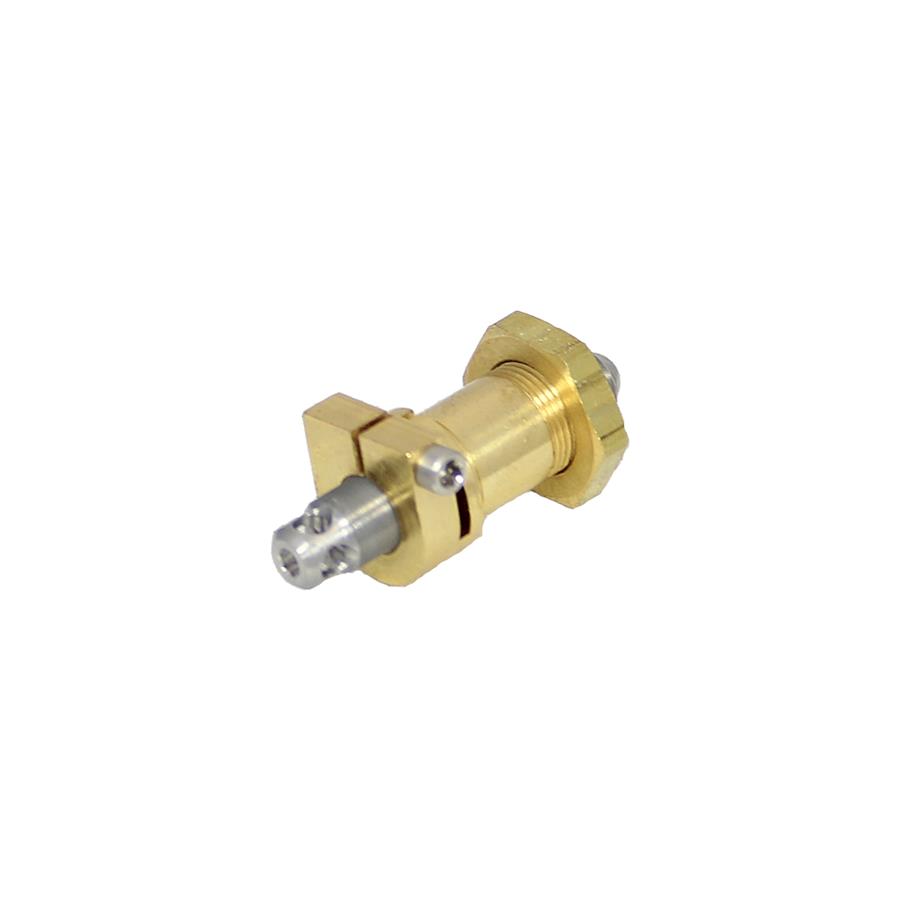

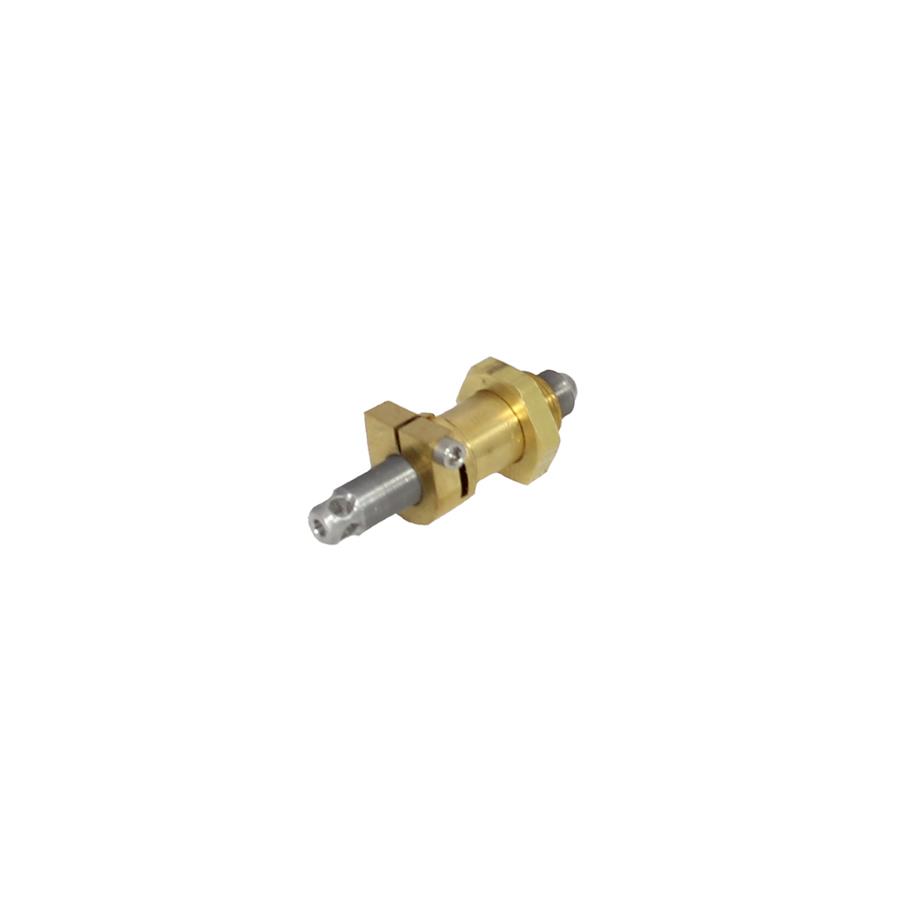

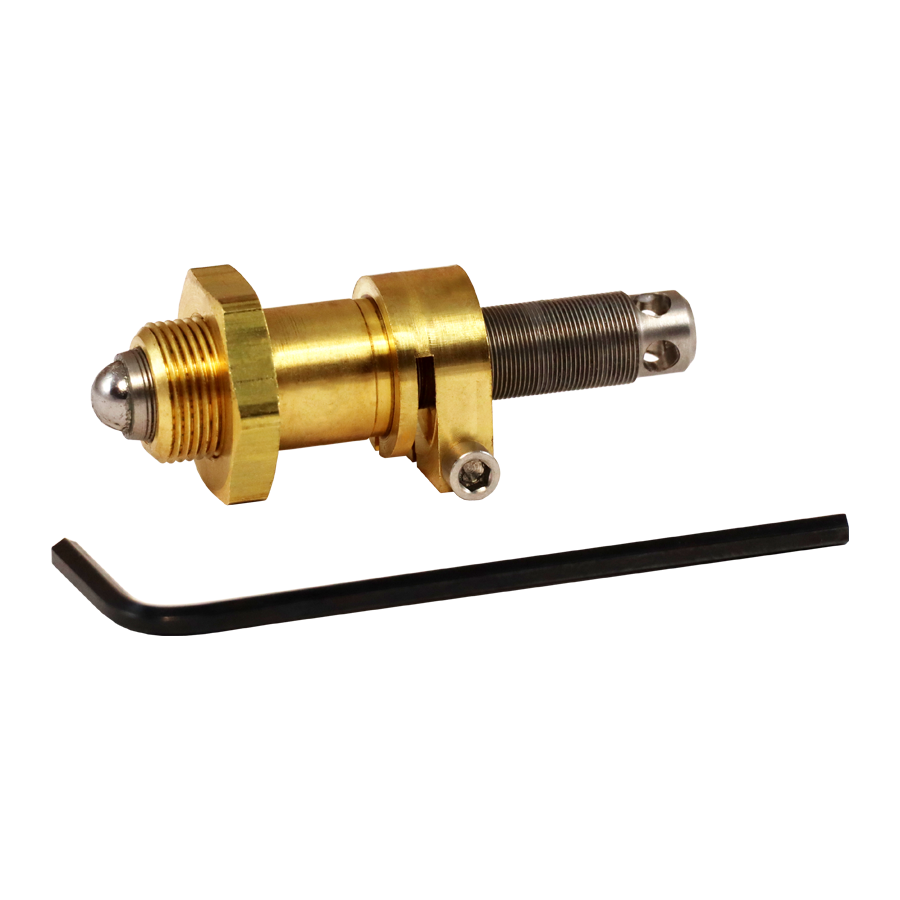

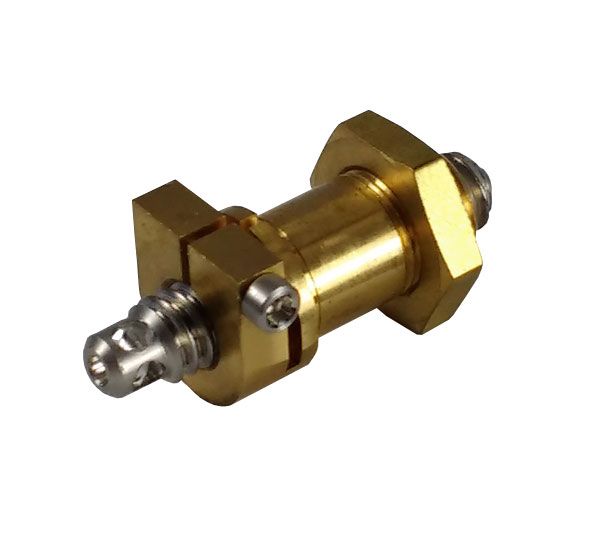

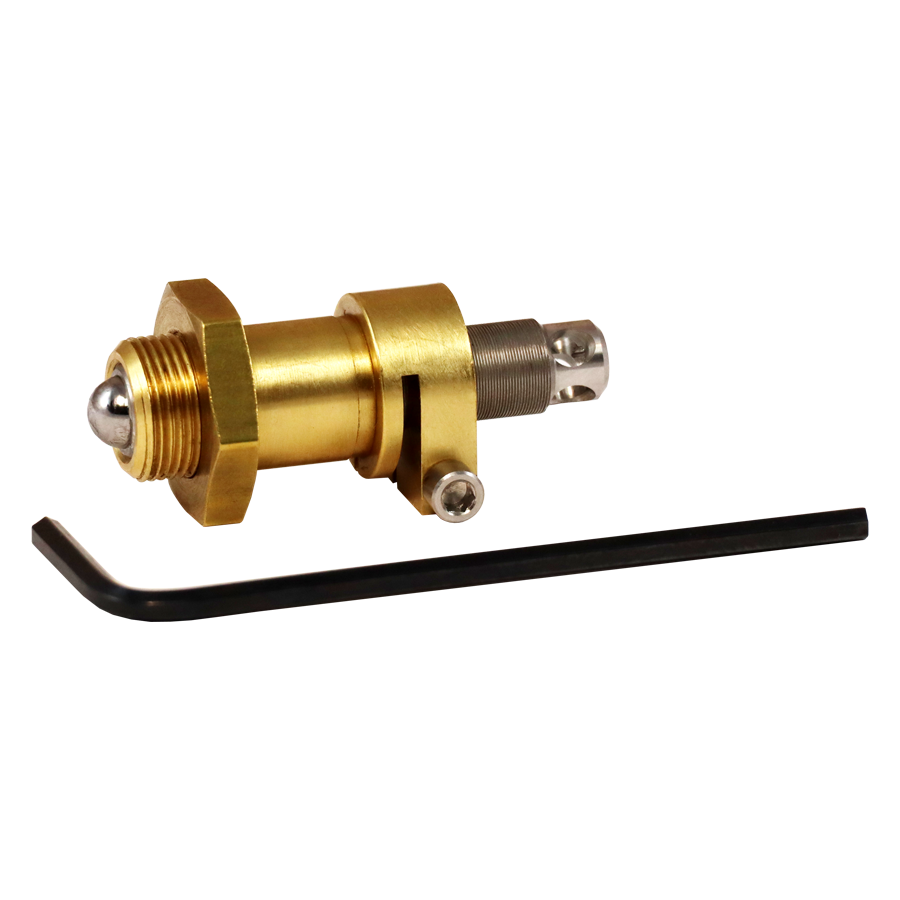

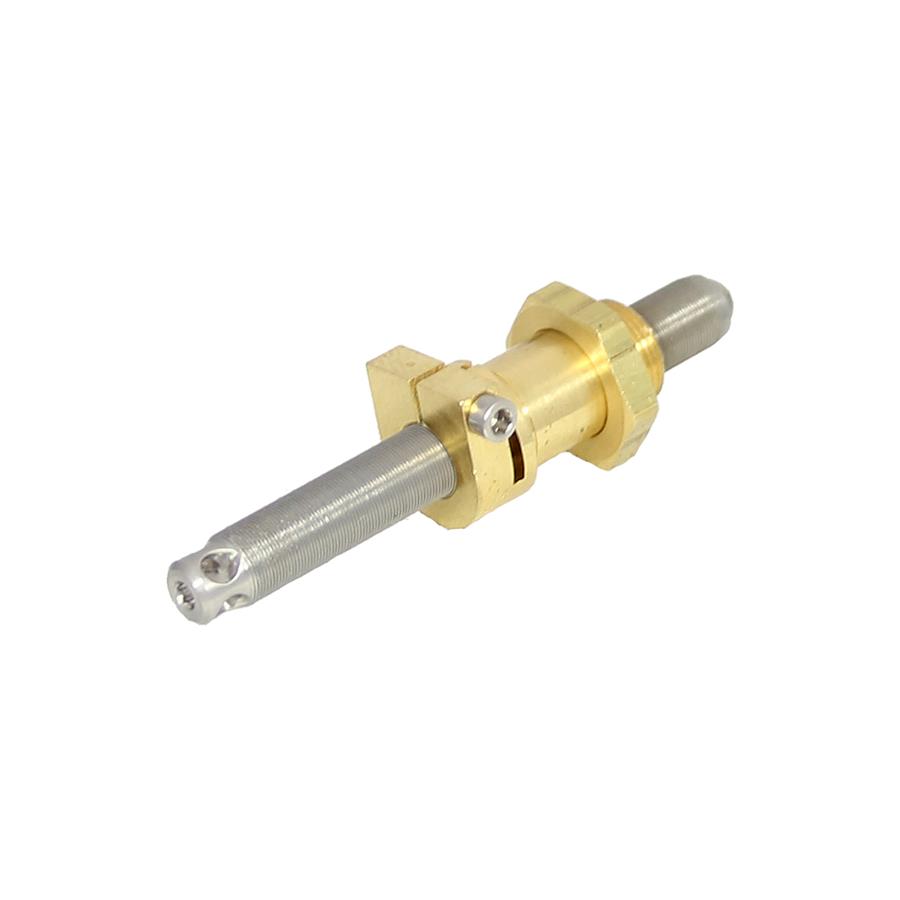

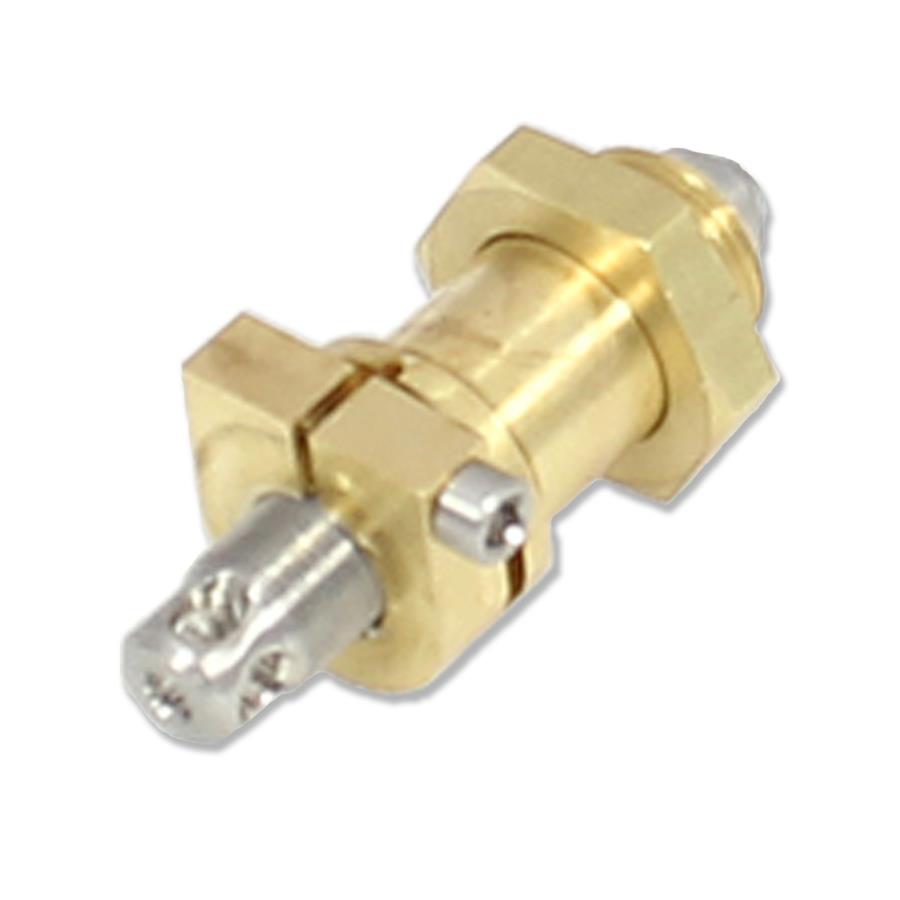

Siskiyou TPI series adjustment screws are ideal for OEM and custom applications. They feature our single-wrench-size adjustment for capstan and hex drives and locking screw. The unique collet design incorporates a split-clamp mechanism used to preset adjustment screw tension as well as locking screw movement. If the location of the locking screw is not ideal it can be backed out and inserted from the opposite side.

The tip of the adjustment screw has been machined to accept a hard ball bearing (64 Rockwell) that can rotate in the end of the screw. This feature minimizes the amount of rotational torque transferred from the adjustment screw to the translation stage.

Product Features:

• 100 threads pitch
• Fits 3/8-inch collet diameter products
• Integrated travel lock
• Hex drive actuator
• Vacuum compatible versions available
• RoHS compliant

Performance Specifications:

• Travel: 254 µm/rev
• Minimum controllable motion*: 0.7 µm
• Axial load: 100lb

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

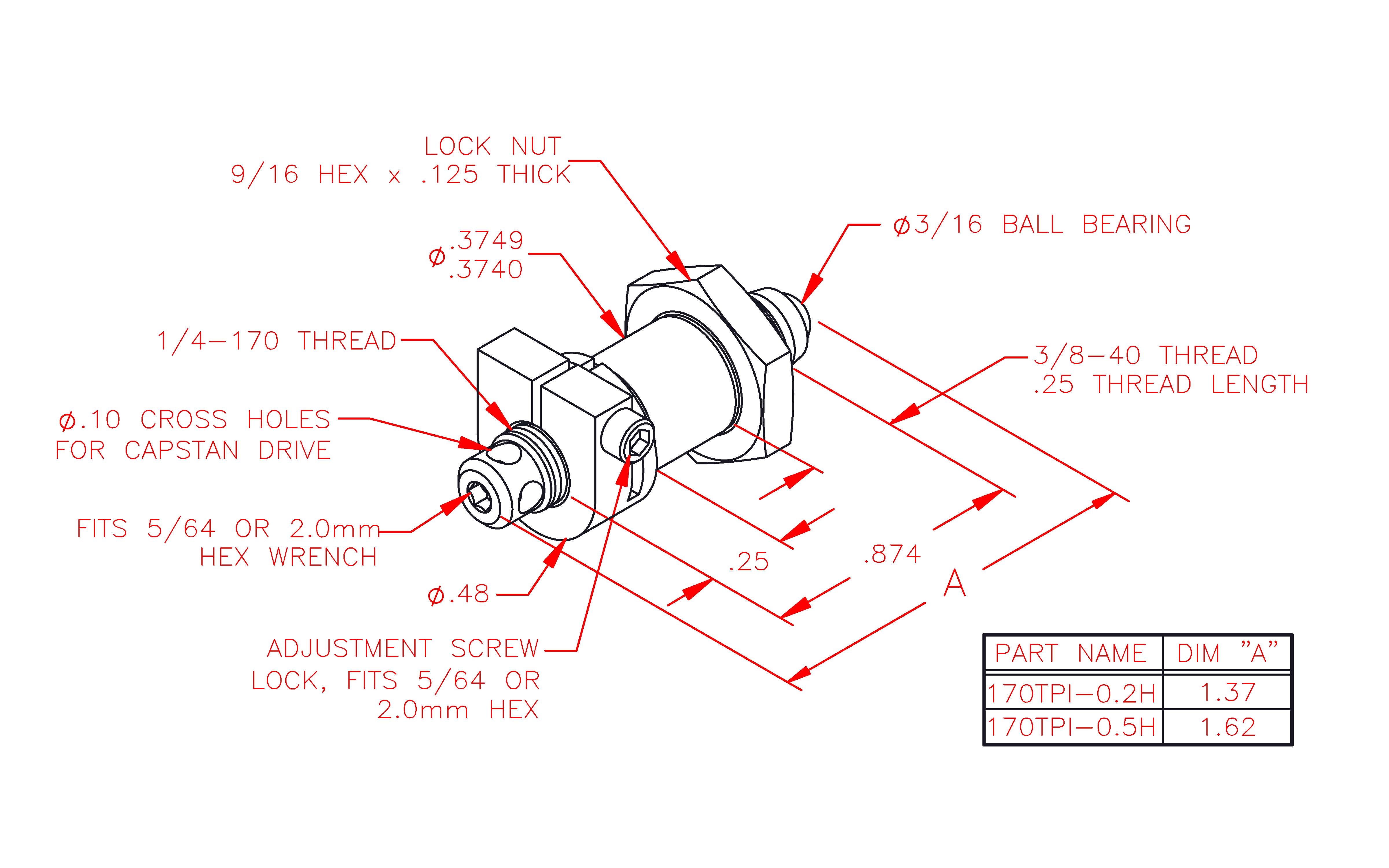

Siskiyou TPI series adjustment screws are ideal for OEM and custom applications. They feature our single-wrench-size adjustment for capstan and hex drives and locking screw. The unique collet design incorporates a split-clamp mechanism used to preset adjustment screw tension as well as locking screw movement. If the location of the locking screw is not ideal it can be backed out and inserted from the opposite side.

The tip of the adjustment screw has been machined to accept a hard ball bearing (64 Rockwell) that can rotate in the end of the screw. This feature minimizes the amount of rotational torque transferred from the adjustment screw to the translation stage.

Product Features:

• 170 threads pitch
• Fits 3/8-inch collet diameter products
• Integrated travel lock
• Hex drive actuator
• Vacuum compatible versions available
• RoHS compliant

Performance Specifications:

• Travel: 150 µm/rev
• Minimum controllable motion*: 0.4 µm
• Axial load: 50lb

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

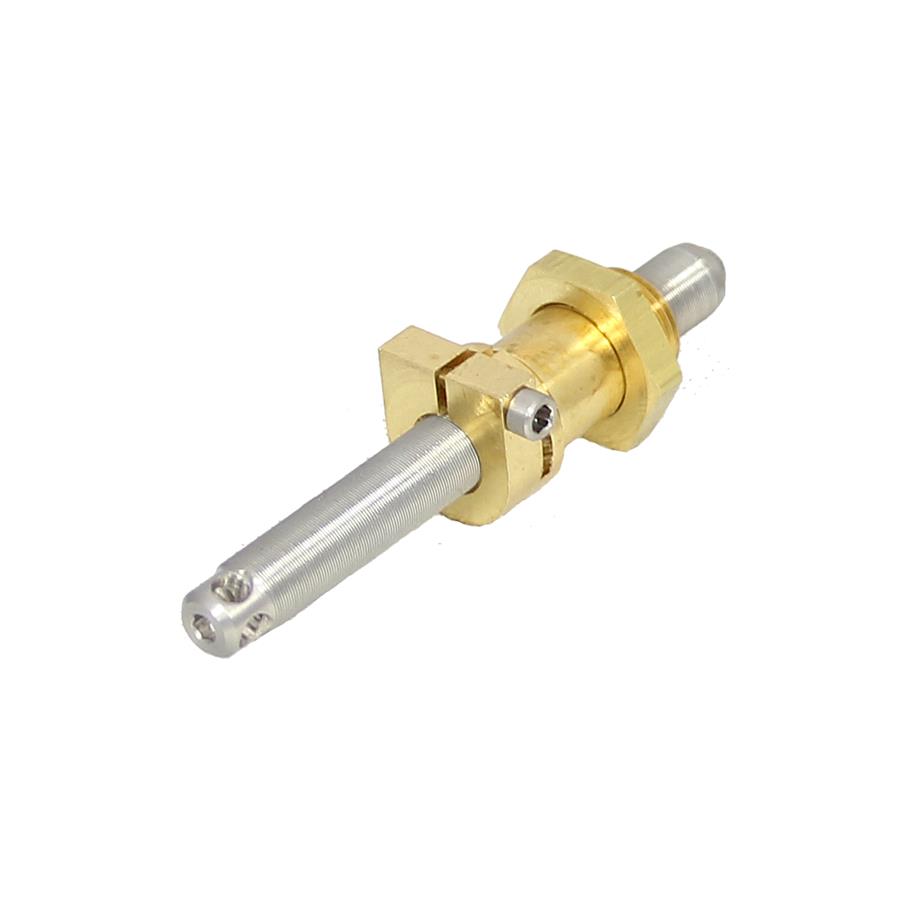

Siskiyou TPI series adjustment screws are ideal for OEM and custom applications. They feature our single-wrench-size adjustment for capstan and hex drives and locking screw. The unique collet design incorporates a split-clamp mechanism used to preset adjustment screw tension as well as locking screw movement. If the location of the locking screw is not ideal it can be backed out and inserted from the opposite side.

The tip of the adjustment screw has been machined to accept a hard ball bearing (64 Rockwell) that can rotate in the end of the screw. This feature minimizes the amount of rotational torque transferred from the adjustment screw to the translation stage.

Product Features:

• 20 threads pitch
• Fits 3/8-inch collet diameter products
• Integrated travel lock
• Hex drive actuator
• Vacuum compatible versions available
• RoHS compliant

Performance Specifications:

• Travel: 1270 µm/rev
• Minimum controllable motion*: 3.5 µm
• Axial load: 100lb

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

Siskiyou TPI series adjustment screws are ideal for OEM and custom applications. They feature our single-wrench-size adjustment for capstan and hex drives and locking screw. The unique collet design incorporates a split-clamp mechanism used to preset adjustment screw tension as well as locking screw movement. If the location of the locking screw is not ideal it can be backed out and inserted from the opposite side.

The tip of the adjustment screw has been machined to accept a hard ball bearing (64 Rockwell) that can rotate in the end of the screw. This feature minimizes the amount of rotational torque transferred from the adjustment screw to the translation stage.

Product Features:

• 40 thread pitch
• Fits 3/8-inch collet diameter products
• Integrated travel lock
• Hex drive actuator
• Vacuum compatible versions available
• RoHS compliant

Performance Specifications:

• Travel: 635 µm/rev
• Minimum controllable motion*: 1.8 µm
• Axial load: 100lb

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

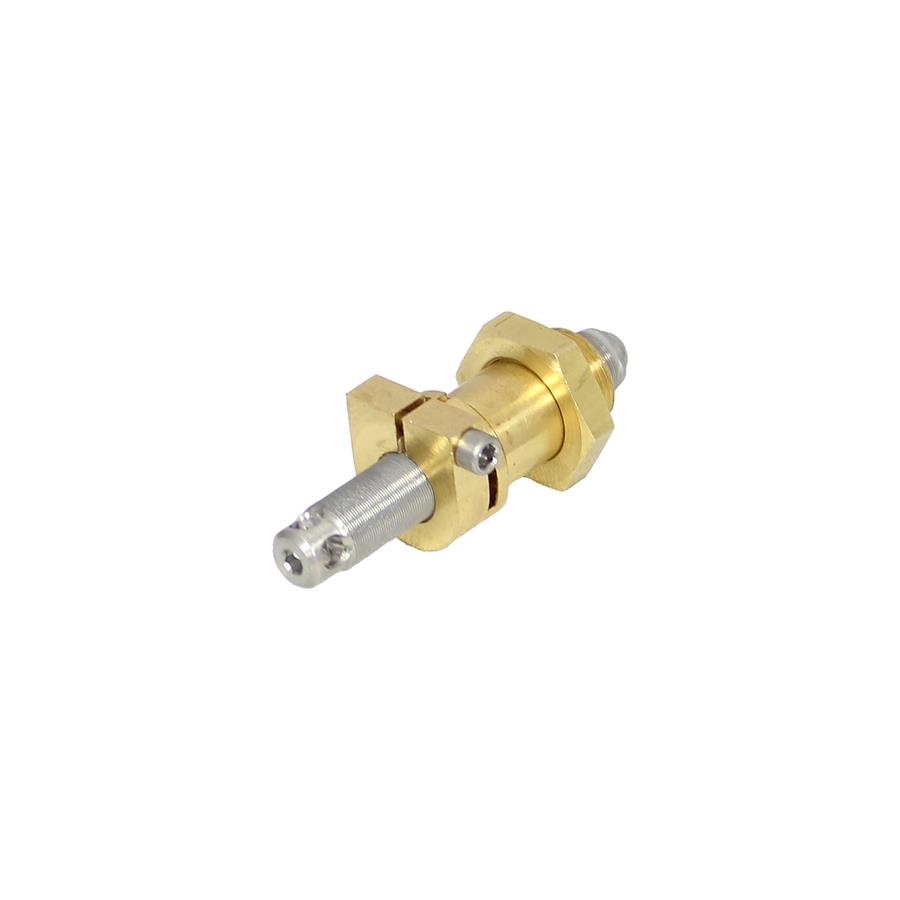

Siskiyou TPI series adjustment screws are ideal for OEM and custom applications. They feature our single-wrench-size adjustment for capstan and hex drives and locking screw. The unique collet design incorporates a split-clamp mechanism used to preset adjustment screw tension as well as locking screw movement. If the location of the locking screw is not ideal it can be backed out and inserted from the opposite side.

The tip of the adjustment screw has been machined to accept a hard ball bearing (64 Rockwell) that can rotate in the end of the screw. This feature minimizes the amount of rotational torque transferred from the adjustment screw to the translation stage.

Product Features:

• 80 threads pitch
• Fits 3/8-inch collet diameter products
• Integrated travel lock
• Hex drive actuator
• Vacuum compatible versions available
• RoHS compliant

Performance Specifications:

• Travel: 318 µm/rev
• Minimum controllable motion*: 0.9 µm
• Axial load: 100lb

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

Siskiyou SoftTouch® TPI series adjustment screws are ideal for OEM and custom applications. They feature our single-wrench-size adjustment for capstan and hex drives and locking screw. The unique collet design incorporates a split-clamp mechanism used to preset adjustment screw tension as well as locking screw movement. If the location of the locking screw is not ideal it can be backed out and inserted from the opposite side.

Standard TPI adjustment screws are fitted with black SoftTouch® knob caps by default.

Product Features:

• 100 thread pitch
• Fits 3/8-inch collet diameter products
• Split-clamp lock
• SoftTouch® actuators
• Vacuum compatible versions available
• RoHS compliant

Performance Specifications:

• Travel: 254 µm/rev
• Minimum controllable motion*: 0.7 µm
• Axial load: 100lb

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

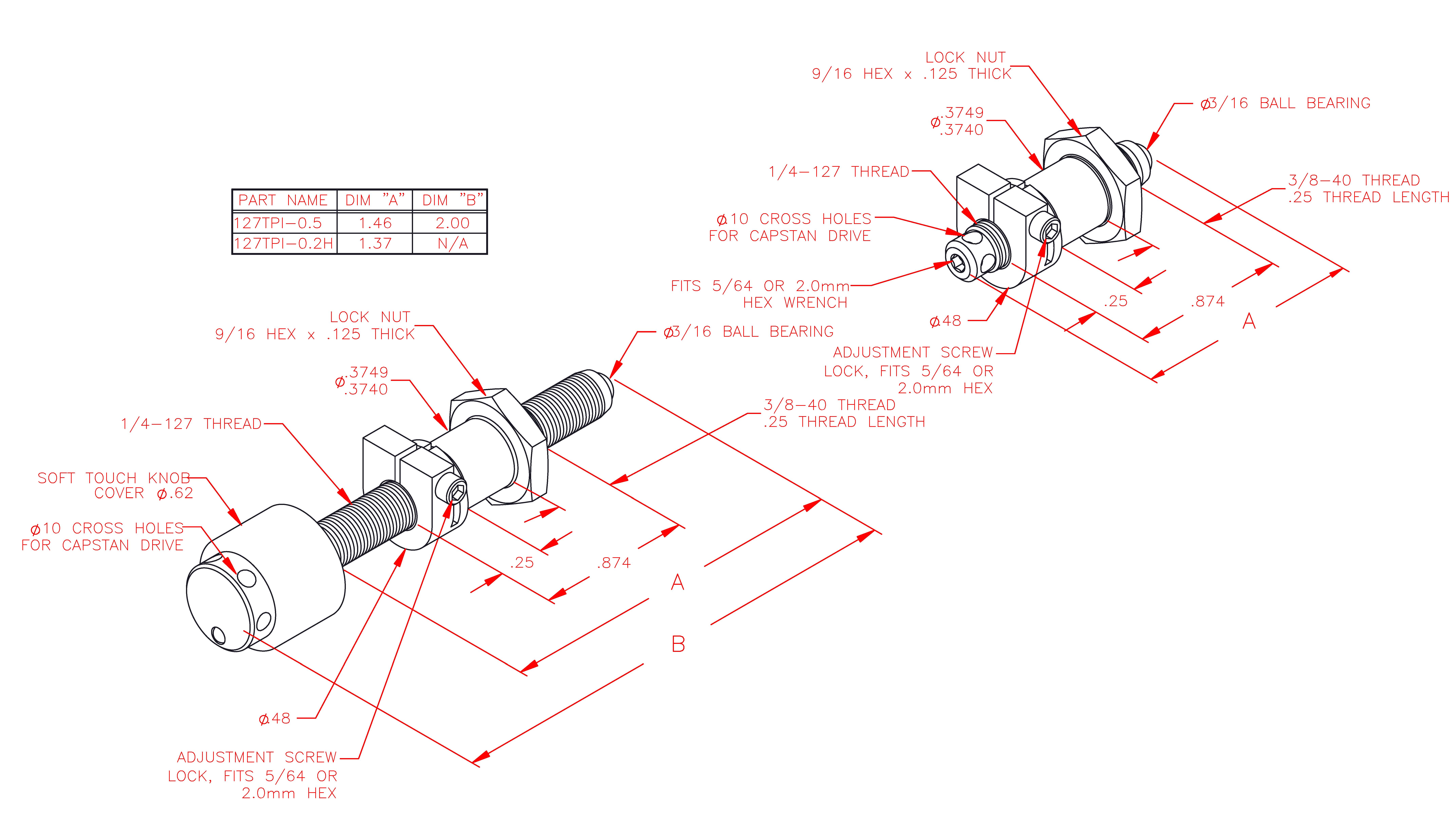

Siskiyou SoftTouch® TPI series adjustment screws are ideal for OEM and custom applications. They feature our single-wrench-size adjustment for capstan and hex drives and locking screw. The unique collet design incorporates a split-clamp mechanism used to preset adjustment screw tension as well as locking screw movement. If the location of the locking screw is not ideal it can be backed out and inserted from the opposite side.

Standard TPI adjustment screws are fitted with black SoftTouch® knob caps by default.

Product Features:

• 127 thread pitch
• Fits 3/8-inch collet diameter products
• Split-clamp lock
• SoftTouch® actuators
• Vacuum compatible versions available
• RoHS compliant

Performance Specifications:

• Travel: 200 µm/rev
• Minimum controllable motion*: 0.5 µm
• Axial load: 50lb

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

Siskiyou SoftTouch® TPI series adjustment screws are ideal for OEM and custom applications. They feature our single-wrench-size adjustment for capstan and hex drives and locking screw. The unique collet design incorporates a split-clamp mechanism used to preset adjustment screw tension as well as locking screw movement. If the location of the locking screw is not ideal it can be backed out and inserted from the opposite side.

Standard TPI adjustment screws are fitted with black SoftTouch® knob caps by default.

Product Features:

• 20 thread pitch
• Fits 3/8-inch collet diameter products
• Split-clamp lock
• SoftTouch® actuators
• Vacuum compatible versions available
• RoHS compliant

Performance Specifications:

• Travel: 1270 µm/rev
• Minimum controllable motion*: 3.5 µm
• Axial load: 100lb

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

Siskiyou SoftTouch® TPI series adjustment screws are ideal for OEM and custom applications. They feature our single-wrench-size adjustment for capstan and hex drives and locking screw. The unique collet design incorporates a split-clamp mechanism used to preset adjustment screw tension as well as locking screw movement. If the location of the locking screw is not ideal it can be backed out and inserted from the opposite side.

Standard TPI adjustment screws are fitted with black SoftTouch® knob caps by default.

Product Features:

• 40 thread pitch
• Fits 3/8-inch collet diameter products
• Split-clamp lock
• SoftTouch® actuators
• Vacuum compatible versions available
• RoHS compliant

Performance Specifications:

• Travel: 635 µm/rev
• Minimum controllable motion*: 1.8 µm
• Axial load: 100lb

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

Siskiyou SoftTouch® TPI series adjustment screws are ideal for OEM and custom applications. They feature our single-wrench-size adjustment for capstan and hex drives and locking screw. The unique collet design incorporates a split-clamp mechanism used to preset adjustment screw tension as well as locking screw movement. If the location of the locking screw is not ideal it can be backed out and inserted from the opposite side.

Standard TPI adjustment screws are fitted with black SoftTouch® knob caps by default.

Product Features:

• 80 thread pitch
• Fits 3/8-inch collet diameter products
• Split-clamp lock
• SoftTouch® actuators
• Vacuum compatible versions available
• RoHS compliant

Performance Specifications:

• Travel: 318 µm/rev
• Minimum controllable motion*: 0.9 µm
• Axial load: 100lb

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

Siskiyou TPI series adjustment screws are ideal for OEM and custom applications. They feature our single-wrench-size adjustment for capstan and hex drives and locking screw. The unique collet design incorporates a split-clamp mechanism used to preset adjustment screw tension as well as locking screw movement. If the location of the locking screw is not ideal it can be backed out and inserted from the opposite side.

The tip of the adjustment screw has been machined to accept a hard ball bearing (64 Rockwell) that can rotate in the end of the screw. This feature minimizes the amount of rotational torque transferred from the adjustment screw to the translation stage.

Product Features:

• 100 threads pitch
• Fits 3/8-inch collet diameter products
• Integrated travel lock
• Hex drive actuator
• Vacuum compatible versions available
• RoHS compliant

Performance Specifications:

• Travel: 254 µm/rev
• Minimum controllable motion*: 0.7 µm
• Axial load: 100lb

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

Siskiyou TPI series adjustment screws are ideal for OEM and custom applications. They feature our single-wrench-size adjustment for capstan and hex drives and locking screw. The unique collet design incorporates a split-clamp mechanism used to preset adjustment screw tension as well as locking screw movement. If the location of the locking screw is not ideal it can be backed out and inserted from the opposite side.

The tip of the adjustment screw has been machined to accept a hard ball bearing (64 Rockwell) that can rotate in the end of the screw. This feature minimizes the amount of rotational torque transferred from the adjustment screw to the translation stage.

Product Features:

• 20 threads pitch
• Fits 3/8-inch collet diameter products
• Integrated travel lock
• Hex drive actuator
• Vacuum compatible versions available
• RoHS compliant

Performance Specifications:

• Travel: 1270 µm/rev
• Minimum controllable motion*: 3.5 µm
• Axial load: 100lb

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

Siskiyou TPI series adjustment screws are ideal for OEM and custom applications. They feature our single-wrench-size adjustment for capstan and hex drives and locking screw. The unique collet design incorporates a split-clamp mechanism used to preset adjustment screw tension as well as locking screw movement. If the location of the locking screw is not ideal it can be backed out and inserted from the opposite side.

The tip of the adjustment screw has been machined to accept a hard ball bearing (64 Rockwell) that can rotate in the end of the screw. This feature minimizes the amount of rotational torque transferred from the adjustment screw to the translation stage.

Product Features:

• 40 thread pitch
• Fits 3/8-inch collet diameter products
• Integrated travel lock
• Hex drive actuator
• Vacuum compatible versions available
• RoHS compliant

Performance Specifications:

• Travel: 635 µm/rev
• Minimum controllable motion*: 1.8 µm
• Axial load: 100lb

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

Siskiyou TPI series adjustment screws are ideal for OEM and custom applications. They feature our single-wrench-size adjustment for capstan and hex drives and locking screw. The unique collet design incorporates a split-clamp mechanism used to preset adjustment screw tension as well as locking screw movement. If the location of the locking screw is not ideal it can be backed out and inserted from the opposite side.

The tip of the adjustment screw has been machined to accept a hard ball bearing (64 Rockwell) that can rotate in the end of the screw. This feature minimizes the amount of rotational torque transferred from the adjustment screw to the translation stage.

Product Features:

• 80 threads pitch
• Fits 3/8-inch collet diameter products
• Integrated travel lock
• Hex drive actuator
• Vacuum compatible versions available
• RoHS compliant

Performance Specifications:

• Travel: 318 µm/rev
• Minimum controllable motion*: 0.9 µm
• Axial load: 100lb

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

Siskiyou SoftTouch® TPI series adjustment screws are ideal for OEM and custom applications. They feature our single-wrench-size adjustment for capstan and hex drives and locking screw. The unique collet design incorporates a split-clamp mechanism used to preset adjustment screw tension as well as locking screw movement. If the location of the locking screw is not ideal it can be backed out and inserted from the opposite side.

Standard TPI adjustment screws are fitted with black SoftTouch® knob caps by default.

Product Features:

• 100 thread pitch
• Fits 3/8-inch collet diameter products
• Split-clamp lock
• SoftTouch® actuators
• Vacuum compatible versions available
• RoHS compliant

Performance Specifications:

• Travel: 254 µm/rev
• Minimum controllable motion*: 0.7 µm
• Axial load: 100lb

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

Siskiyou SoftTouch® TPI series adjustment screws are ideal for OEM and custom applications. They feature our single-wrench-size adjustment for capstan and hex drives and locking screw. The unique collet design incorporates a split-clamp mechanism used to preset adjustment screw tension as well as locking screw movement. If the location of the locking screw is not ideal it can be backed out and inserted from the opposite side.

Standard TPI adjustment screws are fitted with black SoftTouch® knob caps by default.

Product Features:

• 20 thread pitch
• Fits 3/8-inch collet diameter products
• Split-clamp lock
• SoftTouch® actuators
• Vacuum compatible versions available
• RoHS compliant

Performance Specifications:

• Travel: 1270 µm/rev
• Minimum controllable motion*: 3.5 µm
• Axial load: 100lb

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

Siskiyou SoftTouch® TPI series adjustment screws are ideal for OEM and custom applications. They feature our single-wrench-size adjustment for capstan and hex drives and locking screw. The unique collet design incorporates a split-clamp mechanism used to preset adjustment screw tension as well as locking screw movement. If the location of the locking screw is not ideal it can be backed out and inserted from the opposite side.

Standard TPI adjustment screws are fitted with black SoftTouch® knob caps by default.

Product Features:

• 40 thread pitch
• Fits 3/8-inch collet diameter products
• Split-clamp lock
• SoftTouch® actuators
• Vacuum compatible versions available
• RoHS compliant

Performance Specifications:

• Travel: 635 µm/rev
• Minimum controllable motion*: 1.8 µm
• Axial load: 100lb

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

Siskiyou SoftTouch® TPI series adjustment screws are ideal for OEM and custom applications. They feature our single-wrench-size adjustment for capstan and hex drives and locking screw. The unique collet design incorporates a split-clamp mechanism used to preset adjustment screw tension as well as locking screw movement. If the location of the locking screw is not ideal it can be backed out and inserted from the opposite side.

Standard TPI adjustment screws are fitted with black SoftTouch® knob caps by default.

Product Features:

• 80 thread pitch
• Fits 3/8-inch collet diameter products
• Split-clamp lock
• SoftTouch® actuators
• Vacuum compatible versions available
• RoHS compliant

Performance Specifications:

• Travel: 318 µm/rev
• Minimum controllable motion*: 0.9 µm
• Axial load: 100lb

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

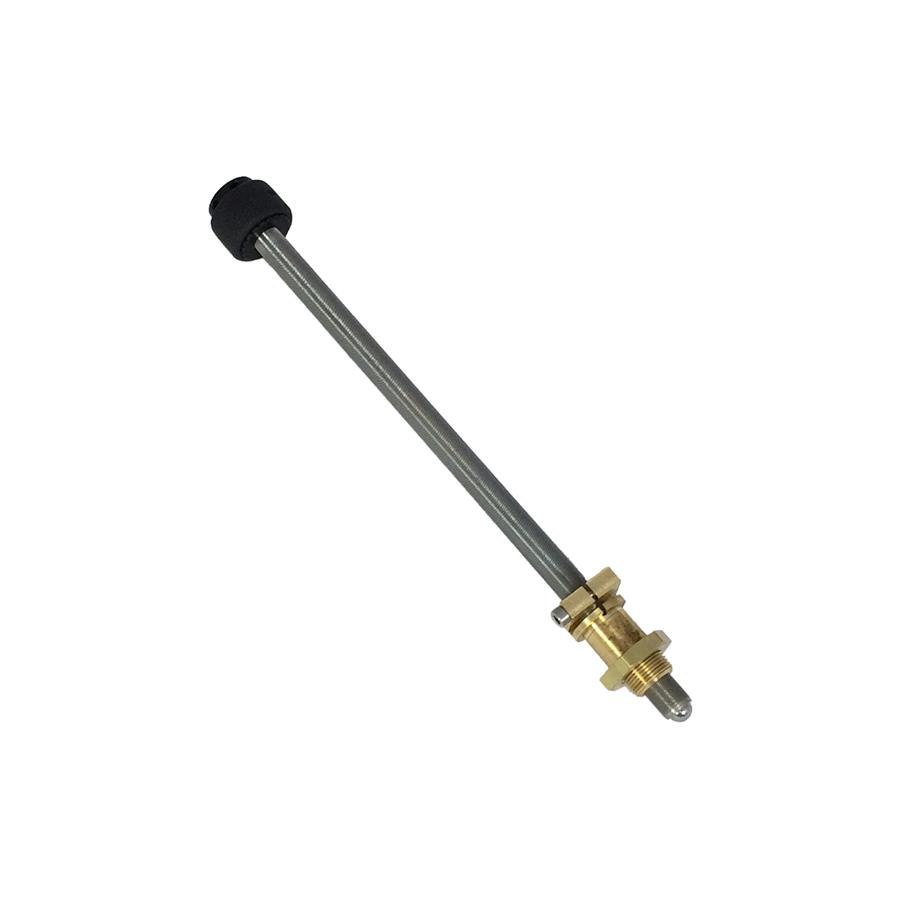

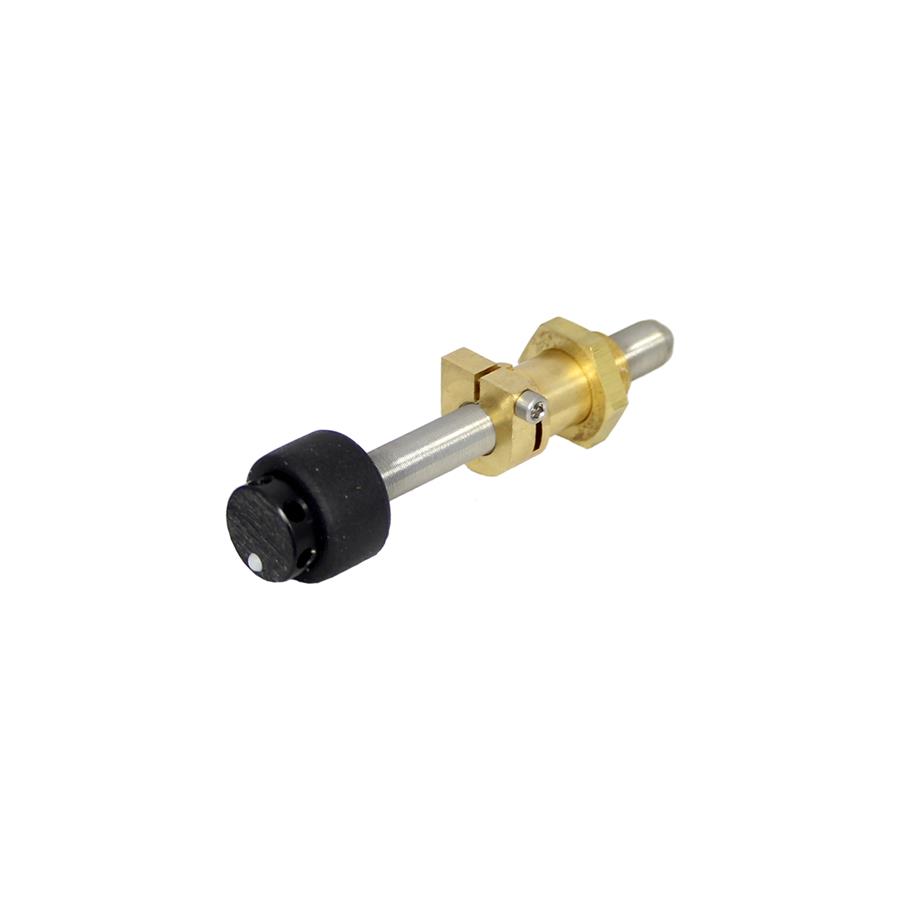

Siskiyou SoftTouch® TPI series adjustment screws are ideal for OEM and custom applications. They feature our single-wrench-size adjustment for capstan and hex drives and locking screw. The unique collet design incorporates a split-clamp mechanism used to preset adjustment screw tension as well as locking screw movement. If the location of the locking screw is not ideal it can be backed out and inserted from the opposite side.

Standard TPI adjustment screws are fitted with black SoftTouch® knob caps by default.

Product Features:

• 100 thread pitch
• Fits 3/8-inch collet diameter products
• Split-clamp lock
• SoftTouch® actuators
• Vacuum compatible versions available
• RoHS compliant

Performance Specifications:

• Travel: 254 µm/rev
• Minimum controllable motion*: 0.7 µm
• Axial load: 100lb

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

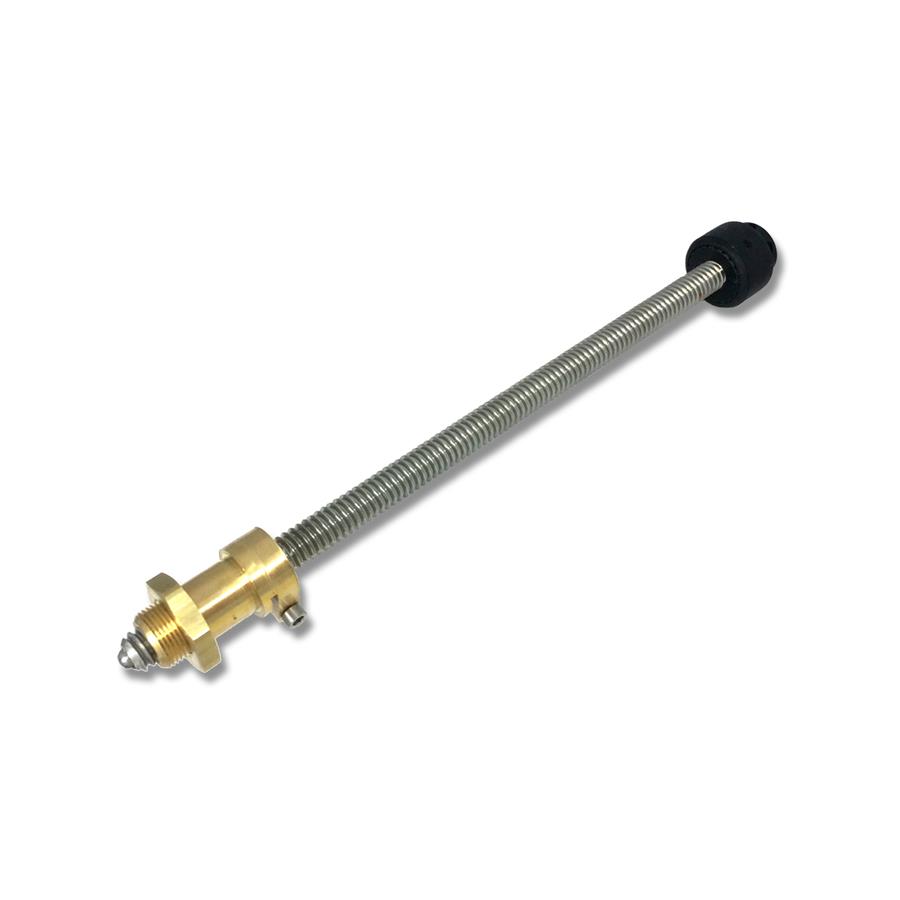

Siskiyou SoftTouch® TPI series adjustment screws are ideal for OEM and custom applications. They feature our single-wrench-size adjustment for capstan and hex drives and locking screw. The unique collet design incorporates a split-clamp mechanism used to preset adjustment screw tension as well as locking screw movement. If the location of the locking screw is not ideal it can be backed out and inserted from the opposite side.

Standard TPI adjustment screws are fitted with black SoftTouch® knob caps by default.

Product Features:

• 20 thread pitch
• Fits 3/8-inch collet diameter products
• Split-clamp lock
• SoftTouch® actuators
• Vacuum compatible versions available
• RoHS compliant

Performance Specifications:

• Travel: 1270 µm/rev
• Minimum controllable motion*: 3.5 µm
• Axial load: 100lb

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

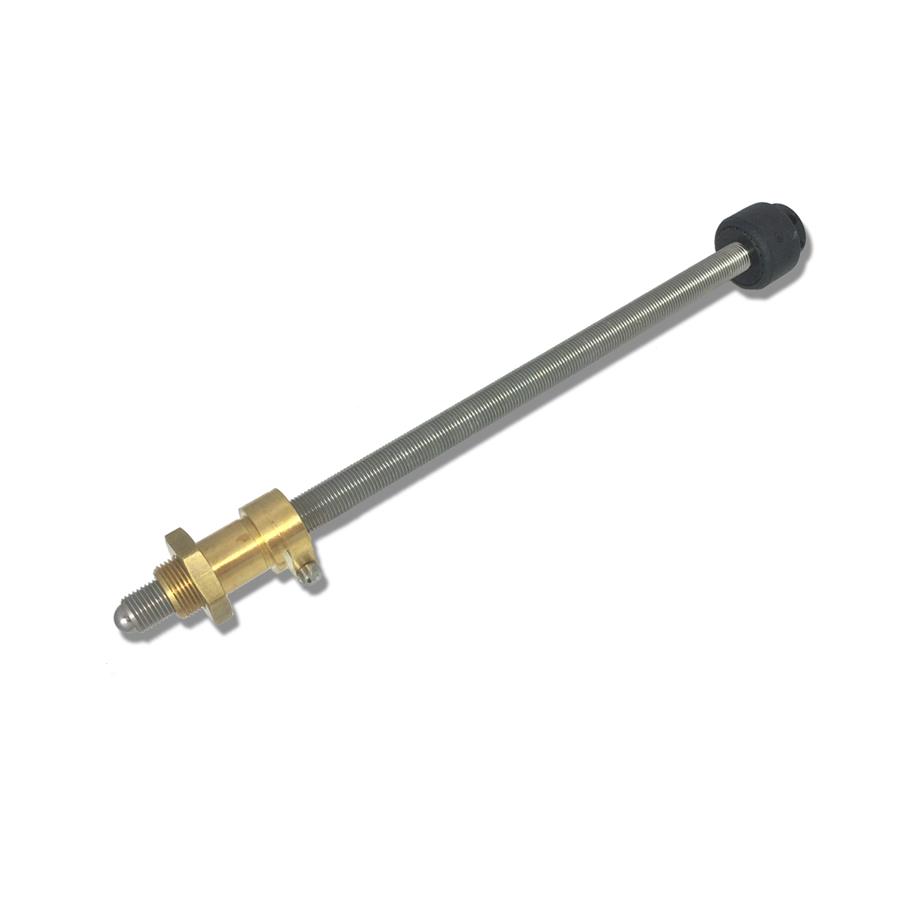

Siskiyou SoftTouch® TPI series adjustment screws are ideal for OEM and custom applications. They feature our single-wrench-size adjustment for capstan and hex drives and locking screw. The unique collet design incorporates a split-clamp mechanism used to preset adjustment screw tension as well as locking screw movement. If the location of the locking screw is not ideal it can be backed out and inserted from the opposite side.

Standard TPI adjustment screws are fitted with black SoftTouch® knob caps by default.

Product Features:

• 40 thread pitch
• Fits 3/8-inch collet diameter products
• Split-clamp lock
• SoftTouch® actuators
• Vacuum compatible versions available
• RoHS compliant

Performance Specifications:

• Travel: 635 µm/rev
• Minimum controllable motion*: 1.8 µm
• Axial load: 100lb

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

Siskiyou SoftTouch® TPI series adjustment screws are ideal for OEM and custom applications. They feature our single-wrench-size adjustment for capstan and hex drives and locking screw. The unique collet design incorporates a split-clamp mechanism used to preset adjustment screw tension as well as locking screw movement. If the location of the locking screw is not ideal it can be backed out and inserted from the opposite side.

Standard TPI adjustment screws are fitted with black SoftTouch® knob caps by default.

Product Features:

• 80 thread pitch
• Fits 3/8-inch collet diameter products
• Split-clamp lock
• SoftTouch® actuators
• Vacuum compatible versions available
• RoHS compliant

Performance Specifications:

• Travel: 318 µm/rev
• Minimum controllable motion*: 0.9 µm
• Axial load: 100lb

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

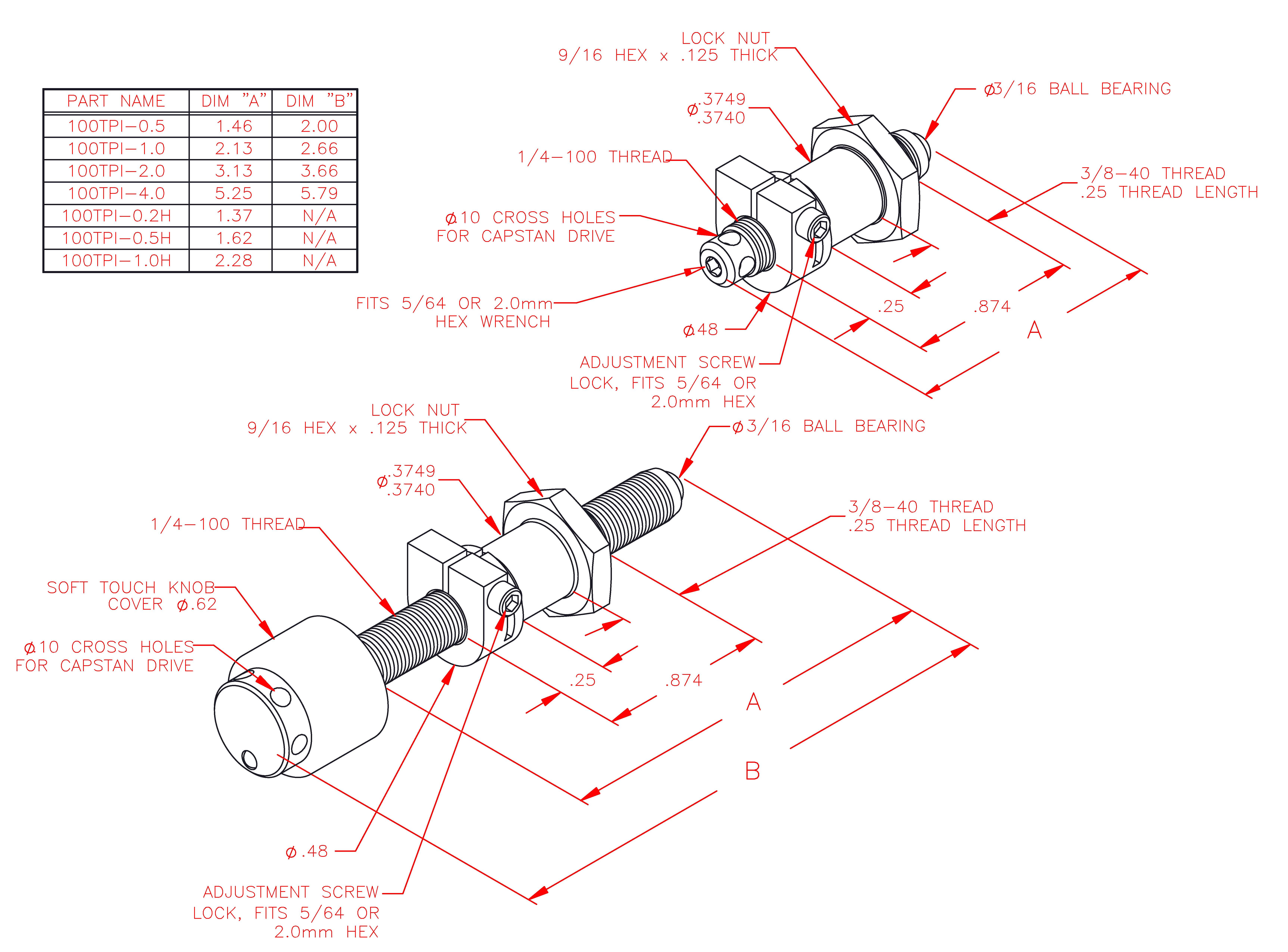

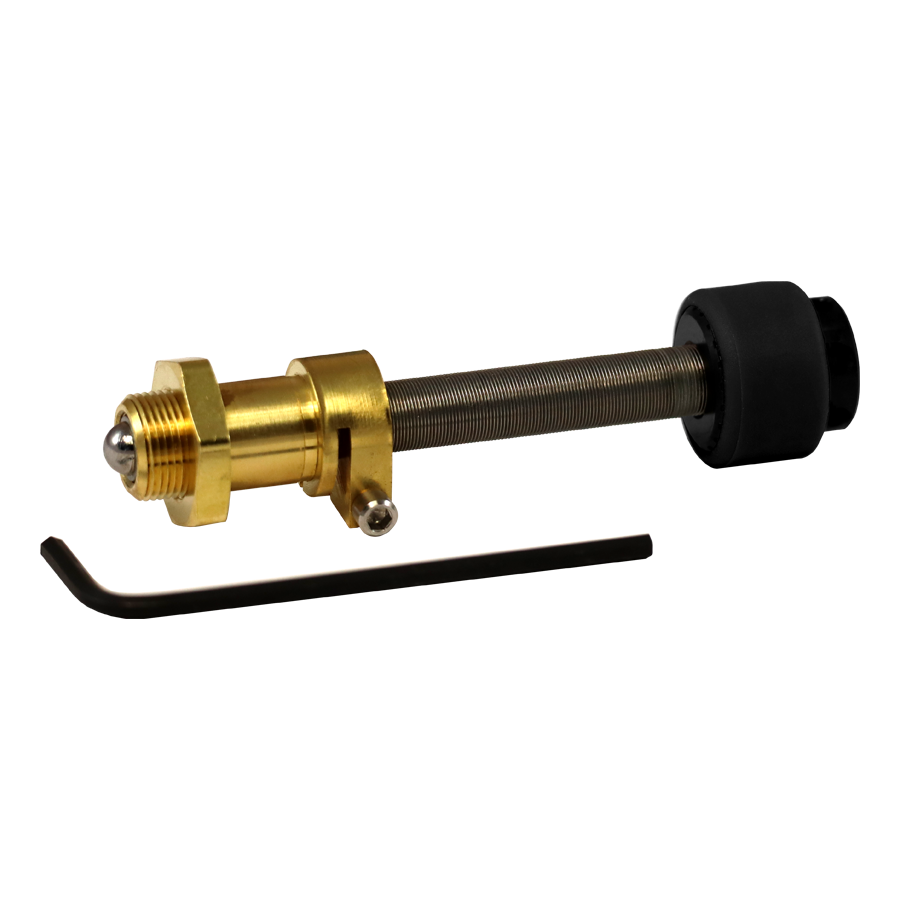

Siskiyou TPI series adjustment screws are ideal for OEM and custom applications. They feature our single-wrench-size adjustment for capstan and hex drives and locking screw. The unique collet design incorporates a split-clamp mechanism used to preset adjustment screw tension as well as locking screw movement. If the location of the locking screw is not ideal it can be backed out and inserted from the opposite side.

The tip of the adjustment screw has been machined to accept a hard ball bearing (64 Rockwell) that can rotate in the end of the screw. This feature minimizes the amount of rotational torque transferred from the adjustment screw to the translation stage.

Product Features:

• 100 threads pitch
• Fits 3/8-inch collet diameter products
• Integrated travel lock
• Hex drive actuator
• Vacuum compatible versions available
• RoHS compliant

Performance Specifications:

• Travel: 318 µm/rev
• Minimum controllable motion*: 0.9 µm
• Axial load: 100lb

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

Siskiyou TPI series adjustment screws are ideal for OEM and custom applications. They feature our single-wrench-size adjustment for capstan and hex drives and locking screw. The unique collet design incorporates a split-clamp mechanism used to preset adjustment screw tension as well as locking screw movement. If the location of the locking screw is not ideal it can be backed out and inserted from the opposite side.

The tip of the adjustment screw has been machined to accept a hard ball bearing (64 Rockwell) that can rotate in the end of the screw. This feature minimizes the amount of rotational torque transferred from the adjustment screw to the translation stage.

Product Features:

• 127 threads pitch
• Fits 3/8-inch collet diameter products
• Integrated travel lock
• Hex drive actuator
• Vacuum compatible versions available
• RoHS compliant

Performance Specifications:

• Travel: 200 µm/rev
• Minimum controllable motion*: 0.5 µm
• Axial load: 50lb

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

Siskiyou TPI series adjustment screws are ideal for OEM and custom applications. They feature our single-wrench-size adjustment for capstan and hex drives and locking screw. The unique collet design incorporates a split-clamp mechanism used to preset adjustment screw tension as well as locking screw movement. If the location of the locking screw is not ideal it can be backed out and inserted from the opposite side.

The tip of the adjustment screw has been machined to accept a hard ball bearing (64 Rockwell) that can rotate in the end of the screw. This feature minimizes the amount of rotational torque transferred from the adjustment screw to the translation stage.

Product Features:

• 170 threads pitch
• Fits 3/8-inch collet diameter products
• Integrated travel lock
• Hex drive actuator
• Vacuum compatible versions available
• RoHS compliant

Performance Specifications:

• Travel: 150 µm/rev
• Minimum controllable motion*: 0.4 µm
• Axial load: 50lb

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

Siskiyou TPI series adjustment screws are ideal for OEM and custom applications. They feature our single-wrench-size adjustment for capstan and hex drives and locking screw. The unique collet design incorporates a split-clamp mechanism used to preset adjustment screw tension as well as locking screw movement. If the location of the locking screw is not ideal it can be backed out and inserted from the opposite side.

The tip of the adjustment screw has been machined to accept a hard ball bearing (64 Rockwell) that can rotate in the end of the screw. This feature minimizes the amount of rotational torque transferred from the adjustment screw to the translation stage.

Product Features:

• 20 threads pitch
• Fits 3/8-inch collet diameter products
• Integrated travel lock
• Hex drive actuator
• Vacuum compatible versions available
• RoHS compliant

Performance Specifications:

• Travel: 1270 µm/rev
• Minimum controllable motion*: 3.5 µm
• Axial load: 100lb

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

Siskiyou TPI series adjustment screws are ideal for OEM and custom applications. They feature our single-wrench-size adjustment for capstan and hex drives and locking screw. The unique collet design incorporates a split-clamp mechanism used to preset adjustment screw tension as well as locking screw movement. If the location of the locking screw is not ideal it can be backed out and inserted from the opposite side.

The tip of the adjustment screw has been machined to accept a hard ball bearing (64 Rockwell) that can rotate in the end of the screw. This feature minimizes the amount of rotational torque transferred from the adjustment screw to the translation stage.

Product Features:

• 40 thread pitch
• Fits 3/8-inch collet diameter products
• Integrated travel lock
• Hex drive actuator
• Vacuum compatible versions available
• RoHS compliant

Performance Specifications:

• Travel: 635 µm/rev
• Minimum controllable motion*: 1.8 µm
• Axial load: 100lb

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

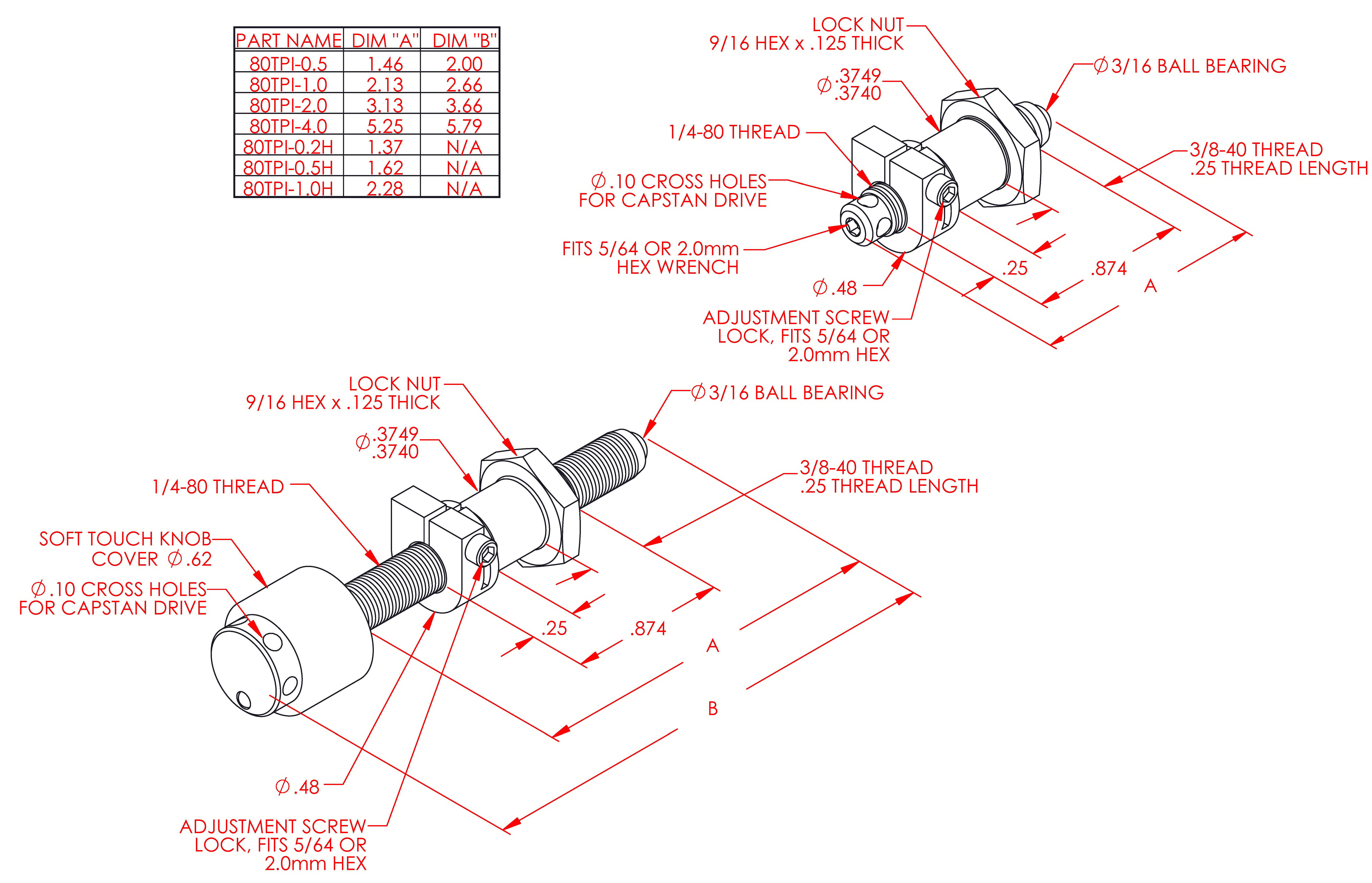

Siskiyou TPI series adjustment screws are ideal for OEM and custom applications. They feature our single-wrench-size adjustment for capstan and hex drives and locking screw. The unique collet design incorporates a split-clamp mechanism used to preset adjustment screw tension as well as locking screw movement. If the location of the locking screw is not ideal it can be backed out and inserted from the opposite side.

The tip of the adjustment screw has been machined to accept a hard ball bearing (64 Rockwell) that can rotate in the end of the screw. This feature minimizes the amount of rotational torque transferred from the adjustment screw to the translation stage.

Product Features:

• 80 thread pitch
• Fits 3/8-inch collet diameter products
• Integrated travel lock
• Hex drive actuator
• Vacuum compatible versions available
• RoHS compliant

Performance Specifications:

• Travel: 318 µm/rev
• Minimum controllable motion*: 0.9 µm
• Axial load: 100lb

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION
