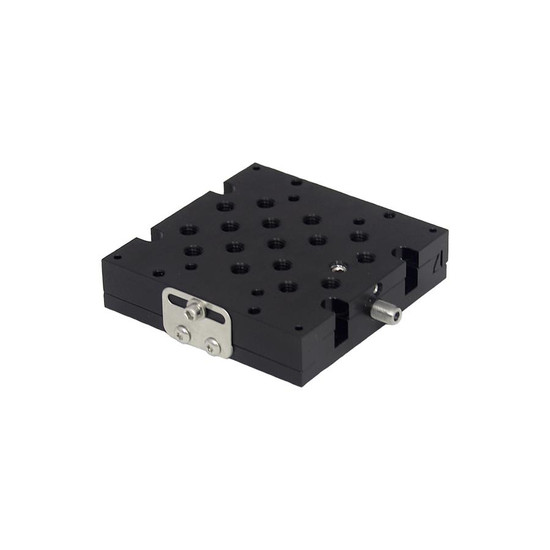

X00.25dt Series Stage
SKU:
X00.25 SERIES
Name:
Axes of Adjustment:
X
MANUAL MOTORIZED:
MANUAL
SIZE:
LARGE
SIZE:
MEDIUM
SIZE:
SMALL
TRAVEL:
6MM/.25IN
UOM:
IMPERIAL
UOM:
METRIC
VOLUME:
0.000000
WEIGHT UOM:
LB
TT$862.69 - TT$1,419.70
X00.25dt Series Stage
TT$862.69 - TT$1,419.70
X00.25dt Series Stage
The X00.25dt Series is one of our dovetail stages that are the thinnest line on the market. Their design is simple but effective for set-it-and-forget-it applications. The 100TPI thread ensures the smallest minimum controllable motion in a dovetail stage and the non-influencing foil lock virtually guarantees that the first adjustment is the last one. The foil lock can be mounted to matching holes on the opposite side of the stage for maximum access flexibility.
Product Features
- Low profile design
- 100TPI adjustment
- Non-influencing lock
- UV and vacuum compatible versions available upon request
Performance Specifications
- Travel: 0.25 inch (6 mm)
- Minimum controllable motion: 5 µm, typical
*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION
Choose options to see performance specifications and downloads.
Expand a variant below to view variant-specific images, product details, downloadable files, and additional technical details.
150.25dt [90880000E]
Variant Images
![150.25dt [90880000E] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/90880000E.jpg)

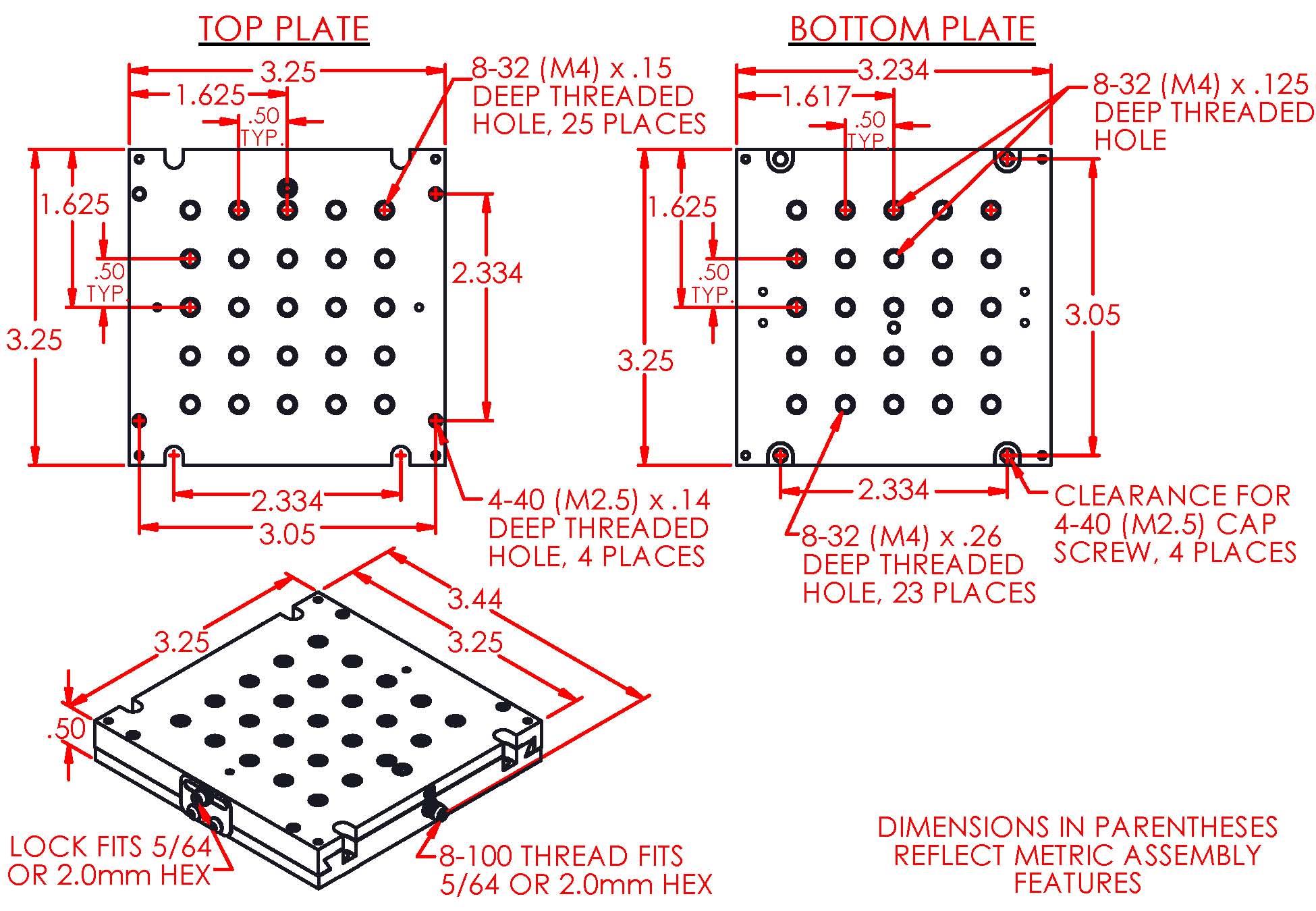

![150.25dt [90880000E] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/90880000E_1.jpg)
Product Details
The 150.25dt is one of our dovetail stages that are the thinnest line on the market. Their design is simple but effective for set-it-and-forget-it applications. The 100TPI thread ensures the smallest Minimum controllable motion*: in a dovetail stage and the non-influencing foil lock virtually guarantees that the first adjustment is the last one. The foil lock can be mounted to matching holes on the opposite side of the stage for maximum access flexibility.
Product Features:
- Low profile design
- 100TPI adjustment
- Non-influencing lock
- UV and vacuum compatible versions available upon request
- RoHS compliant
Performance Specifications:
- Maximum horizontal axis load: 5 lbs
- Maximum vertical axis load: 2 lbs
- Travel: 0.25 inch (6 mm)
- Minimum controllable motion*: 5 µm typical
*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION
150.25dt M [90880000M]
Variant Images

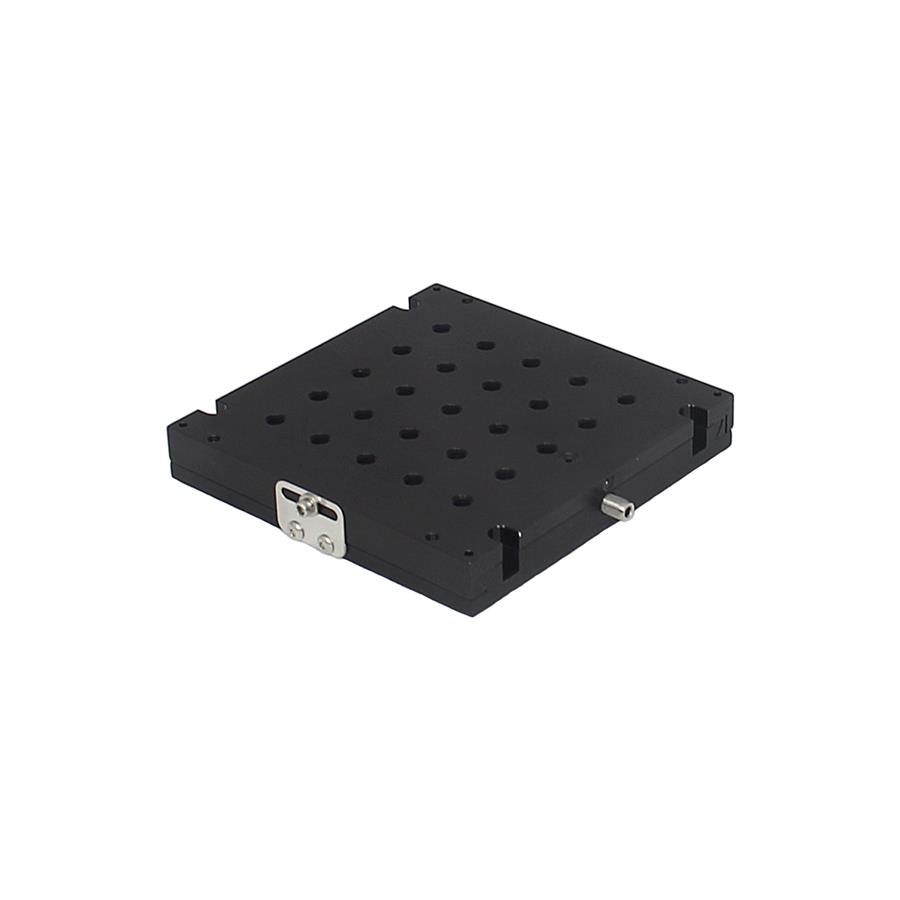

![150.25dt M [90880000M] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/90880000M.jpg)
![150.25dt M [90880000M] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/90880000M_1.jpg)
Product Details
The 150.25dt is one of our dovetail stages that are the thinnest line on the market. Their design is simple but effective for set-it-and-forget-it applications. The 100TPI thread ensures the smallest Minimum controllable motion*: in a dovetail stage and the non-influencing foil lock virtually guarantees that the first adjustment is the last one. The foil lock can be mounted to matching holes on the opposite side of the stage for maximum access flexibility.
Product Features:
- Low profile design
- 100TPI adjustment
- Non-influencing lock
- UV and vacuum compatible versions available upon request
- RoHS compliant
Performance Specifications:
- Maximum horizontal axis load: 5 lbs
- Maximum vertical axis load: 2 lbs
- Travel: 0.25 inch (6 mm)
- Minimum controllable motion*: 5 µm typical
*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION
100.25dt [90870000E]
Variant Images

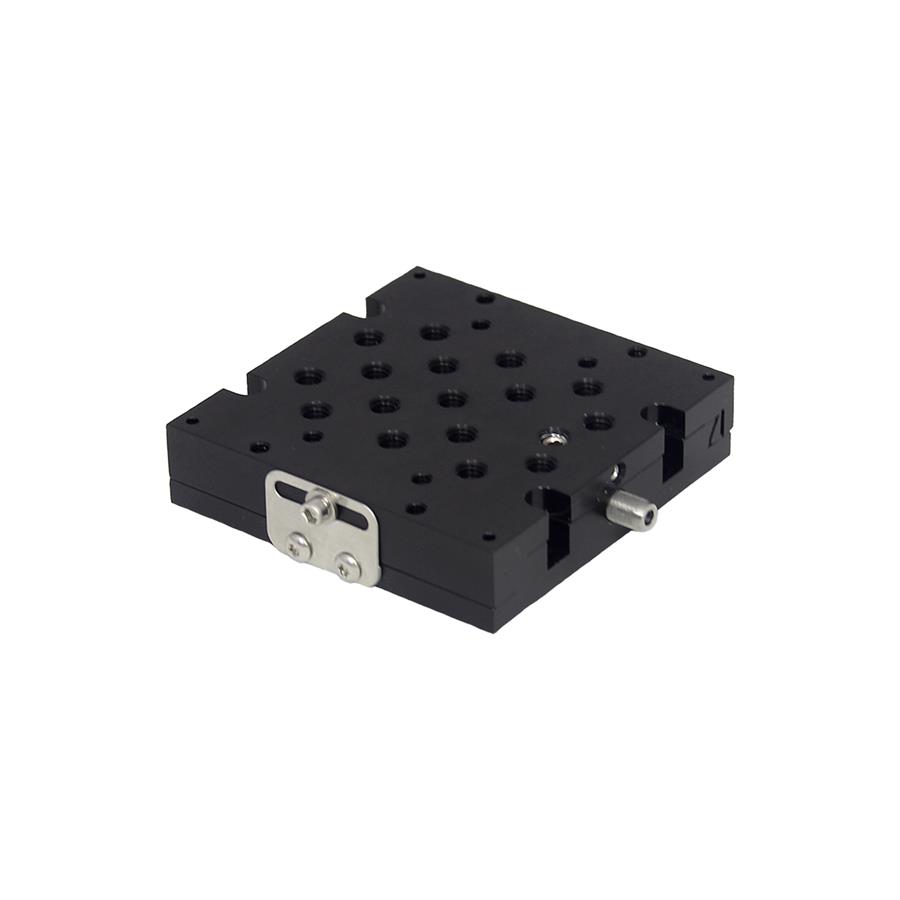

![100.25dt [90870000E] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/90870000E.jpg)

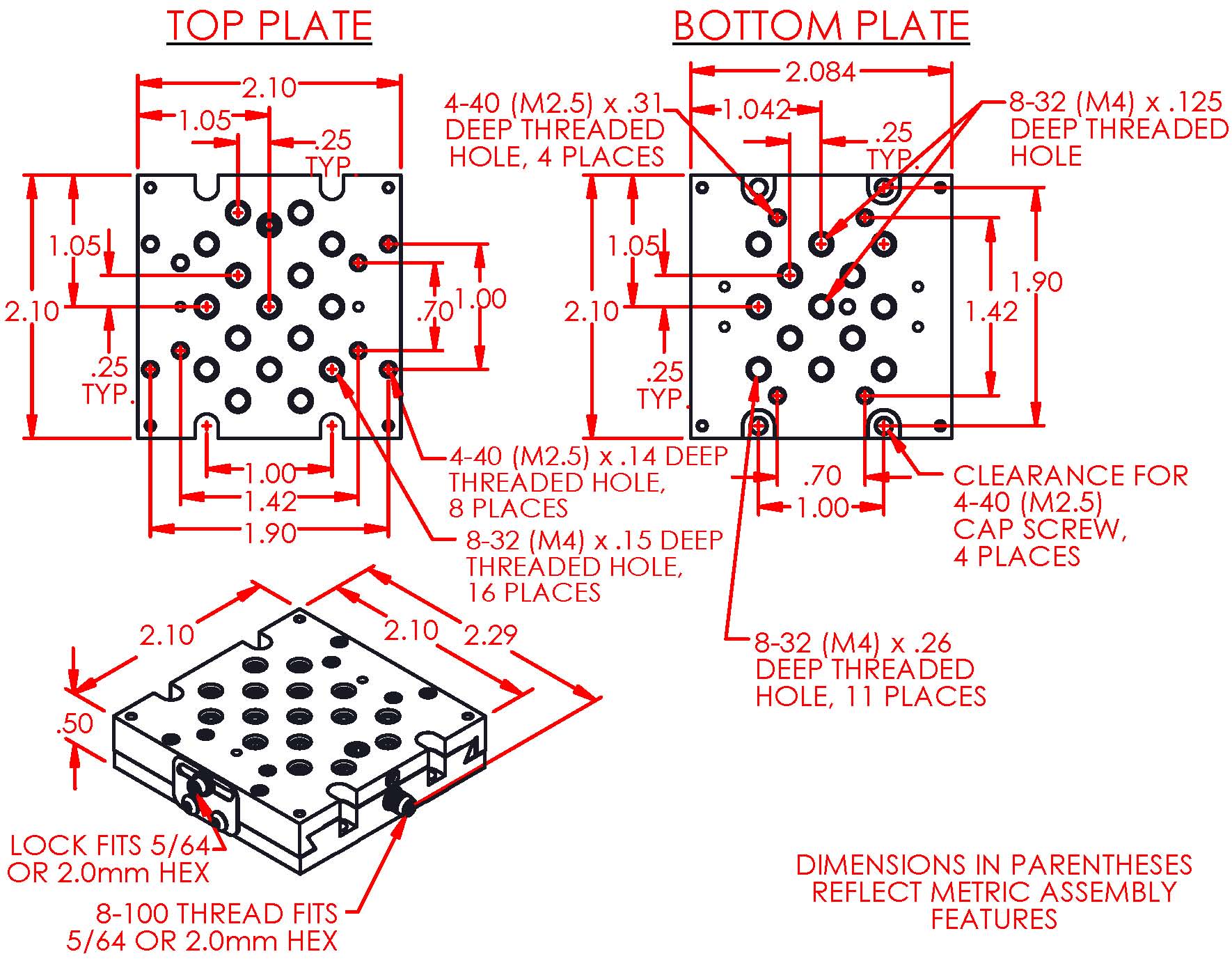

![100.25dt [90870000E] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/90870000E_1.jpg)
Product Details
The 100.25dt is one of our dovetail stages that are the thinnest line on the market. Their design is simple but effective for set-it-and-forget-it applications. The 100TPI thread ensures the smallest Minimum controllable motion*: in a dovetail stage and the non-influencing foil lock virtually guarantees that the first adjustment is the last one. The foil lock can be mounted to matching holes on the opposite side of the stage for maximum access flexibility.
Product Features:
- Low profile design
- 100TPI adjustment
- Non-influencing lock
- UV and vacuum compatible versions available upon request
- RoHS compliant
Performance Specifications:
- Maximum horizontal axis load: 5 lbs
- Maximum vertical axis load: 2 lbs
- Travel: 0.25 inch (6 mm)
- Minimum controllable motion*: 5 µm typical
*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION
100.25dt M [90870000M]
Variant Images
![100.25dt M [90870000M] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/90870000M.jpg)
![100.25dt M [90870000M] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/90870000M_1.jpg)
Product Details
The 100.25dt is one of our dovetail stages that are the thinnest line on the market. Their design is simple but effective for set-it-and-forget-it applications. The 100TPI thread ensures the smallest Minimum controllable motion*: in a dovetail stage and the non-influencing foil lock virtually guarantees that the first adjustment is the last one. The foil lock can be mounted to matching holes on the opposite side of the stage for maximum access flexibility.
Product Features:
- Low profile design
- 100TPI adjustment
- Non-influencing lock
- UV and vacuum compatible versions available upon request
- RoHS compliant
Performance Specifications:
- Maximum horizontal axis load: 5 lbs
- Maximum vertical axis load: 2 lbs
- Travel: 0.25 inch (6 mm)
- Minimum controllable motion*: 5 µm typical
*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION
50.25dt [90860000E]
Variant Images

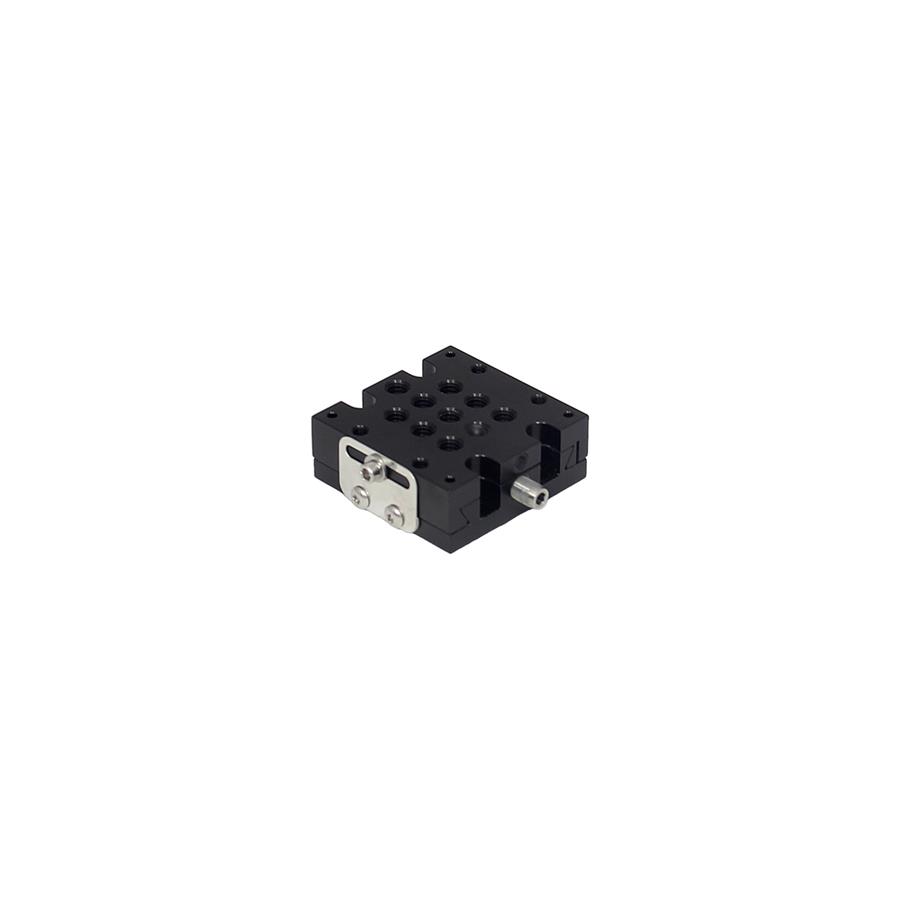

![50.25dt [90860000E] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/90860000E.jpg)
![50.25dt [90860000E] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/90860000E_1.jpg)
Product Details
The 50.25dt is one of our dovetail stages that are the thinnest line on the market. Their design is simple but effective for set-it-and-forget-it applications. The 100TPI thread ensures the smallest Minimum controllable motion*: in a dovetail stage and the non-influencing foil lock virtually guarantees that the first adjustment is the last one. The foil lock can be mounted to matching holes on the opposite side of the stage for maximum access flexibility.
Product Features:
- Low profile design
- 100TPI adjustment
- Non-influencing lock
- UV and vacuum compatible versions available upon request
- RoHS compliant
Performance Specifications:
- Maximum horizontal axis load: 5 lbs
- Maximum vertical axis load: 2 lbs
- Travel: 0.25 inch (6 mm)
- Minimum controllable motion*: 5 µm typical
*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION
50.25dt M [90860000M]
Variant Images
![50.25dt M [90860000M] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/90860000M.jpg)

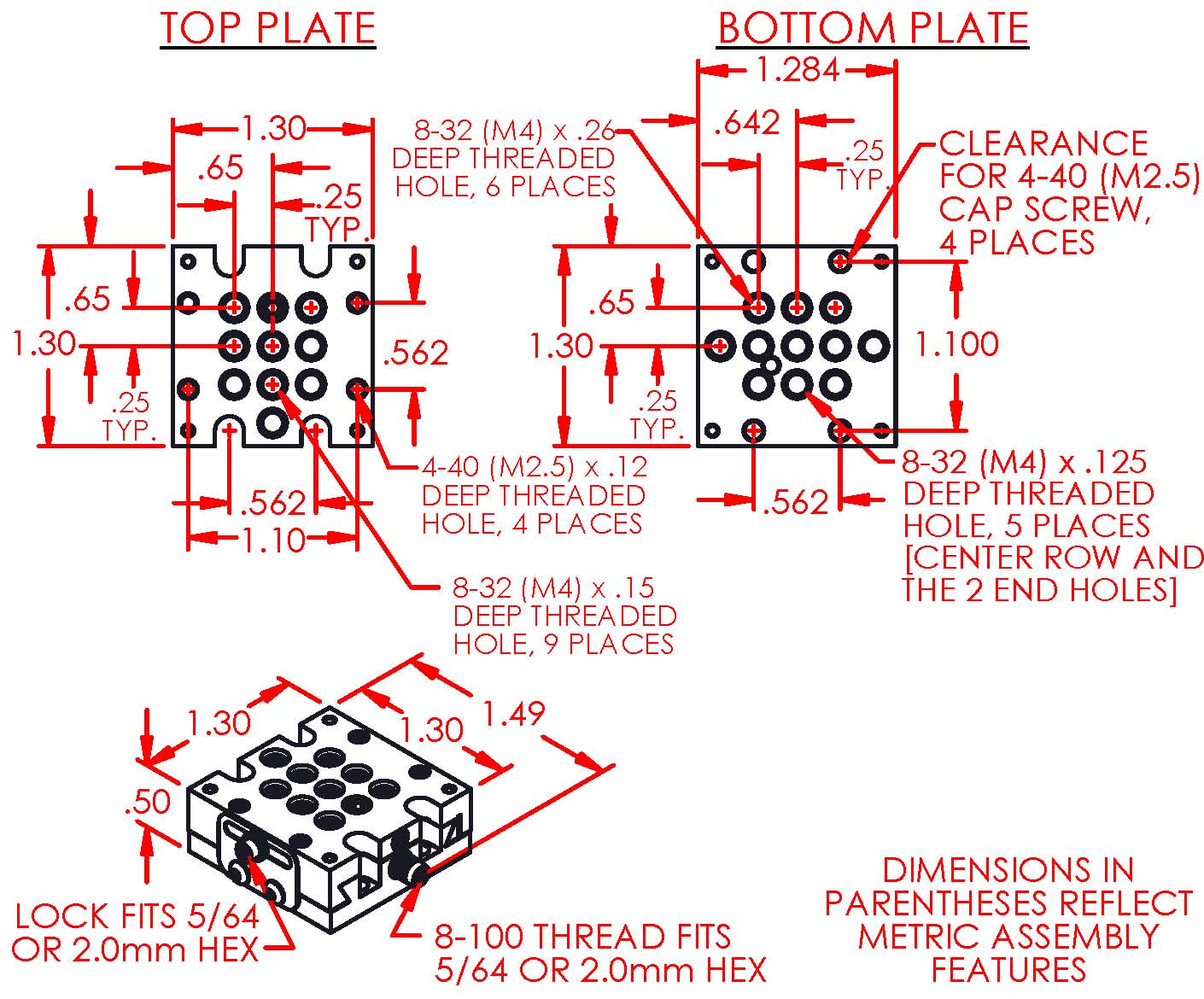

![50.25dt M [90860000M] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/90860000M_1.jpg)
Product Details
The 50.25dt is one of our dovetail stages that are the thinnest line on the market. Their design is simple but effective for set-it-and-forget-it applications. The 100TPI thread ensures the smallest Minimum controllable motion*: in a dovetail stage and the non-influencing foil lock virtually guarantees that the first adjustment is the last one. The foil lock can be mounted to matching holes on the opposite side of the stage for maximum access flexibility.
Product Features:
- Low profile design
- 100TPI adjustment
- Non-influencing lock
- UV and vacuum compatible versions available upon request
- RoHS compliant
Performance Specifications:
- Maximum horizontal axis load: 5 lbs
- Maximum vertical axis load: 2 lbs
- Travel: 0.25 inch (6 mm)
- Minimum controllable motion*: 5 µm typical
*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION
