100.5cr Series Stage
SKU:
100.5CR SERIES
Name:
₱25,576.08 - ₱75,031.56
100.5cr Series Stage
₱25,576.08 - ₱75,031.56
100.5cr Series Stage
The 100.5cr series represents the thinnest line of crossed roller stages on the market today. Their slim design is ideal for applications in which space or height is critical. All three sizes are available in X-, XY- or XYZ-axis versions. Each axis has a non-influencing foil lock which virtually guarantees that the first adjustment is the last one. The foil lock has matching mounting holes on the opposite edge for maximum access flexibility. Depending on the sensitivity of the setup, 8-80TPI or 8-100TPI adjustment screws, or SM-1 micrometers, can be used with these stages. Angle brackets are included in assemblies, and may also be purchased separately.
Product Features
- Low profile design
- Non-influencing lock
- High load crossed roller bearings
- Vacuum compatible versions available
Performance Specifications
- Travel Range: 1.0 inch (25.4mm)
- Maximum Horizontal axis Load: 10 lb
- Maximum Vertical axis Load: 4 lb
- Resolution:
- With 80TPI adjustment screw 5µm
- With 100TPI adjustment screw submicron
*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION
Choose options to see performance specifications and downloads.
Expand a variant below to view variant-specific images, product details, downloadable files, and additional technical details.

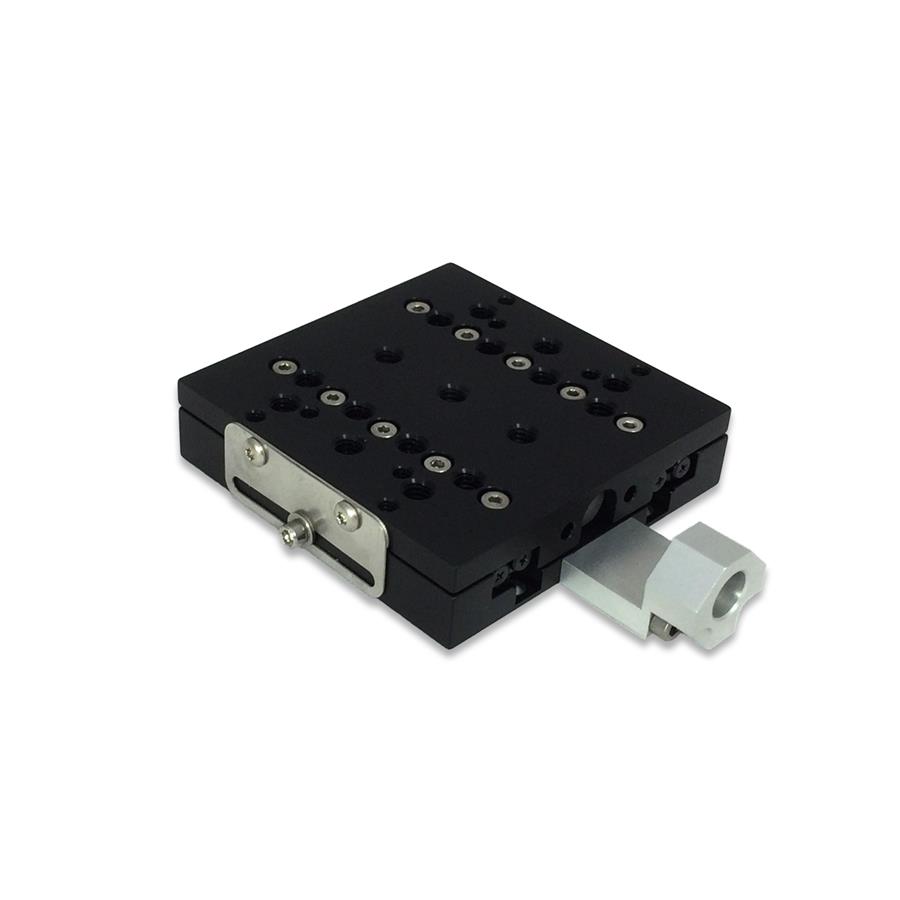

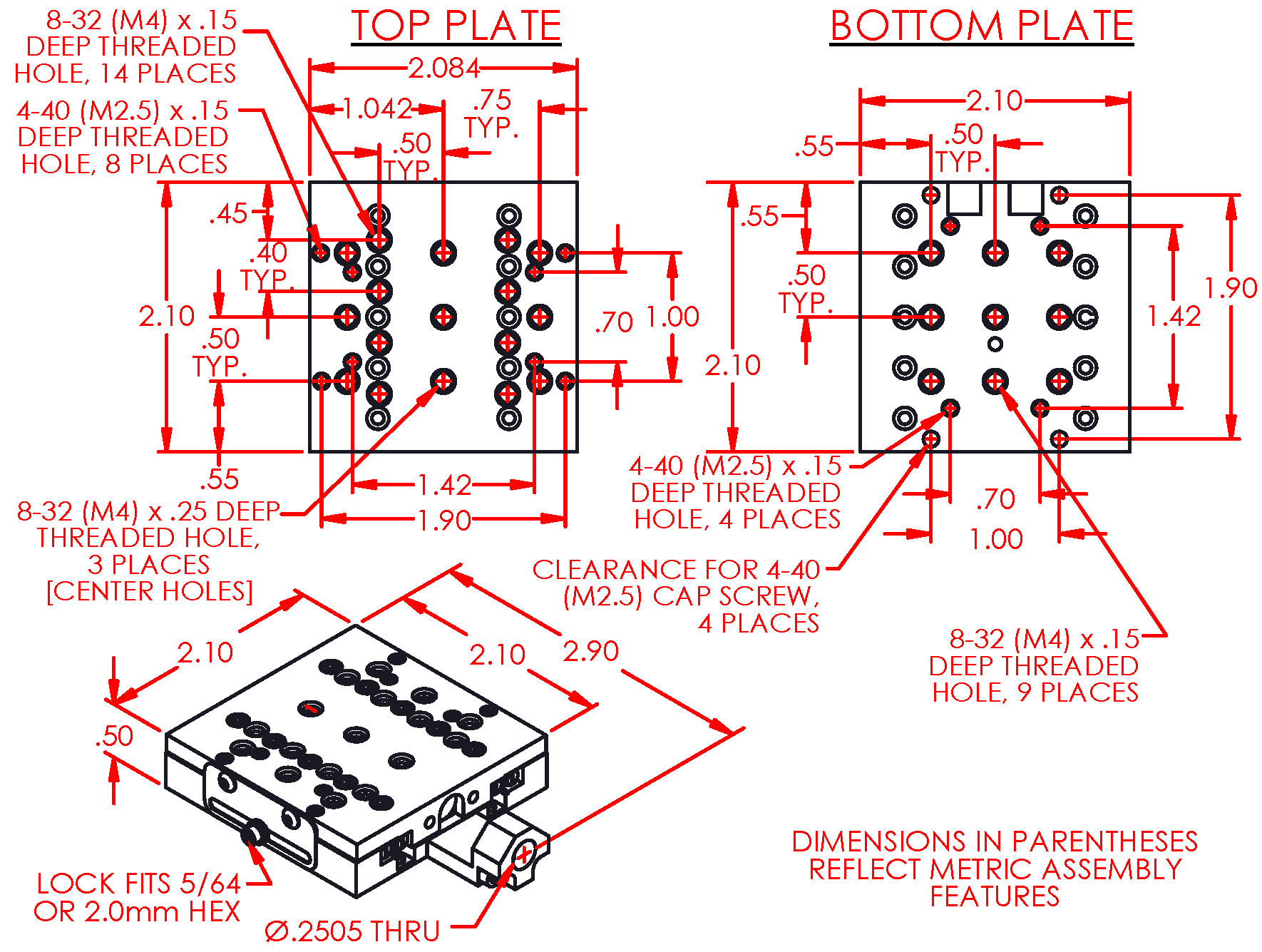

100.5cr-X [90750000E]
Variant Images
![100.5cr-X [90750000E] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/90750000E.jpg)
![100.5cr-X [90750000E] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/90750000E_1.jpg)
Product Details
The 100.5cr series represents the thinnest line of crossed roller stages on the market today. Their slim design is ideal for applications in which space or height is critical. All three sizes are available in X- XY- or XYZ-axis versions. Each axis has a non-influencing foil lock which virtually guarantees that the first adjustment is the last one. The foil lock has matching mounting holes on the opposite edge for maximum access flexibility. Depending on the sensitivity of the setup either 8-80TPI or 8-100TPI adjustment screws or SM-1 micrometers can be used with these stages. Angle brackets are included in assemblies and may also be purchased separately.
Product Features:
- Low profile design
- Non-influencing lock
- High load crossed roller bearings
- Vacuum compatible versions available
- RoHS compliant
Performance Specifications:
- Travel Range: 1.0 inch (25.4mm)
- Maximum Horizontal axis Load: 10 lb
- Maximum Vertical axis Load: 4 lb
- Resolution
- With 80TPI adjustment screw: 5 µm
- With 100TPI adjustment screw: submicron
100.5cr-X M [90750000M]
Product Details
The 100.5cr series represents the thinnest line of crossed roller stages on the market today. Their slim design is ideal for applications in which space or height is critical. All three sizes are available in X- XY- or XYZ-axis versions. Each axis has a non-influencing foil lock which virtually guarantees that the first adjustment is the last one. The foil lock has matching mounting holes on the opposite edge for maximum access flexibility. Depending on the sensitivity of the setup either 8-80TPI or 8-100TPI adjustment screws or SM-1 micrometers can be used with these stages. Angle brackets are included in assemblies and may also be purchased separately.
Product Features:
- Low profile design
- Non-influencing lock
- High load crossed roller bearings
- Vacuum compatible versions available
- RoHS compliant
Performance Specifications:
- Travel Range: 1.0 inch (25.4mm)
- Maximum Horizontal axis Load: 10 lb
- Maximum Vertical axis Load: 4 lb
- Resolution
- With 80TPI adjustment screw: 5 m
- With 100TPI adjustment screw: submicron

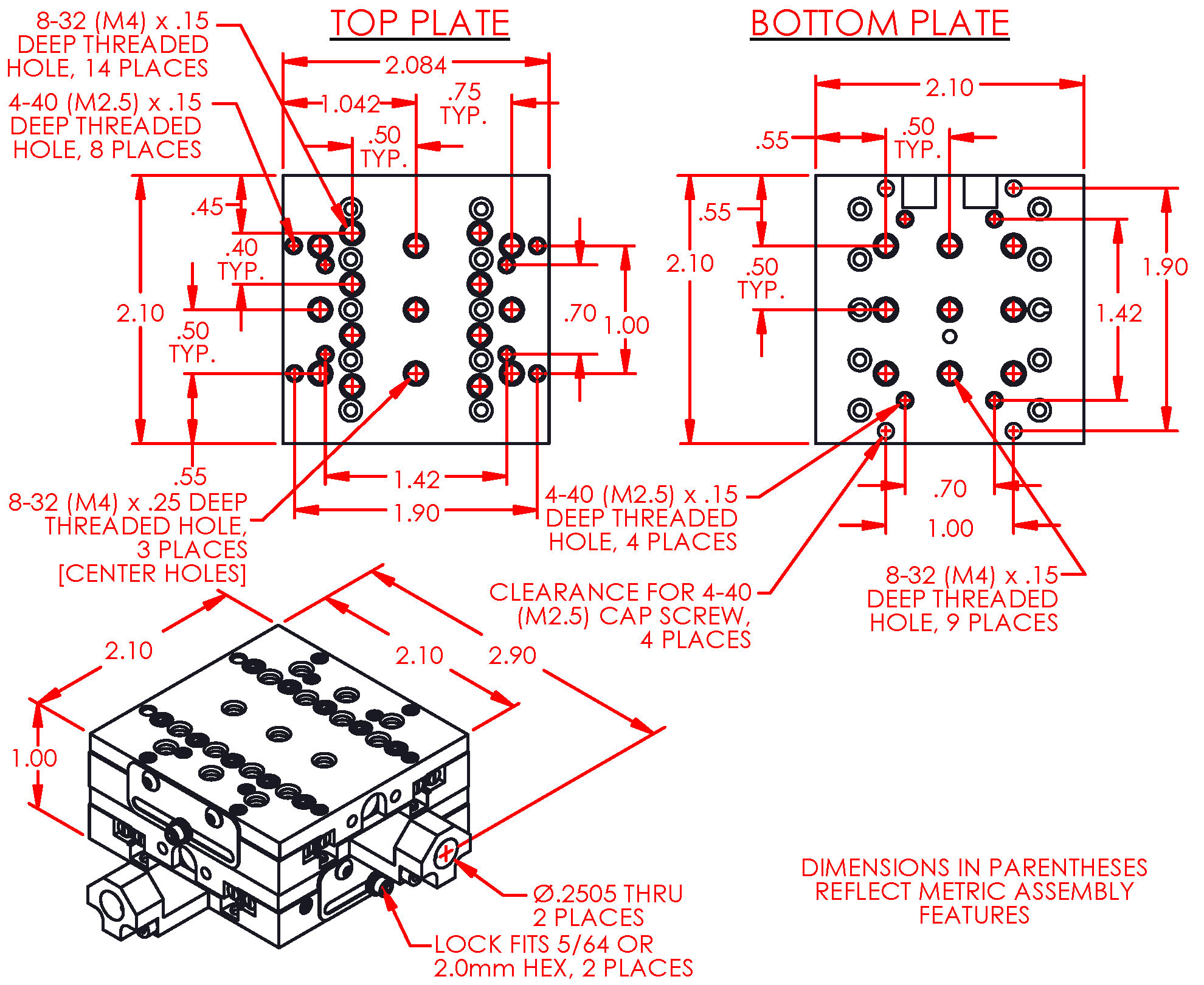

100.5cr-XY [90760000E]
Variant Images
![100.5cr-XY [90760000E] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/90760000E.jpg)
![100.5cr-XY [90760000E] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/90760000E_1.jpg)
Product Details
The 100.5cr series represents the thinnest line of crossed roller stages on the market today. Their slim design is ideal for applications in which space or height is critical. All three sizes are available in X- XY- or XYZ-axis versions. Each axis has a non-influencing foil lock which virtually guarantees that the first adjustment is the last one. The foil lock has matching mounting holes on the opposite edge for maximum access flexibility. Depending on the sensitivity of the setup either 8-80TPI or 8-100TPI adjustment screws or SM-1 micrometers can be used with these stages. Angle brackets are included in assemblies and may also be purchased separately.
Product Features:
- Low profile design
- Non-influencing lock
- High load crossed roller bearings
- Vacuum compatible versions available
- RoHS compliant
Performance Specifications:
- Travel Range: 1.0 inch (25.4mm)
- Maximum Horizontal axis Load: 10 lb
- Maximum Vertical axis Load: 4 lb
- Resolution
- With 80TPI adjustment screw: 5 µm
- With 100TPI adjustment screw: submicron

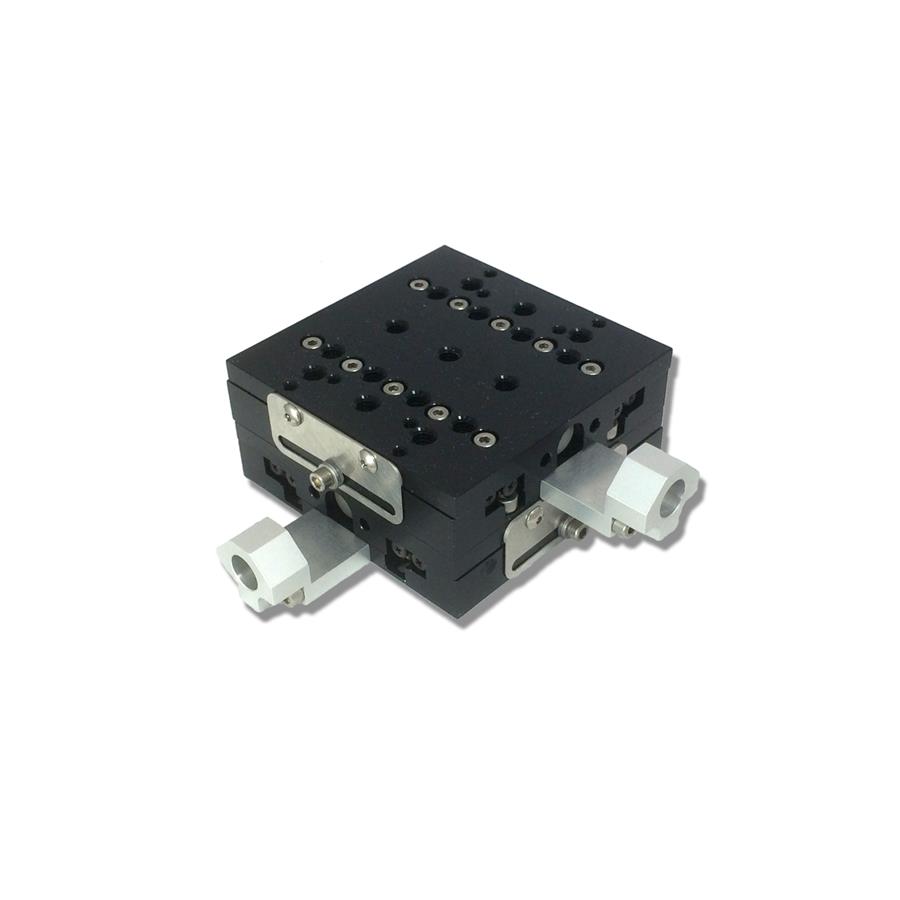

100.5cr-XY M [90760000M]
Variant Images
![100.5cr-XY M [90760000M] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/90760000M.jpg)
![100.5cr-XY M [90760000M] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/90760000M_1.jpg)
Product Details
The 100.5cr series represents the thinnest line of crossed roller stages on the market today. Their slim design is ideal for applications in which space or height is critical. All three sizes are available in X- XY- or XYZ-axis versions. Each axis has a non-influencing foil lock which virtually guarantees that the first adjustment is the last one. The foil lock has matching mounting holes on the opposite edge for maximum access flexibility. Depending on the sensitivity of the setup either 8-80TPI or 8-100TPI adjustment screws or SM-1 micrometers can be used with these stages. Angle brackets are included in assemblies and may also be purchased separately.
Product Features:
- Low profile design
- Non-influencing lock
- High load crossed roller bearings
- Vacuum compatible versions available
- RoHS compliant
Performance Specifications:
- Travel Range: 1.0 inch (25.4mm)
- Maximum Horizontal axis Load: 10 lb
- Maximum Vertical axis Load: 4 lb
- Resolution
- With 80TPI adjustment screw: 5 µm
- With 100TPI adjustment screw: submicron

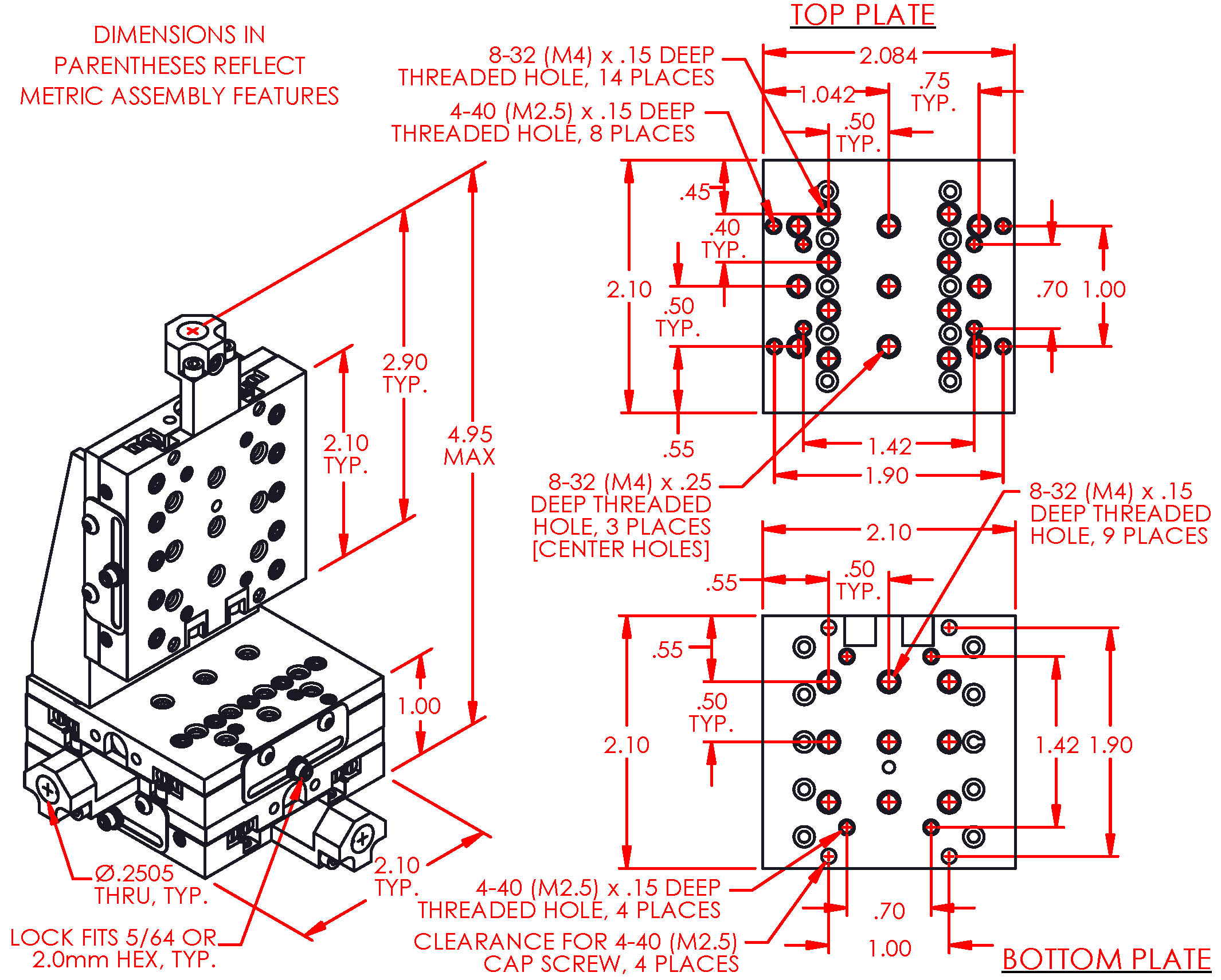

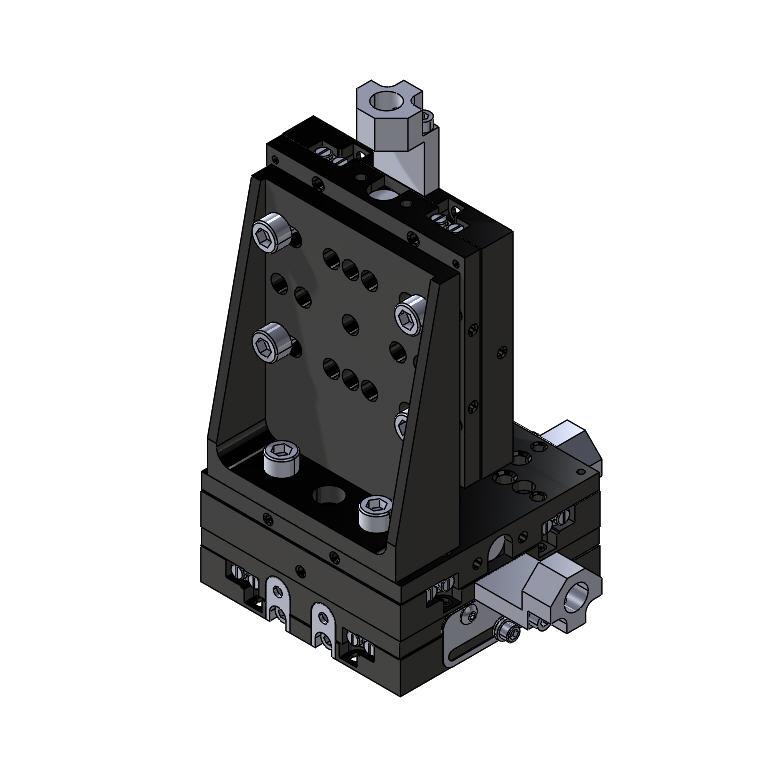

100.5cr-XYZL [90780000E]
Variant Images
![100.5cr-XYZL [90780000E] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/90780000E.jpg)
![100.5cr-XYZL [90780000E] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/90780000E_1.jpg)
Product Details
The 100.5cr series represents the thinnest line of crossed roller stages on the market today. Their slim design is ideal for applications in which space or height is critical. All three sizes are available in X- XY- or XYZ-axis versions. Each axis has a non-influencing foil lock which virtually guarantees that the first adjustment is the last one. The foil lock has matching mounting holes on the opposite edge for maximum access flexibility. Depending on the sensitivity of the setup either 8-80TPI or 8-100TPI adjustment screws or SM-1 micrometers can be used with these stages. Angle brackets are included in assemblies and may also be purchased separately.
Product Features:
- Low profile design
- Non-influencing lock
- High load crossed roller bearings
- Vacuum compatible versions available
- RoHS compliant
Performance Specifications:
- Travel Range: 1.0 inch (25.4mm)
- Maximum Horizontal axis Load: 10 lb
- Maximum Vertical axis Load: 4 lb
- Resolution
- With 80TPI adjustment screw: 5 µm
- With 100TPI adjustment screw: submicron
100.5cr-XYZL M [90780000M]
Variant Images
![100.5cr-XYZL M [90780000M] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/90780000M.jpg)
![100.5cr-XYZL M [90780000M] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/90780000M_1.jpg)
Product Details
The 100.5cr series represents the thinnest line of crossed roller stages on the market today. Their slim design is ideal for applications in which space or height is critical. All three sizes are available in X- XY- or XYZ-axis versions. Each axis has a non-influencing foil lock which virtually guarantees that the first adjustment is the last one. The foil lock has matching mounting holes on the opposite edge for maximum access flexibility. Depending on the sensitivity of the setup either 8-80TPI or 8-100TPI adjustment screws or SM-1 micrometers can be used with these stages. Angle brackets are included in assemblies and may also be purchased separately.
Product Features:
- Low profile design
- Non-influencing lock
- High load crossed roller bearings
- Vacuum compatible versions available
- RoHS compliant
Performance Specifications:
- Travel Range: 1.0 inch (25.4mm)
- Maximum Horizontal axis Load: 10 lb
- Maximum Vertical axis Load: 4 lb
- Resolution
- With 80TPI adjustment screw: 5 µm
- With 100TPI adjustment screw: submicron

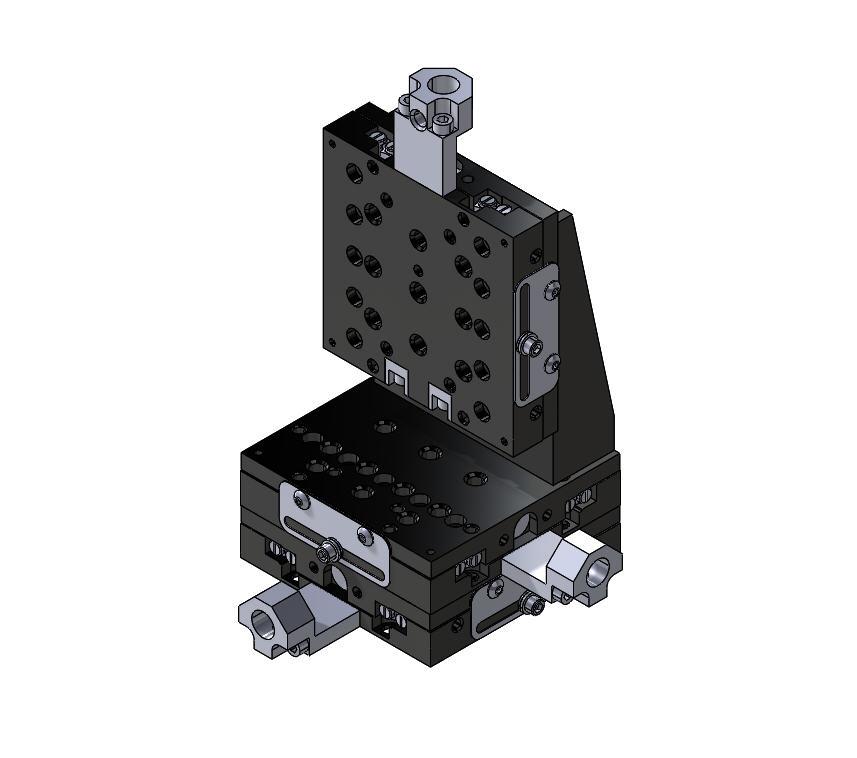

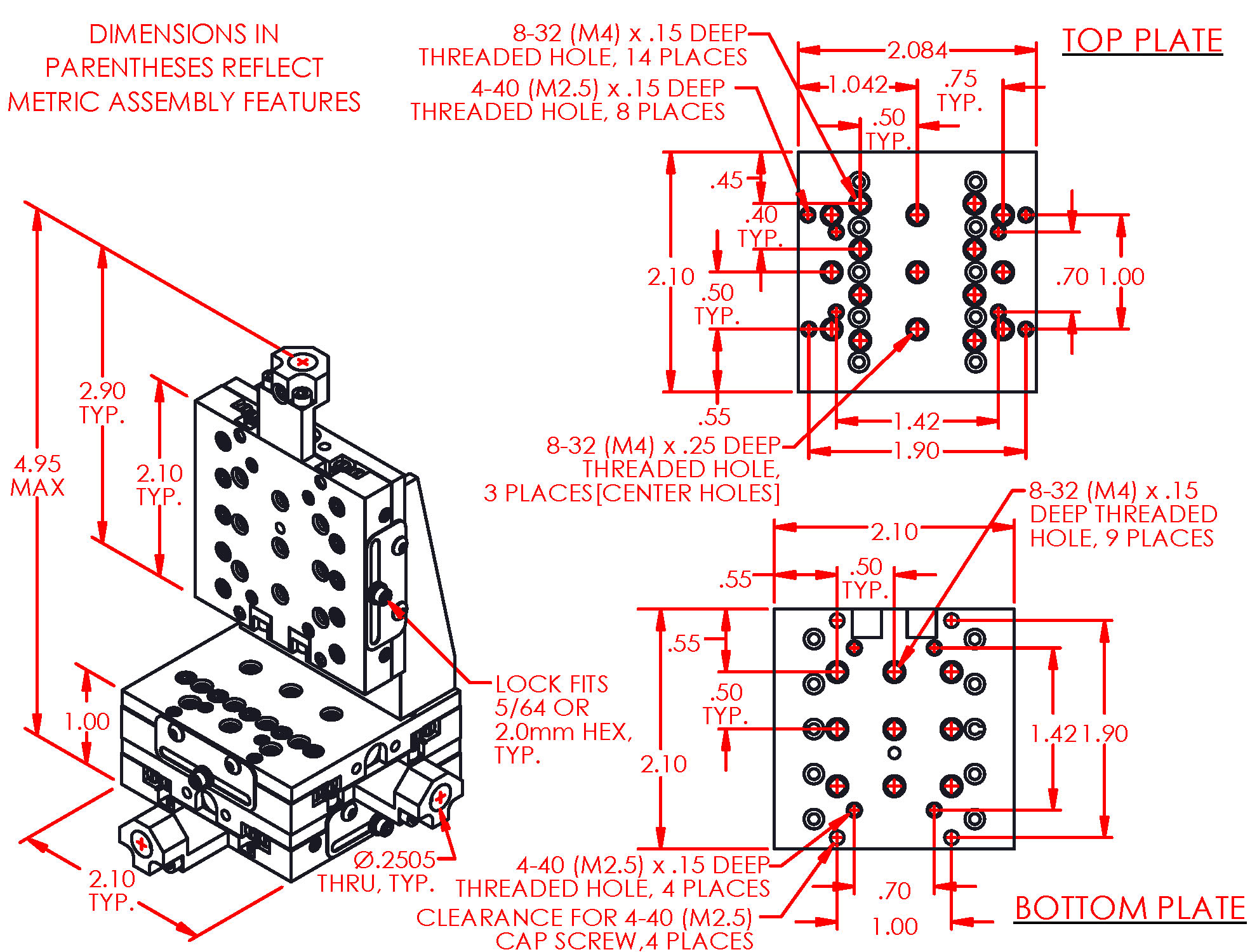

100.5cr-XYZR [90770000E]
Variant Images
![100.5cr-XYZR [90770000E] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/90770000E.jpg)
![100.5cr-XYZR [90770000E] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/90770000E_1.jpg)
Product Details
The 100.5cr series represents the thinnest line of crossed roller stages on the market today. Their slim design is ideal for applications in which space or height is critical. All three sizes are available in X- XY- or XYZ-axis versions. Each axis has a non-influencing foil lock which virtually guarantees that the first adjustment is the last one. The foil lock has matching mounting holes on the opposite edge for maximum access flexibility. Depending on the sensitivity of the setup either 8-80TPI or 8-100TPI adjustment screws or SM-1 micrometers can be used with these stages. Angle brackets are included in assemblies and may also be purchased separately.
Product Features:
- Low profile design
- Non-influencing lock
- High load crossed roller bearings
- Vacuum compatible versions available
- RoHS compliant
Performance Specifications:
- Travel Range: 1.0 inch (25.4mm)
- Maximum Horizontal axis Load: 10 lb
- Maximum Vertical axis Load: 4 lb
- Resolution
- With 80TPI adjustment screw: 5 µm
- With 100TPI adjustment screw: submicron
100.5cr-XYZR M [90770000M]
Variant Images
![100.5cr-XYZR M [90770000M] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/90770000M.jpg)
![100.5cr-XYZR M [90770000M] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/90770000M_1.jpg)
Product Details
The 100.5cr series represents the thinnest line of crossed roller stages on the market today. Their slim design is ideal for applications in which space or height is critical. All three sizes are available in X- XY- or XYZ-axis versions. Each axis has a non-influencing foil lock which virtually guarantees that the first adjustment is the last one. The foil lock has matching mounting holes on the opposite edge for maximum access flexibility. Depending on the sensitivity of the setup either 8-80TPI or 8-100TPI adjustment screws or SM-1 micrometers can be used with these stages. Angle brackets are included in assemblies and may also be purchased separately.
Product Features:
- Low profile design
- Non-influencing lock
- High load crossed roller bearings
- Vacuum compatible versions available
- RoHS compliant
Performance Specifications:
- Travel Range: 1.0 inch (25.4mm)
- Maximum Horizontal axis Load: 10 lb
- Maximum Vertical axis Load: 4 lb
- Resolution
- With 80TPI adjustment screw: 5 µm
- With 100TPI adjustment screw: submicron
