7600 Series Stage
₪4,542.93 - ₪13,007.90
7600 Series Stage
The 7600 motorized crossed roller bearing translation stage offers exceptionally smooth linear travel. 7600 stages are an integrated version of our 1600 series crossed roller translation stage. They use a precision preloaded lead screw to ensure drift-free operation. High-speed versions available upon request. Our e series and MC2010 controllers drive the stage through a closed loop interface between the controller and the motor encoder. The closed loop connection ensures 0.2 µm and 0.1 µm resolution, respectively. The encoder coupling also enables the use of the DR1000 digital readout for repeated or relative positioning requirements.
Product Features
- 1.7 mm/second rapid positioning
- Quiet running DC servo motors
- Rotatable mounting base
- Vacuum compatible versions available upon request
Performance Specifications
- Maximum horizontal axis load: 10 lbs
- Maximum vertical axis load: 4 lbs
- Travel: 20 mm
- Backlash: < 5 µm
- Point to point accuracy: ¬¨¬®¬¨¬± 2 µm
Choose options to see performance specifications and downloads.
Expand a variant below to view variant-specific images, product details, downloadable files, and additional technical details.

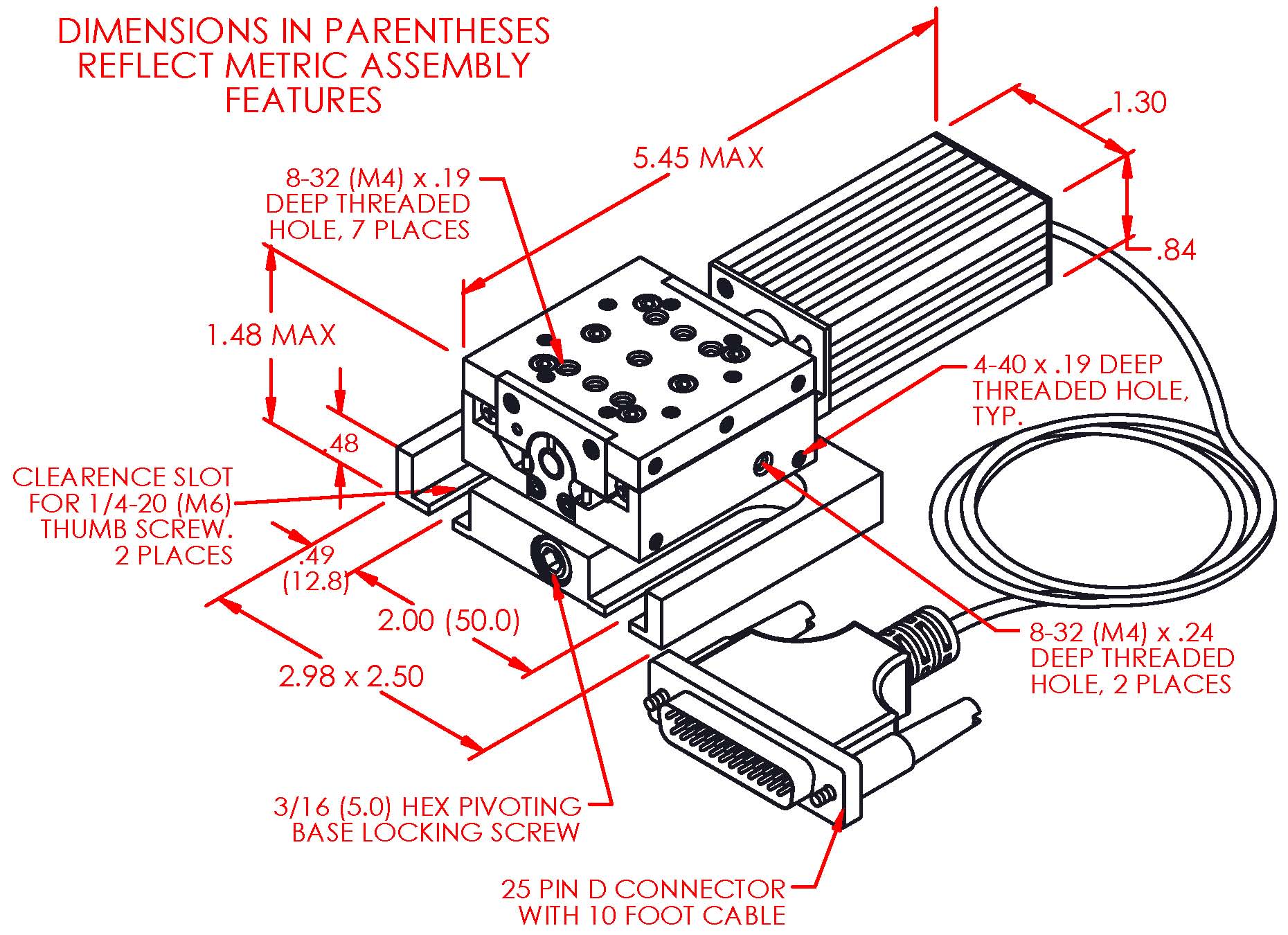

7600-X [70700000E]
Variant Images
![7600-X [70700000E] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/70700000E.jpg)
![7600-X [70700000E] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/70700000E_1.jpg)
Product Details
The 7600 motorized crossed roller bearing translation stage offers exceptionally smooth linear travel. 7600 stages are an integrated version of our 1600 series crossed roller translation stage. They use a precision preloaded lead screw to ensure drift-free operation. High-speed versions available upon request. Our e series and MC2010 controllers drive the stage through a closed loop interface between the controller and the motor encoder. The closed loop connection ensures 0.2 µm and 0.1 µm resolution respectively. The encoder coupling also enables the use of the DR1000 digital readout for repeated or relative positioning requirements.
Product Features:
- 1.7 mm/second rapid positioning
- Quiet running DC servo motors
- Rotatable mounting base
- Vacuum compatible versions available upon request
- RoHS compliant
- CE compliant
Performance Specifications:
- Maximum horizontal axis load: 10 lbs
- Maximum vertical axis load: 4 lbs
- Travel: 20 mm
- Backlash: < 5 µm
- Point to point accuracy 2 µm

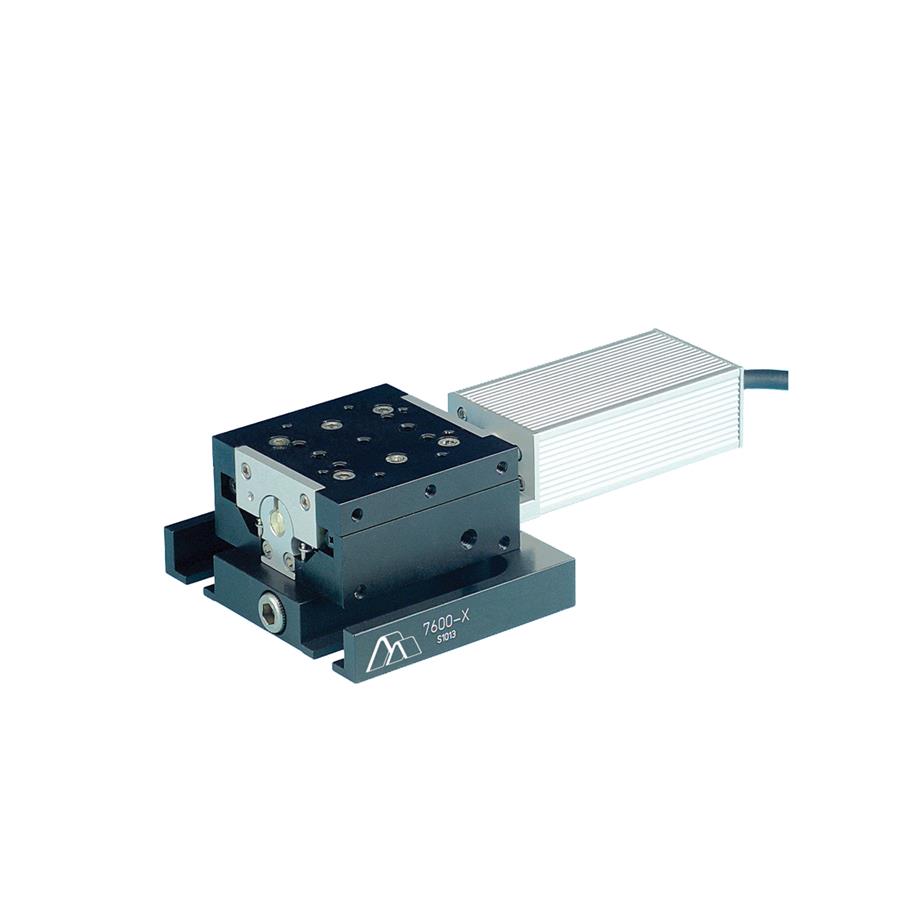

7600-X M [70700000M]
Variant Images
![7600-X M [70700000M] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/70700000M.jpg)
![7600-X M [70700000M] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/70700000M_1.jpg)
Product Details
The 7600 motorized crossed roller bearing translation stage offers exceptionally smooth linear travel. 7600 stages are an integrated version of our 1600 series crossed roller translation stage. They use a precision preloaded lead screw to ensure drift-free operation. High-speed versions available upon request. Our e series and MC2010 controllers drive the stage through a closed loop interface between the controller and the motor encoder. The closed loop connection ensures 0.2 µm and 0.1 µm resolution respectively. The encoder coupling also enables the use of the DR1000 digital readout for repeated or relative positioning requirements.
Product Features:
- 1.7 mm/second rapid positioning
- Quiet running DC servo motors
- Rotatable mounting base
- Vacuum compatible versions available upon request
- RoHS compliant
- CE compliant
Performance Specifications:
- Maximum horizontal axis load: 10 lbs
- Maximum vertical axis load: 4 lbs
- Travel: 20 mm
- Backlash: < 5 µm
- Point to point accuracy 2 µm
7600-XY [70710000E]
Variant Images
![7600-XY [70710000E] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/70710000E.jpg)
![7600-XY [70710000E] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/70710000E_1.jpg)
Product Details
The 7600 motorized crossed roller bearing translation stage offers exceptionally smooth linear travel. 7600 stages are an integrated version of our 1600 series crossed roller translation stage. They use a precision preloaded lead screw to ensure drift-free operation. High-speed versions available upon request. Our e series and MC2010 controllers drive the stage through a closed loop interface between the controller and the motor encoder. The closed loop connection ensures 0.2 µm and 0.1 µm resolution respectively. The encoder coupling also enables the use of the DR1000 digital readout for repeated or relative positioning requirements.
Product Features:
- 1.7 mm/second rapid positioning
- Quiet running DC servo motors
- Rotatable mounting base
- Vacuum compatible versions available upon request
- RoHS compliant
- CE compliant
Performance Specifications:
- Maximum horizontal axis load: 10 lbs
- Maximum vertical axis load: 4 lbs
- Travel: 20 mm
- Backlash: < 5 µm
- Point to point accuracy 2 µm

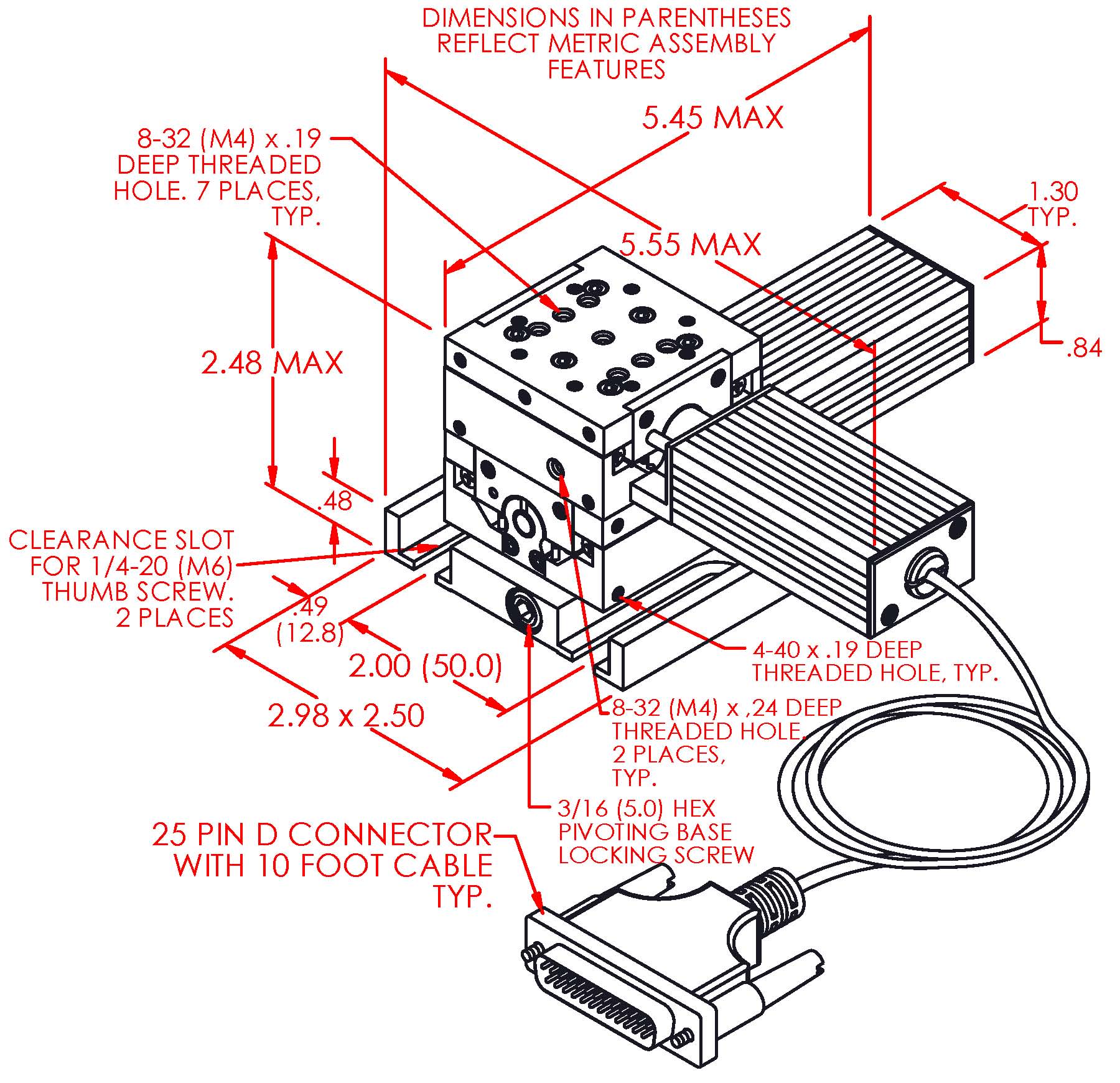

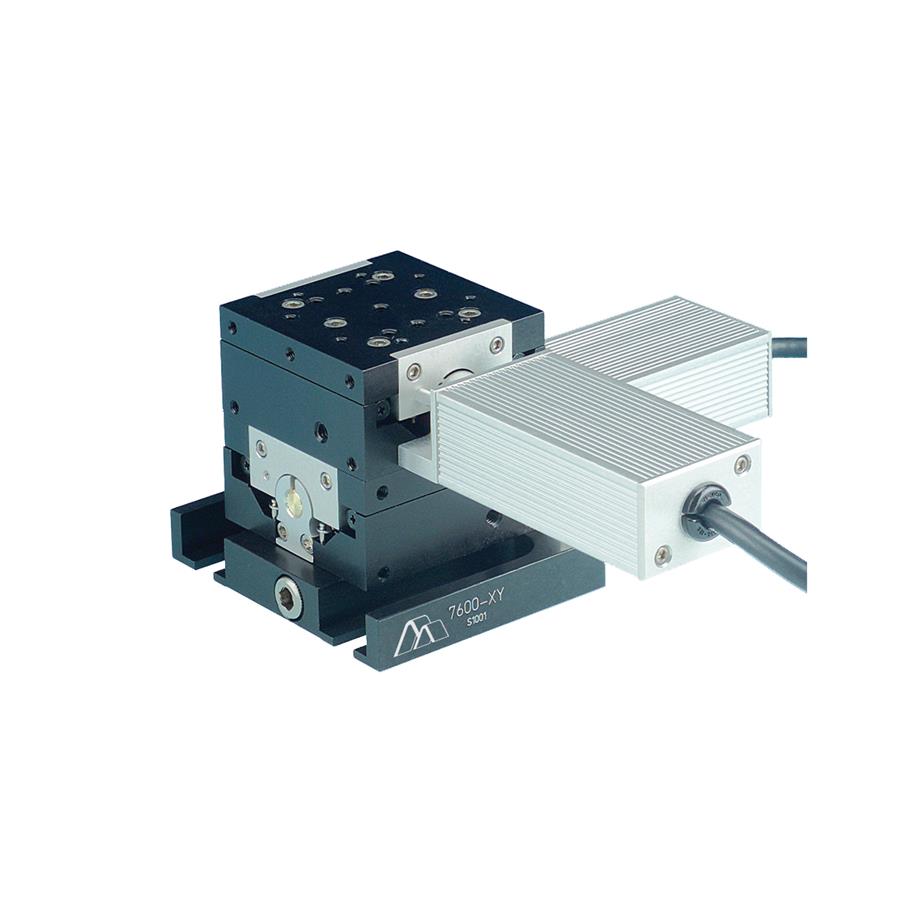

7600-XY M [70710000M]
Variant Images
![7600-XY M [70710000M] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/70710000M.jpg)
![7600-XY M [70710000M] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/70710000M_1.jpg)
Product Details
The 7600 motorized crossed roller bearing translation stage offers exceptionally smooth linear travel. 7600 stages are an integrated version of our 1600 series crossed roller translation stage. They use a precision preloaded lead screw to ensure drift-free operation. High-speed versions available upon request. Our e series and MC2010 controllers drive the stage through a closed loop interface between the controller and the motor encoder. The closed loop connection ensures 0.2 µm and 0.1 µm resolution respectively. The encoder coupling also enables the use of the DR1000 digital readout for repeated or relative positioning requirements.
Product Features:
- 1.7 mm/second rapid positioning
- Quiet running DC servo motors
- Rotatable mounting base
- Vacuum compatible versions available upon request
- RoHS compliant
- CE compliant
Performance Specifications:
- Maximum horizontal axis load: 10 lbs
- Maximum vertical axis load: 4 lbs
- Travel: 20 mm
- Backlash: < 5 µm
- Point to point accuracy 2 µm
7600-XYZL [70730000E]
Variant Images
![7600-XYZL [70730000E] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/70730000E.jpg)
![7600-XYZL [70730000E] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/70730000E_1.jpg)
Product Details
The 7600 motorized crossed roller bearing translation stage offers exceptionally smooth linear travel. 7600 stages are an integrated version of our 1600 series crossed roller translation stage. They use a precision preloaded lead screw to ensure drift-free operation. High-speed versions available upon request. Our e series and MC2010 controllers drive the stage through a closed loop interface between the controller and the motor encoder. The closed loop connection ensures 0.2 µm and 0.1 µm resolution respectively. The encoder coupling also enables the use of the DR1000 digital readout for repeated or relative positioning requirements.
Product Features:
- 1.7 mm/second rapid positioning
- Quiet running DC servo motors
- Rotatable mounting base
- Vacuum compatible versions available upon request
- RoHS compliant
- CE compliant
Performance Specifications:
- Maximum horizontal axis load: 10 lbs
- Maximum vertical axis load: 4 lbs
- Travel: 20 mm
- Backlash: < 5 µm
- Point to point accuracy 2 µm

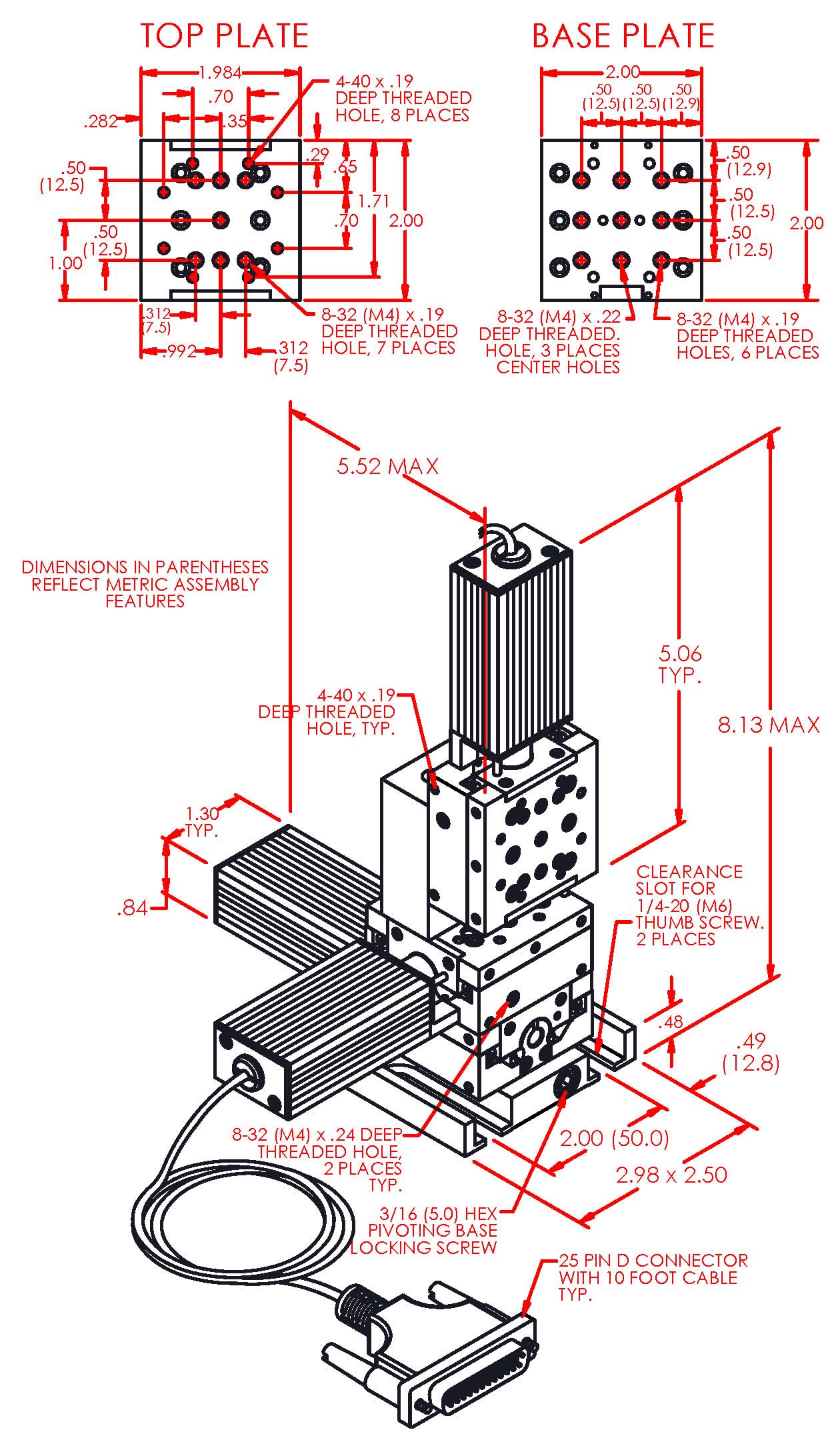

7600-XYZL M [70730000M]
Variant Images
![7600-XYZL M [70730000M] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/70730000M.jpg)
![7600-XYZL M [70730000M] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/70730000M_1.jpg)
Product Details
The 7600 motorized crossed roller bearing translation stage offers exceptionally smooth linear travel. 7600 stages are an integrated version of our 1600 series crossed roller translation stage. They use a precision preloaded lead screw to ensure drift-free operation. High-speed versions available upon request. Our e series and MC2010 controllers drive the stage through a closed loop interface between the controller and the motor encoder. The closed loop connection ensures 0.2 µm and 0.1 µm resolution respectively. The encoder coupling also enables the use of the DR1000 digital readout for repeated or relative positioning requirements.
Product Features:
- 1.7 mm/second rapid positioning
- Quiet running DC servo motors
- Rotatable mounting base
- Vacuum compatible versions available upon request
- RoHS compliant
- CE compliant
Performance Specifications:
- Maximum horizontal axis load: 10 lbs
- Maximum vertical axis load: 4 lbs
- Travel: 20 mm
- Backlash: < 5 µm
- Point to point accuracy 2 µm

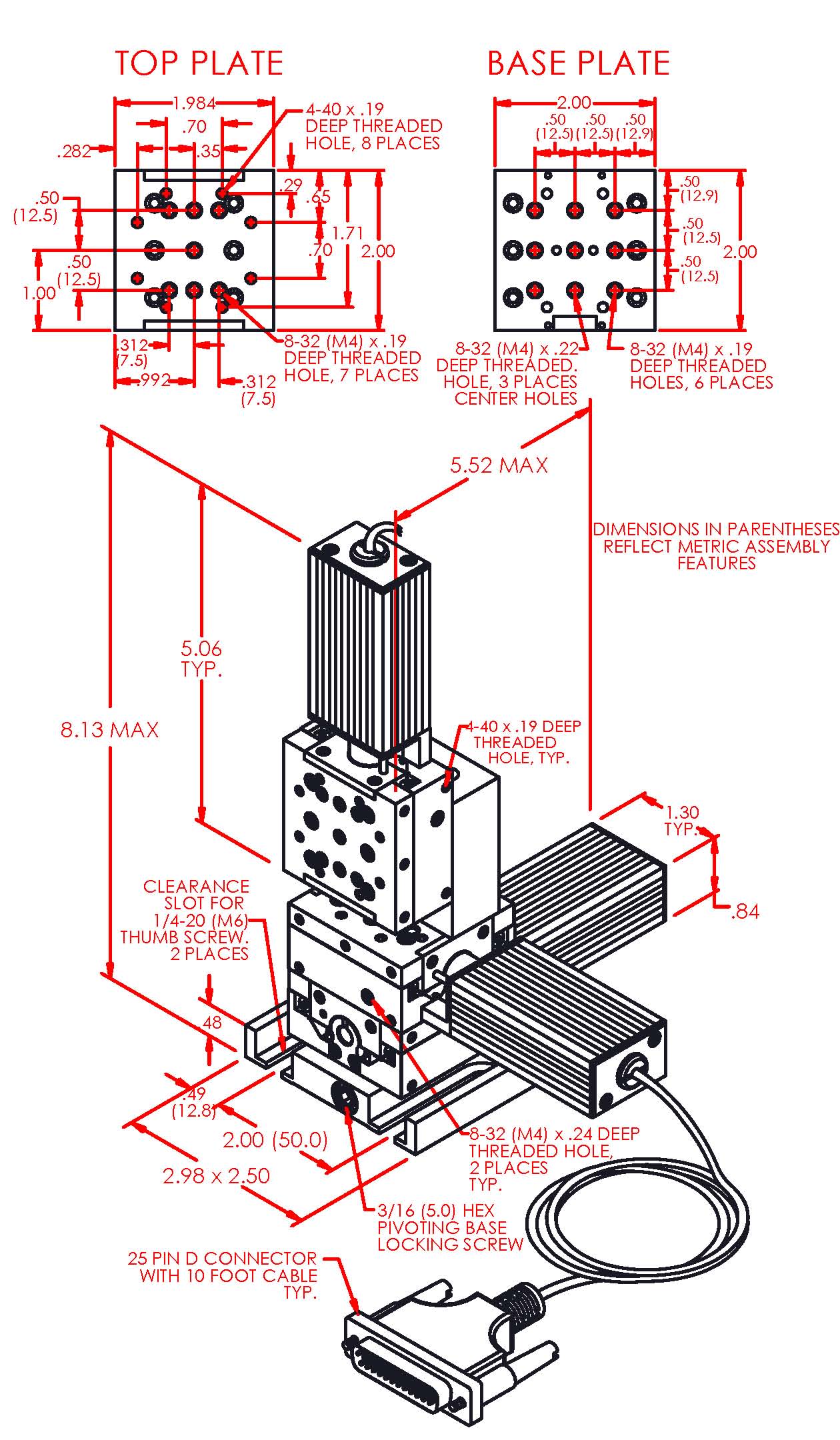

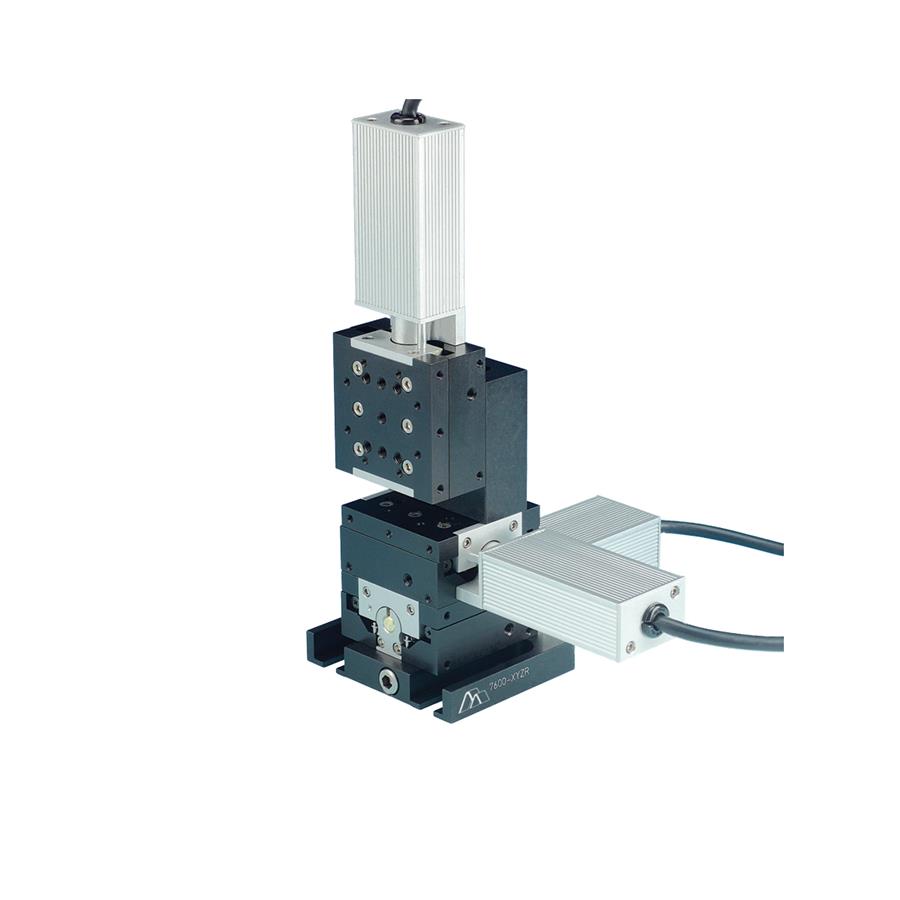

7600-XYZR [70720000E]
Variant Images
![7600-XYZR [70720000E] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/70720000E.jpg)
![7600-XYZR [70720000E] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/70720000E_1.jpg)
Product Details
The 7600 motorized crossed roller bearing translation stage offers exceptionally smooth linear travel. 7600 stages are an integrated version of our 1600 series crossed roller translation stage. They use a precision preloaded lead screw to ensure drift-free operation. High-speed versions available upon request. Our e series and MC2010 controllers drive the stage through a closed loop interface between the controller and the motor encoder. The closed loop connection ensures 0.2 µm and 0.1 µm resolution respectively. The encoder coupling also enables the use of the DR1000 digital readout for repeated or relative positioning requirements.
Product Features:
- 1.7 mm/second rapid positioning
- Quiet running DC servo motors
- Rotatable mounting base
- Vacuum compatible versions available upon request
- RoHS compliant
- CE compliant
Performance Specifications:
- Maximum horizontal axis load: 10 lbs
- Maximum vertical axis load: 4 lbs
- Travel: 20 mm
- Backlash: < 5 µm
- Point to point accuracy 2 µm
7600-XYZR M [70720000M]
Variant Images
![7600-XYZR M [70720000M] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/70720000M.jpg)
![7600-XYZR M [70720000M] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/70720000M_1.jpg)
Product Details
The 7600 motorized crossed roller bearing translation stage offers exceptionally smooth linear travel. 7600 stages are an integrated version of our 1600 series crossed roller translation stage. They use a precision preloaded lead screw to ensure drift-free operation. High-speed versions available upon request. Our e series and MC2010 controllers drive the stage through a closed loop interface between the controller and the motor encoder. The closed loop connection ensures 0.2 µm and 0.1 µm resolution respectively. The encoder coupling also enables the use of the DR1000 digital readout for repeated or relative positioning requirements.
Product Features:
- 1.7 mm/second rapid positioning
- Quiet running DC servo motors
- Rotatable mounting base
- Vacuum compatible versions available upon request
- RoHS compliant
- CE compliant
Performance Specifications:
- Maximum horizontal axis load: 10 lbs
- Maximum vertical axis load: 4 lbs
- Travel: 20 mm
- Backlash: < 5 µm
- Point to point accuracy 2 µm
