IXF mb Series Mounting Block
SKU:
IXF MB SERIES
Name:
MATERIAL:
ALUMINUM
MATERIAL:
STAINLESS STEEL
MOUNTING ANGLE:
90 DEG
OPTIC SIZE:
.50IN
OPTIC SIZE:
.75/1.0IN
OPTIC SIZE:
2.0IN
OPTIC SIZE:
3.0IN
OPTIC SIZE:
4.0IN
VOLUME:
0.000000
WEIGHT UOM:
LB
$39.86 - $78.30
IXF mb Series Mounting Block
$39.86 - $78.30
IXF mb Series Mounting Block
The IXF.mb series mounting blocks provide an easy and robust method for mounting Siskiyou monolithic flexures. Pin pockets in the base prevent unwanted rotation and positive lateral attachment with pins in place, parts can't shift laterally or experience unwanted rotation. They mount from the top, so access in tight places is simple. If you have a tight optical layout, Siskiyou monolithic flexures and mounting blocks provide the ultimate in stability and vibration resistance.
Product Features
- Stable table-top or AS spacer mounting option for the IXF series flexure mounts
- Two pin holes in bottom mounting surface for OEM registration pins
- Monolithic design and Construction
Choose options to see performance specifications and downloads.
Expand a variant below to view variant-specific images, product details, downloadable files, and additional technical details.

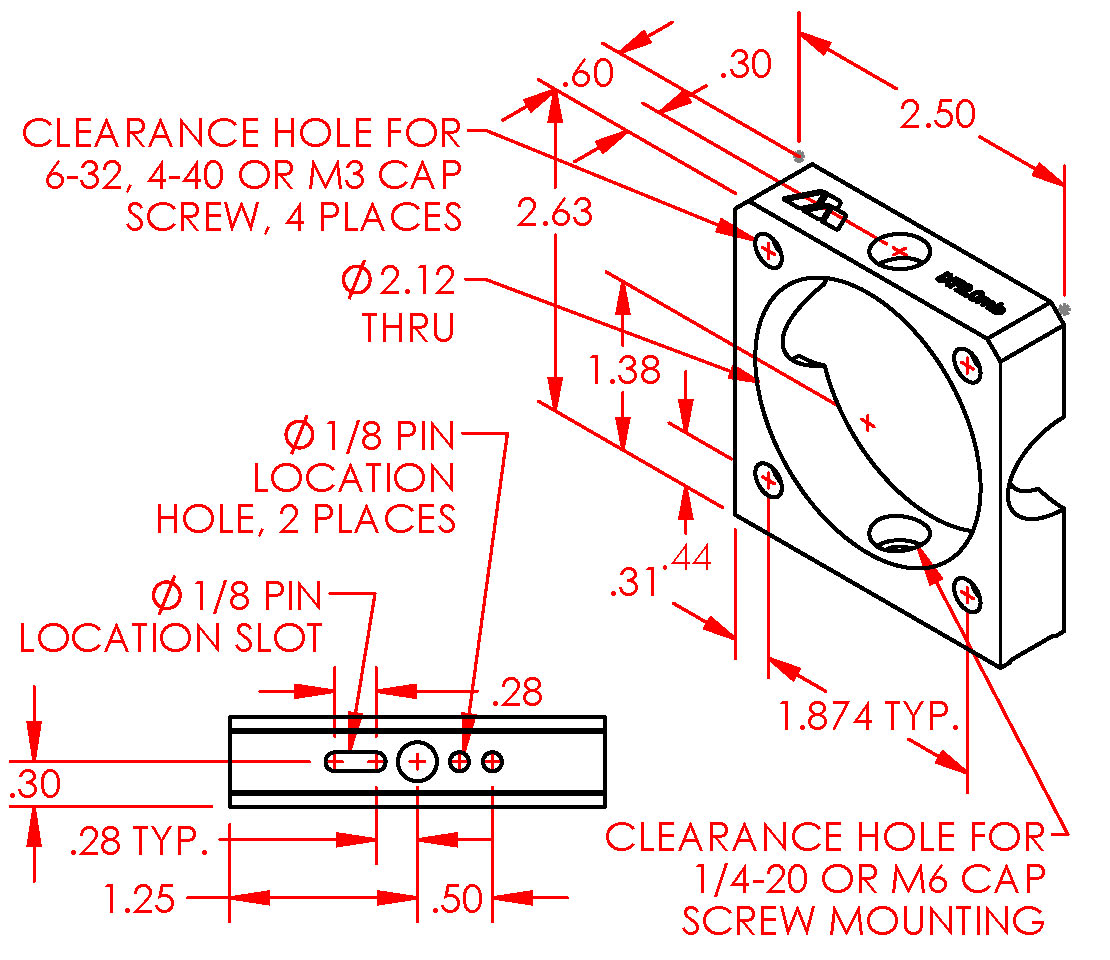

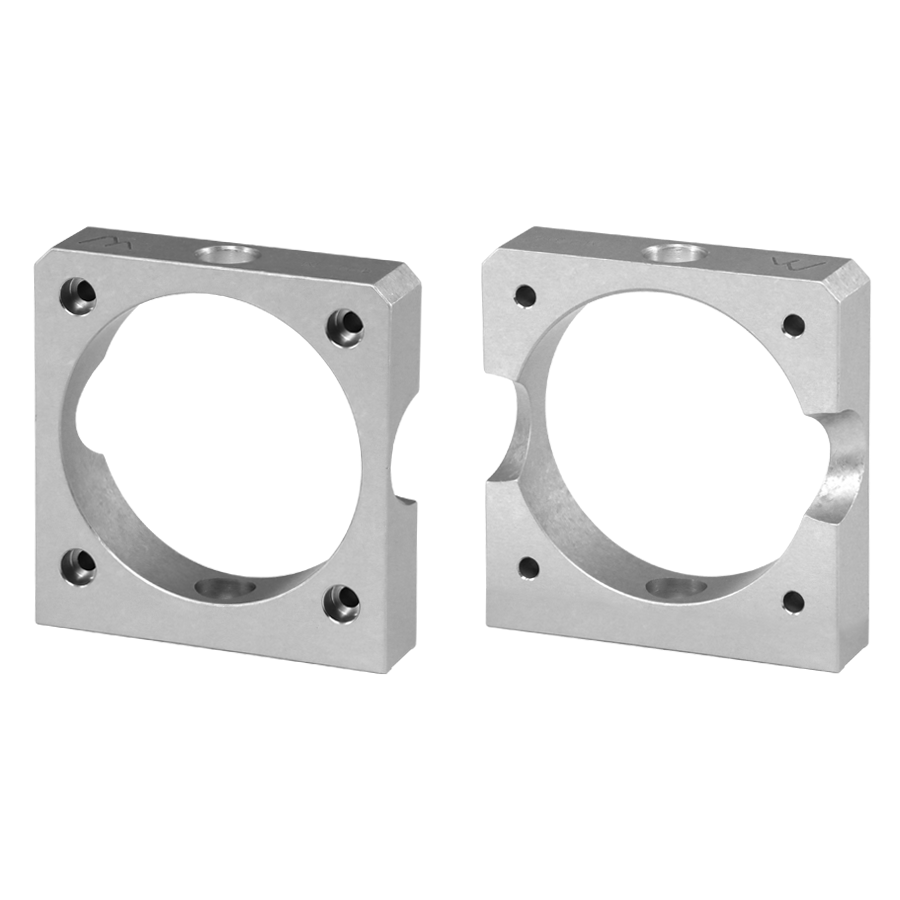

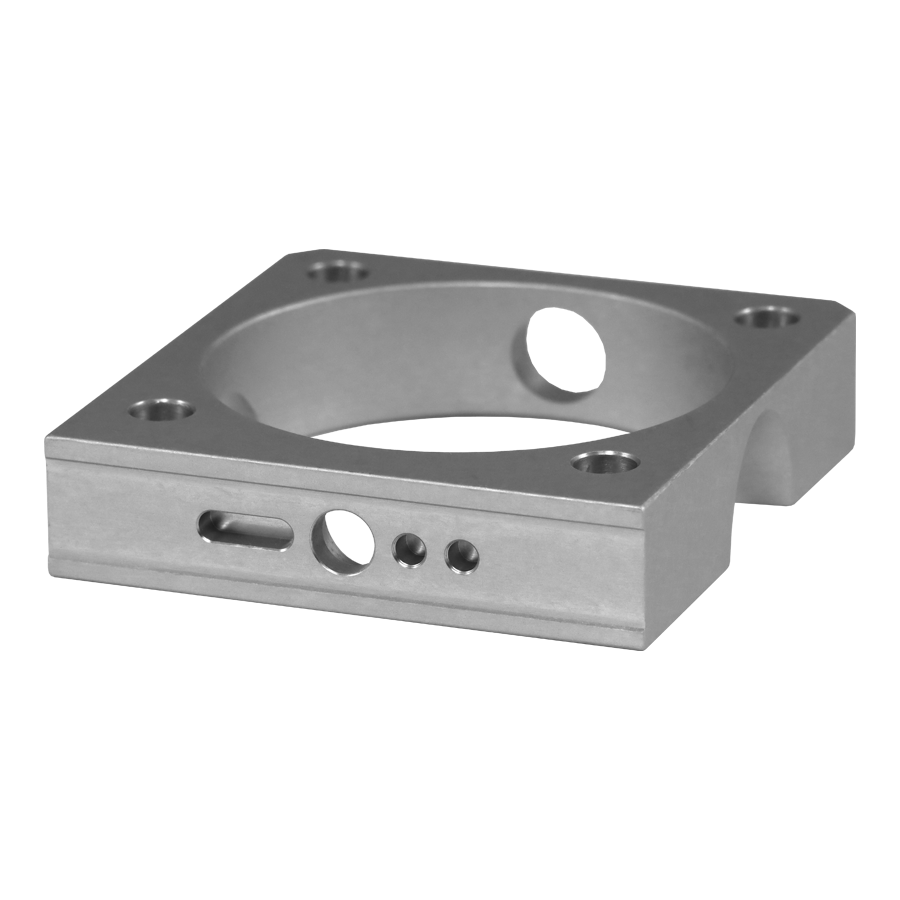

IXF2.0mb [80130000E]
Variant Images
![IXF2.0mb [80130000E] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/80130000E.png)
![IXF2.0mb [80130000E] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/80130000E_1.JPG)
![IXF2.0mb [80130000E] product variant image view 3](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/80130000E_2.png)
Product Details
The IXF2.0mb mounting block provides an easy and robust method for mounting Siskiyou monolithic flexures. Pin pockets in the base prevent unwanted rotation and positive lateral attachment & with pins in place parts can't shift laterally or experience unwanted rotation. They mount from the top so access in tight places is simple. If you have a tight optical layout Siskiyou monolithic flexures and mounting blocks provide the ultimate in stability and vibration resistance.
Product Features:
- Stable table-top or AS spacer mounting option for the IXF series flexure mounts
- Two pin holes in bottom mounting surface for OEM registration pins
- Monolithic design
- Aluminum Construction
- Compatible with Imperial or Metric tapped IXF2.0 and IXF2.0t series flexure mounts
- RoHS compliant

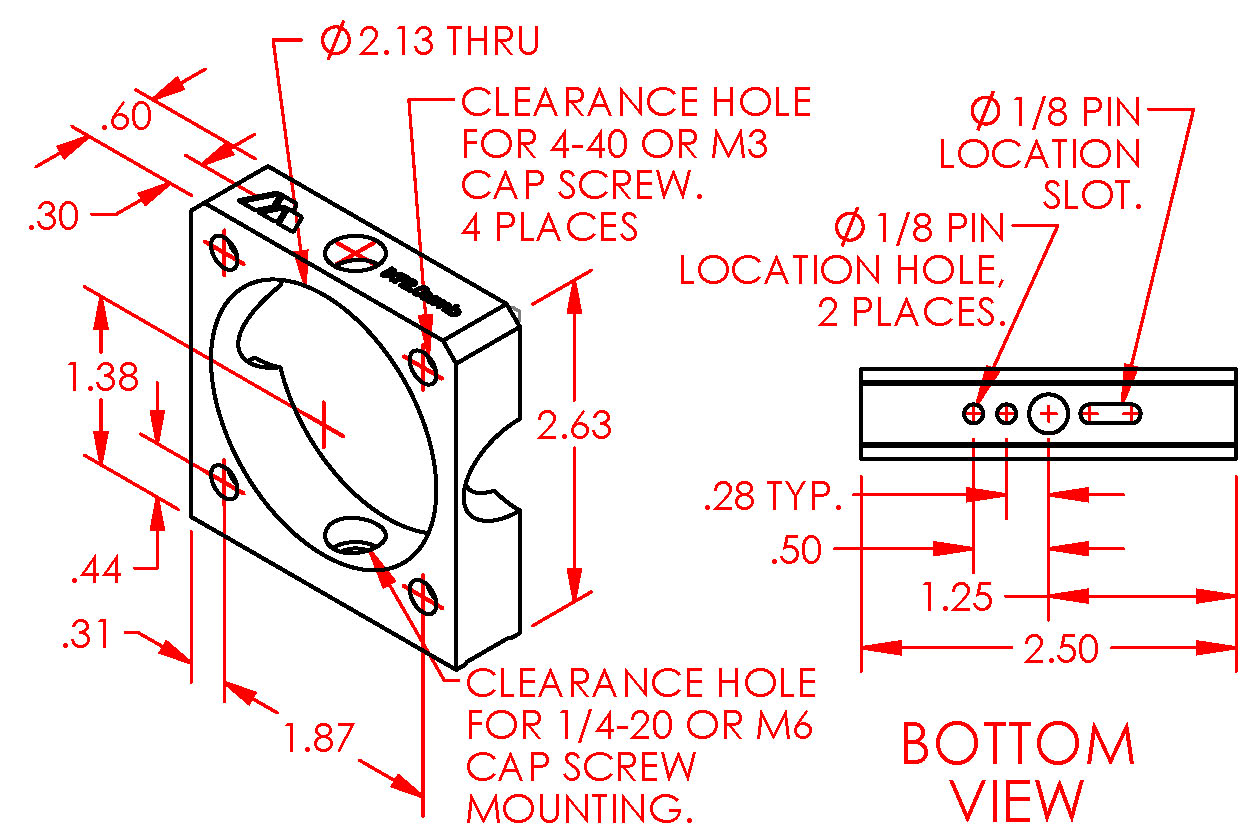

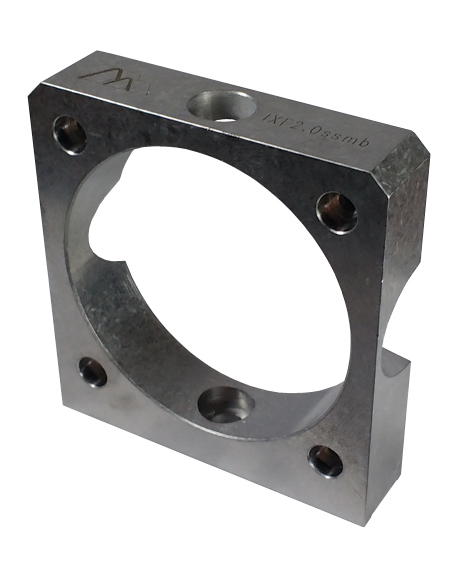

IXF2.0ssmb [80230000E]
Variant Images
![IXF2.0ssmb [80230000E] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/80230000E.jpg)
![IXF2.0ssmb [80230000E] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/80230000E_1.jpg)
Product Details
The IXF2.0ssmb mounting block provides an easy and robust method for mounting Siskiyou monolithic flexures. Pin pockets in the base prevent unwanted rotation and positive lateral attachment & with pins in place parts can't shift laterally or experience unwanted rotation. They mount from the top so access in tight places is simple. If you have a tight optical layout Siskiyou monolithic flexures and mounting blocks provide the ultimate in stability and vibration resistance.
Product Features:
- Stable table-top or AS spacer mounting option for the IXF series flexure mounts
- Two pin holes in bottom mounting surface for OEM registration pins
- Monolithic design
- Stainless Steel Construction
- Compatible with Imperial or Metric tapped IXF2.0 and IXF2.0t series flexure mounts
- RoHS compliant

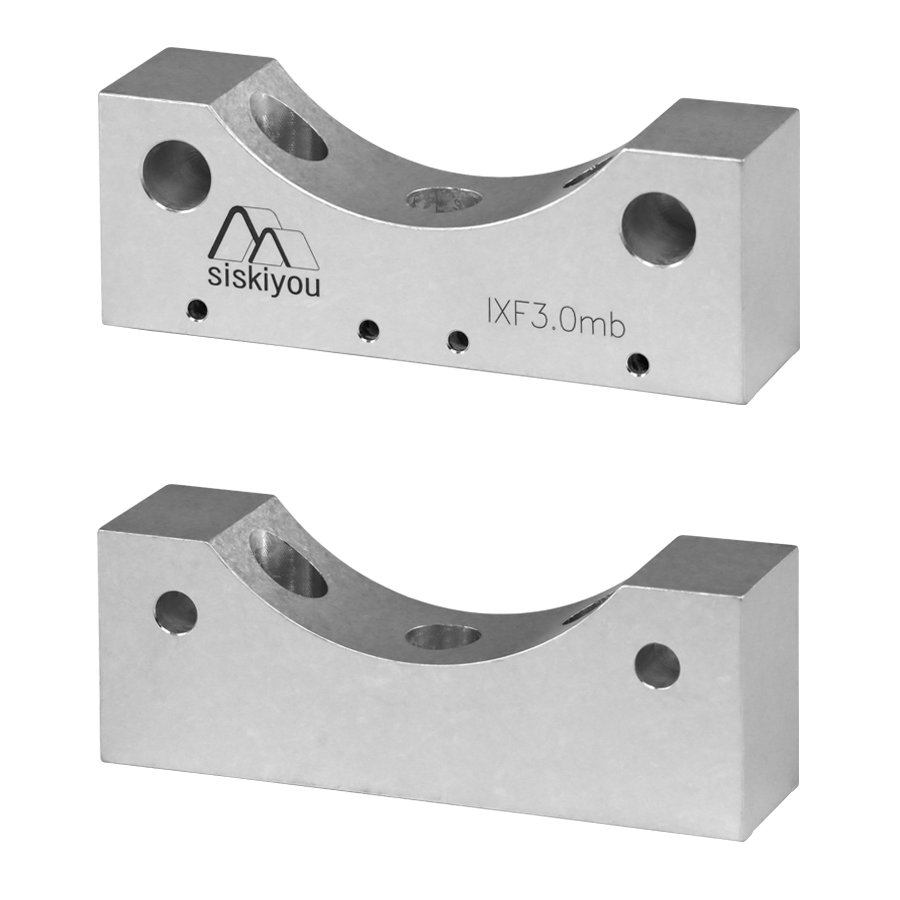

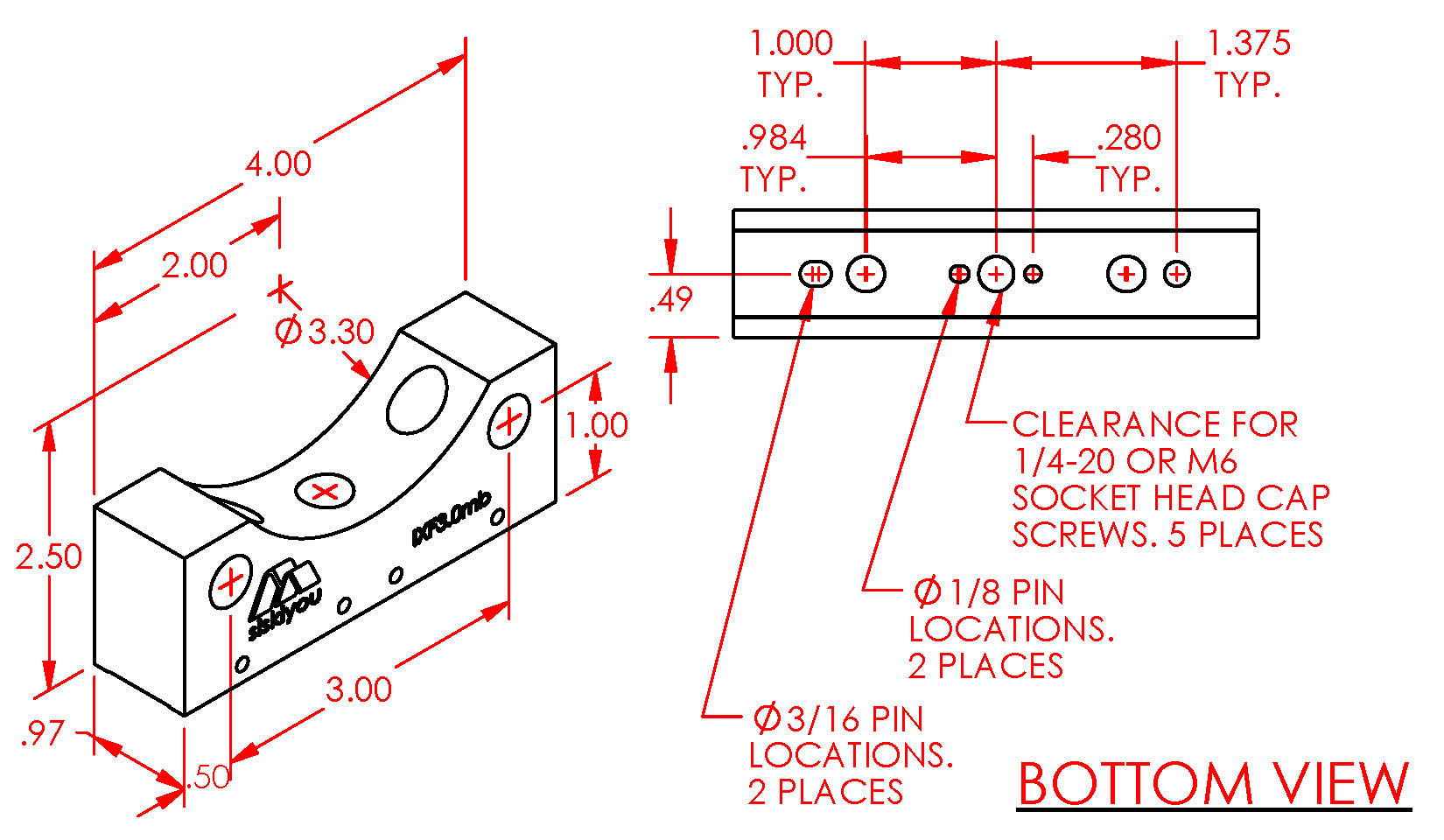

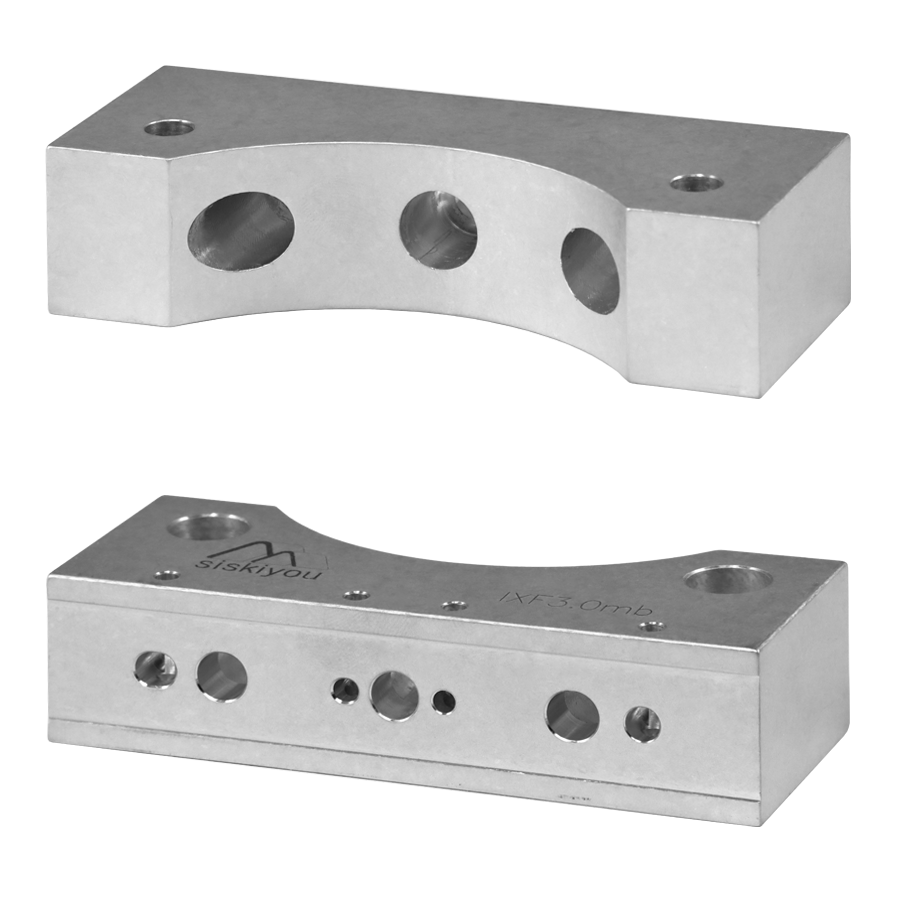

IXF3.0mb [80170000E]
Variant Images
![IXF3.0mb [80170000E] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/80170000E.png)
![IXF3.0mb [80170000E] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/80170000E_1.jpg)
![IXF3.0mb [80170000E] product variant image view 3](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/80170000E_2.png)
Product Details
The IXF3.0mb mounting block provides an easy and robust method for mounting Siskiyou monolithic flexures. Pin pockets in the base prevent unwanted rotation and positive lateral attachment & with pins in place parts can't shift laterally or experience unwanted rotation. They mount from the top so access in tight places is simple. If you have a tight optical layout Siskiyou monolithic flexures and mounting blocks provide the ultimate in stability and vibration resistance.
Product Features:
- Stable table-top or AS spacer mounting option for the IXF series flexure mounts
- Four pin holes in bottom mounting surface for OEM registration pins
- Monolithic design
- Aluminum Construction
- Compatible with IXF3.0 series flexure mounts
- RoHS compliant

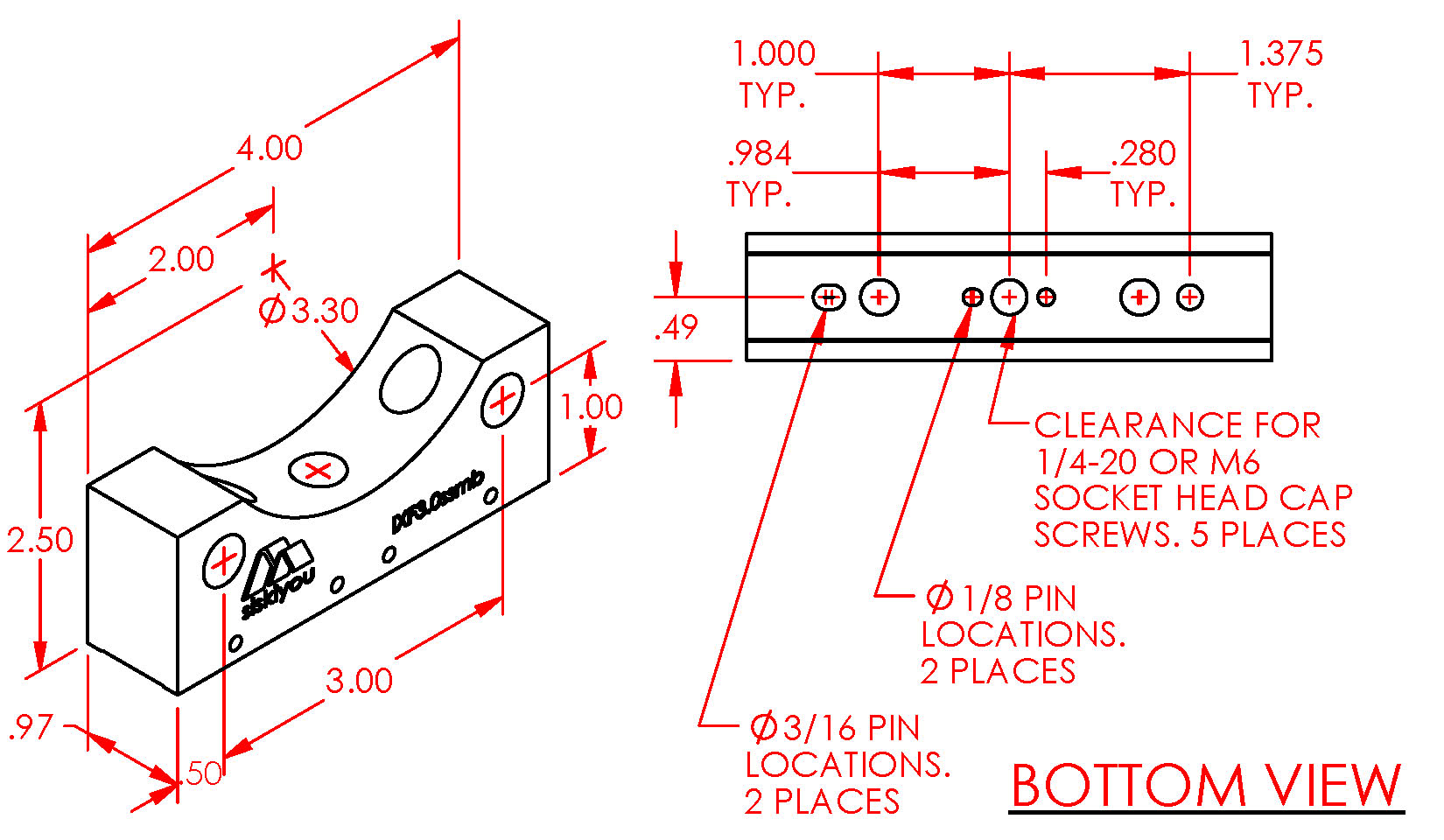

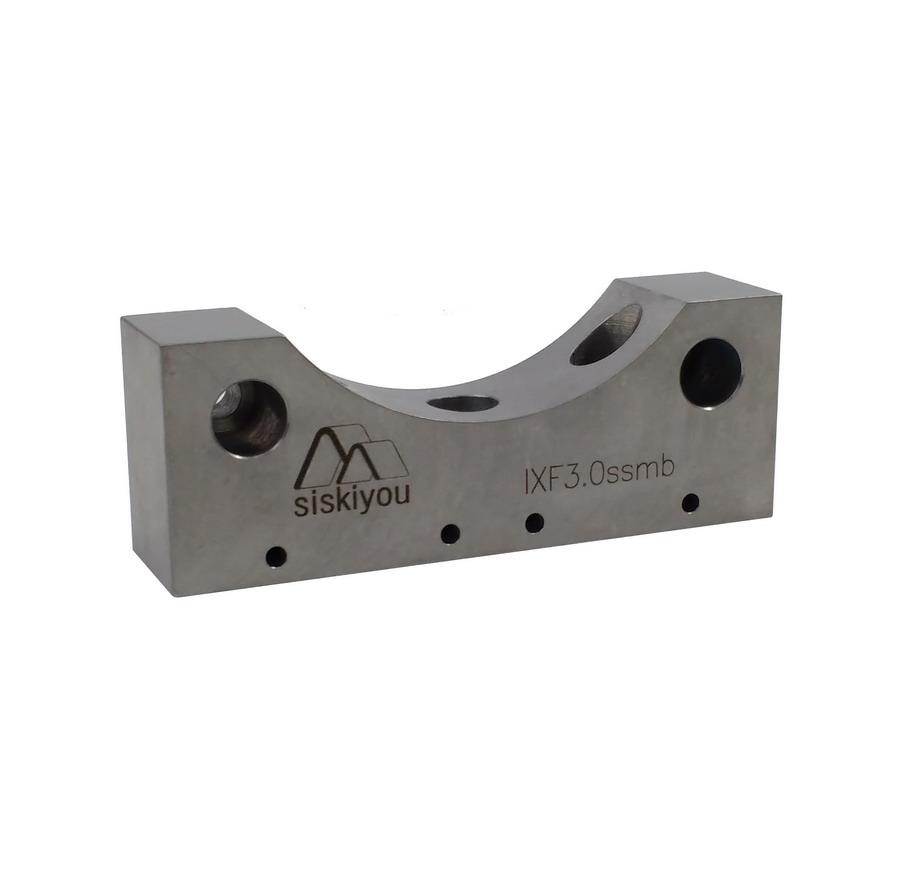

IXF3.0ssmb [80180000E]
Variant Images
![IXF3.0ssmb [80180000E] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/80180000E.jpg)
![IXF3.0ssmb [80180000E] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/80180000E_1.jpg)
Product Details
The IXF3.0ssmb mounting block provides an easy and robust method for mounting Siskiyou monolithic flexures. Pin pockets in the base prevent unwanted rotation and positive lateral attachment & with pins in place parts can't shift laterally or experience unwanted rotation. They mount from the top so access in tight places is simple. If you have a tight optical layout Siskiyou monolithic flexures and mounting blocks provide the ultimate in stability and vibration resistance.
Product Features:
- Stable table-top or AS spacer mounting option for the IXF series flexure mounts
- Four pin holes in bottom mounting surface for OEM registration pins
- Monolithic design
- Stainless Steel Construction
- Compatible with IXF3.0 series flexure mounts
- RoHS compliant

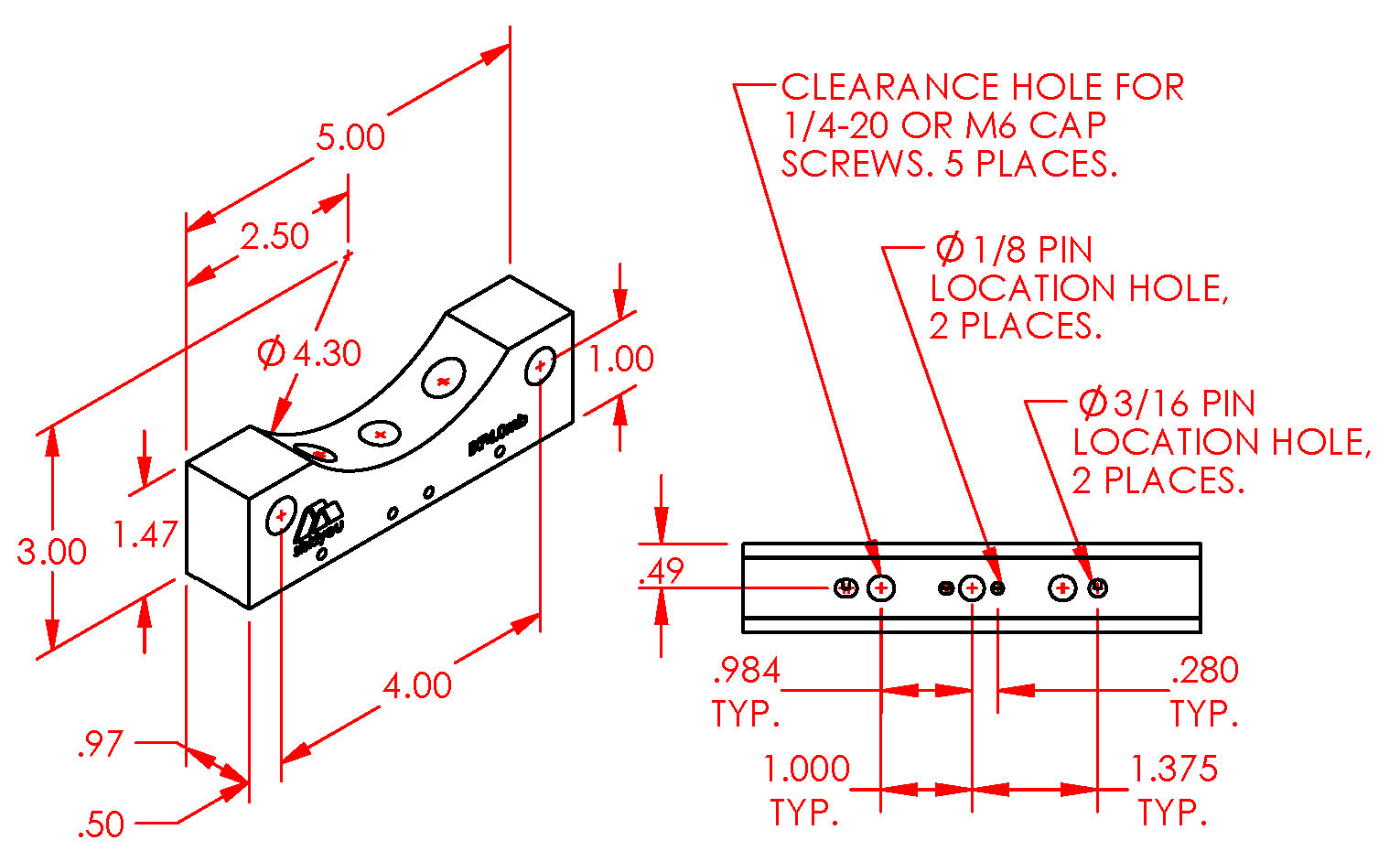

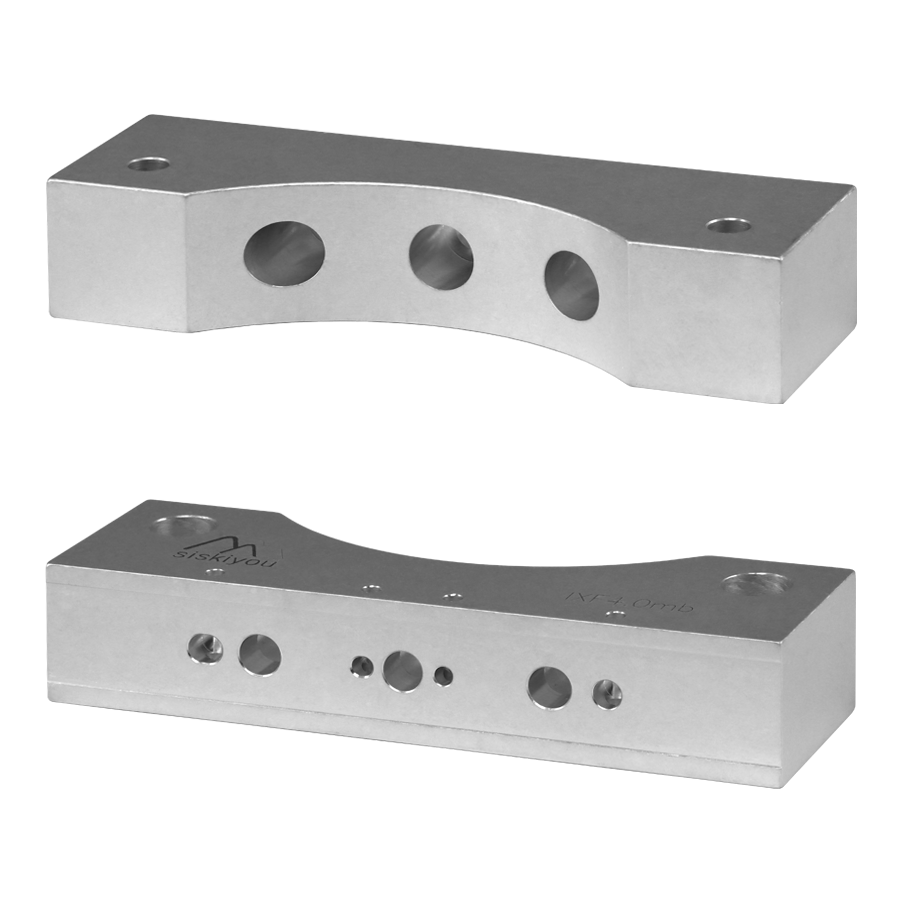

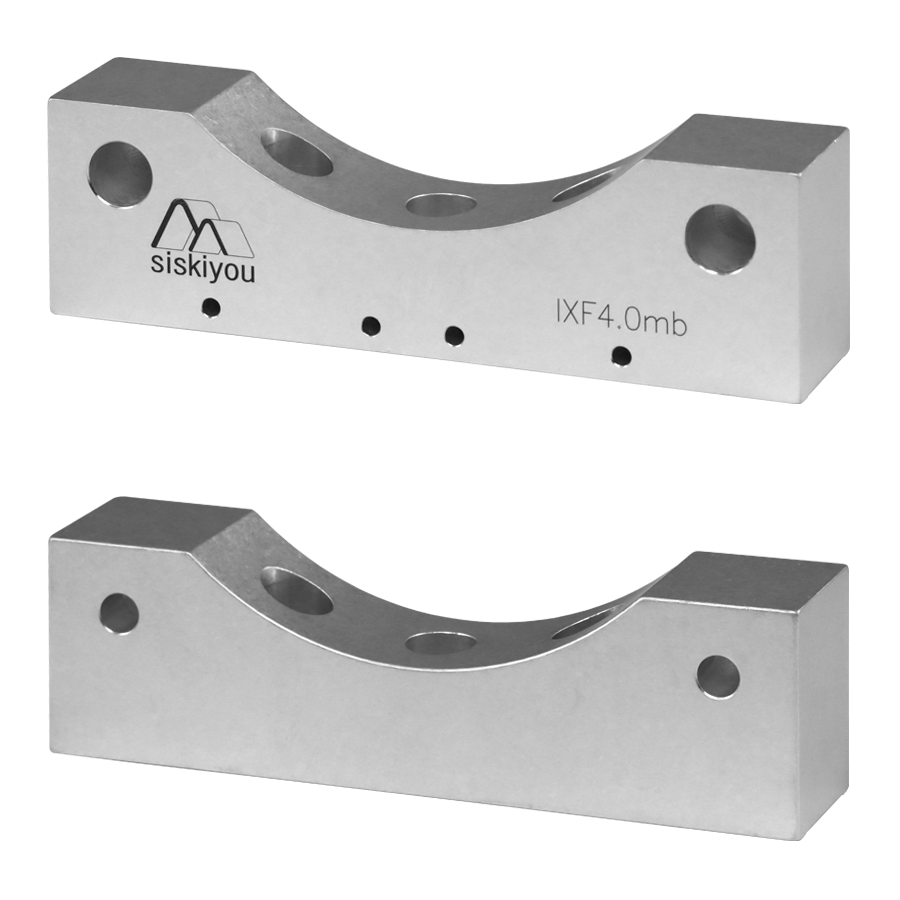

IXF4.0mb [80190000E]
Variant Images
![IXF4.0mb [80190000E] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/80190000E.png)
![IXF4.0mb [80190000E] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/80190000E_1.jpg)
![IXF4.0mb [80190000E] product variant image view 3](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/80190000E_2.png)
Product Details
The IXF4.0mb mounting block provides an easy and robust method for mounting Siskiyou monolithic flexures. Pin pockets in the base prevent unwanted rotation and positive lateral attachment & with pins in place parts can't shift laterally or experience unwanted rotation. They mount from the top so access in tight places is simple. If you have a tight optical layout Siskiyou monolithic flexures and mounting blocks provide the ultimate in stability and vibration resistance.
Product Features:
- Stable table-top or AS spacer mounting option for the IXF series flexure mounts
- Four pin holes in bottom mounting surface for OEM registration pins
- Monolithic design
- Aluminum Construction
- Compatible with IXF4.0 series flexure mounts
- RoHS compliant

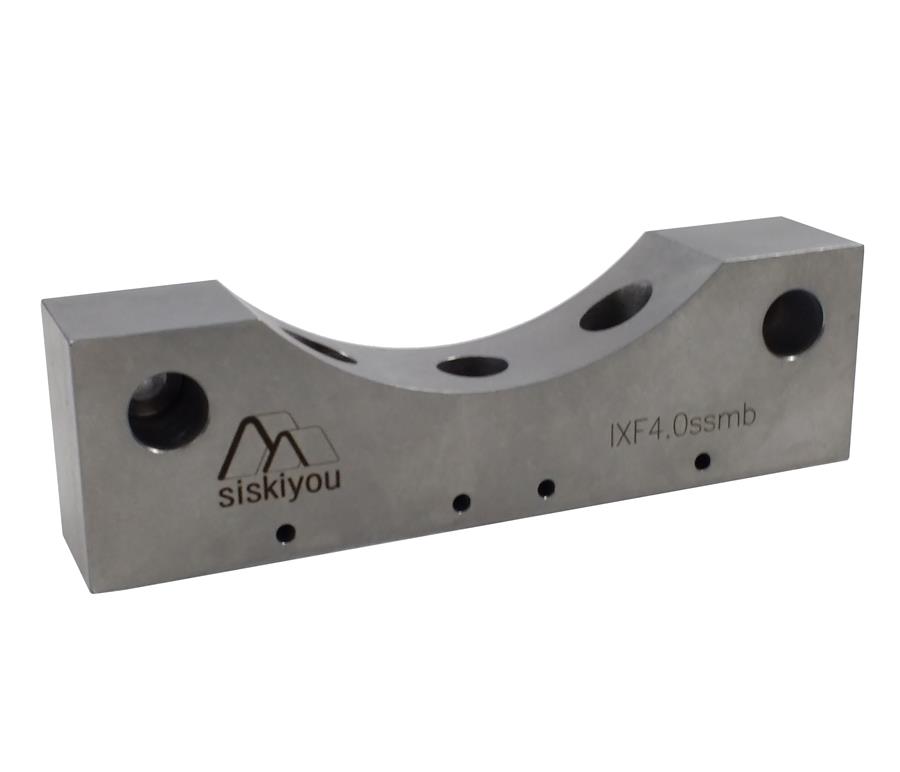

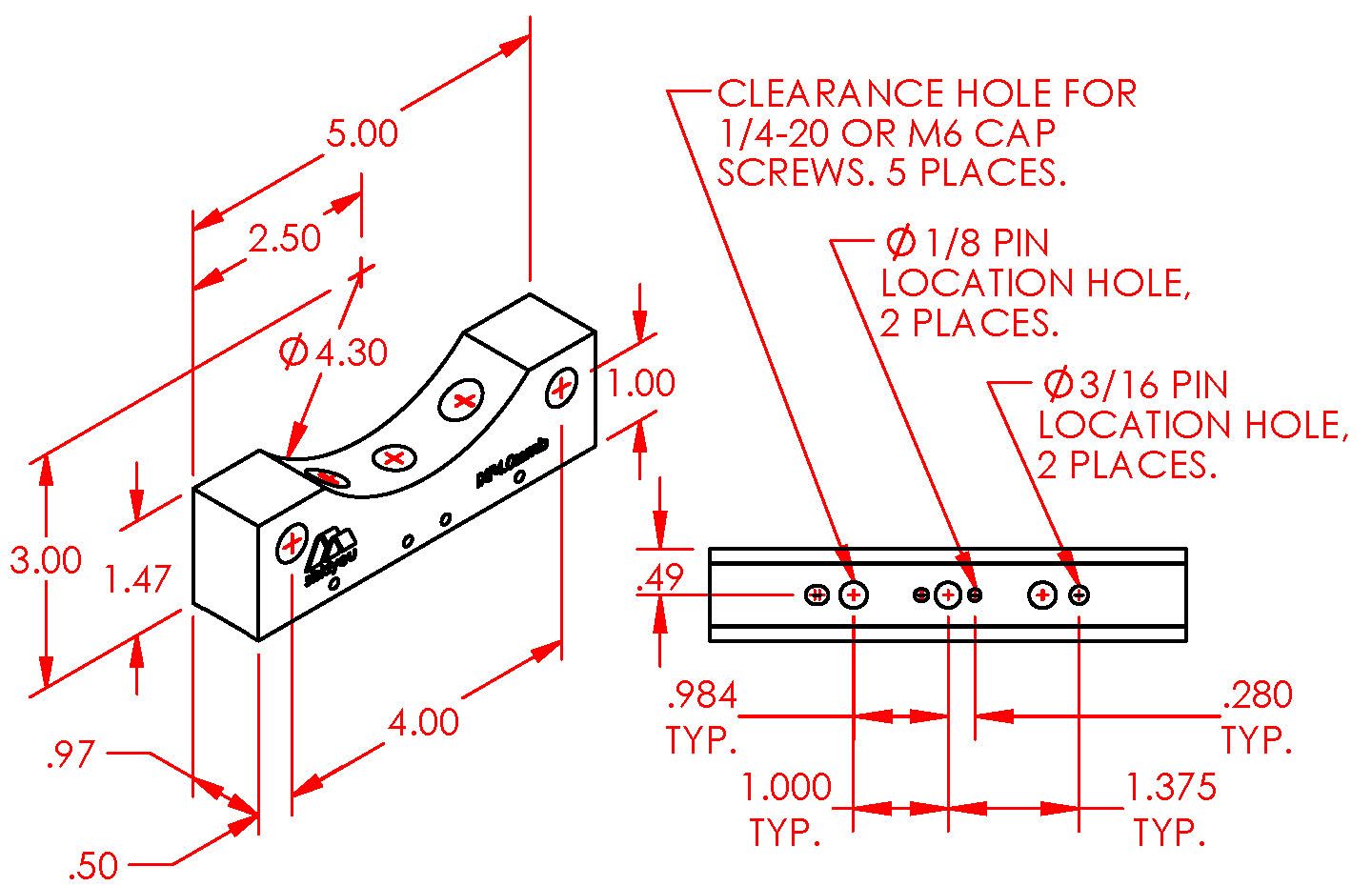

IXF4.0ssmb [80200000E]
Variant Images
![IXF4.0ssmb [80200000E] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/80200000E.jpg)
![IXF4.0ssmb [80200000E] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/80200000E_1.jpg)
Product Details
The IXF4.0ssmb mounting block provides an easy and robust method for mounting Siskiyou monolithic flexures. Pin pockets in the base prevent unwanted rotation and positive lateral attachment & with pins in place parts can't shift laterally or experience unwanted rotation. They mount from the top so access in tight places is simple. If you have a tight optical layout Siskiyou monolithic flexures and mounting blocks provide the ultimate in stability and vibration resistance.
Product Features:
- Stable table-top or AS spacer mounting option for the IXF series flexure mounts
- Four pin holes in bottom mounting surface for OEM registration pins
- Monolithic design
- Stainless Steel Construction
- Compatible with IXF4.0 series flexure mounts
- RoHS compliant

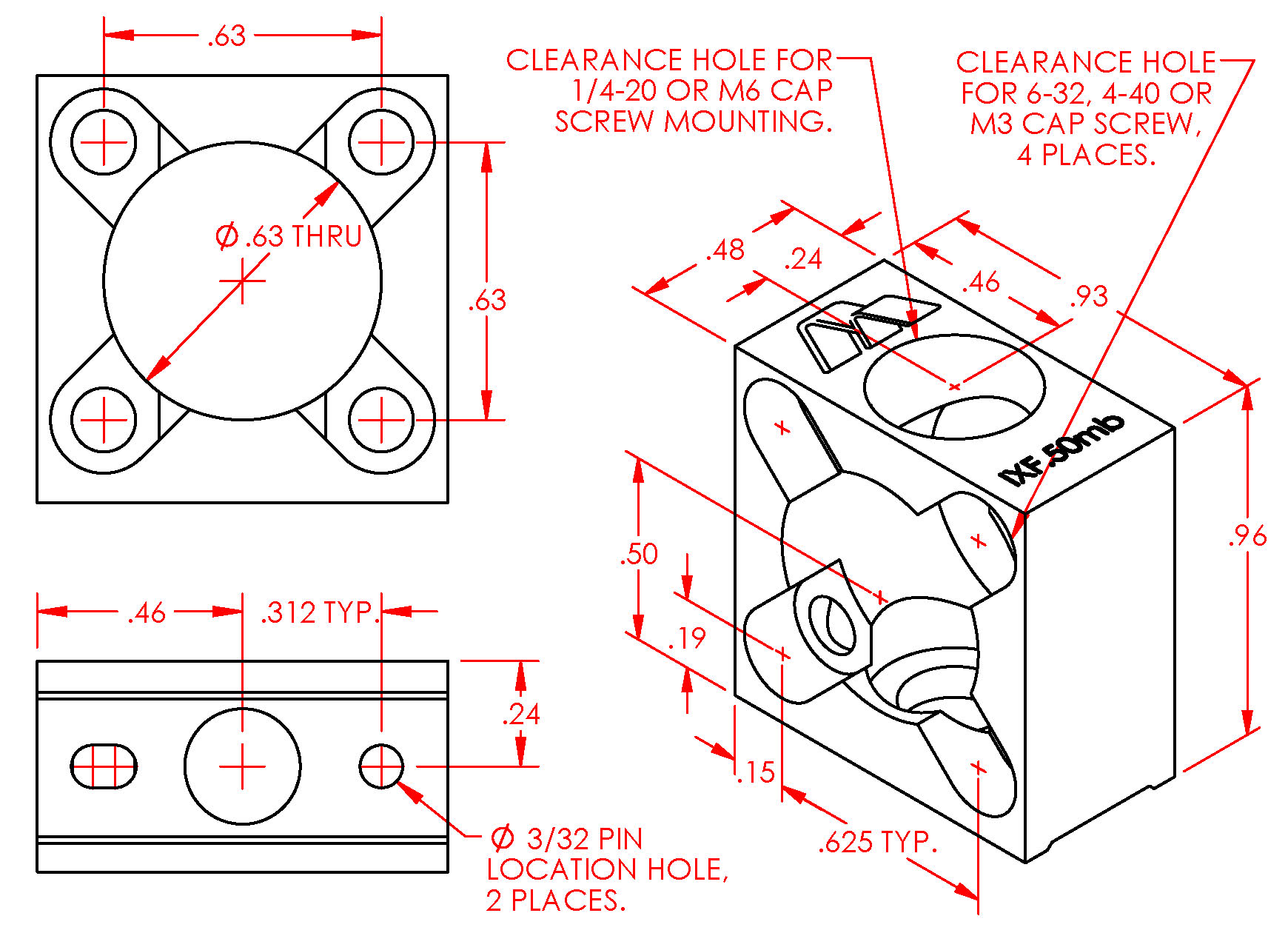

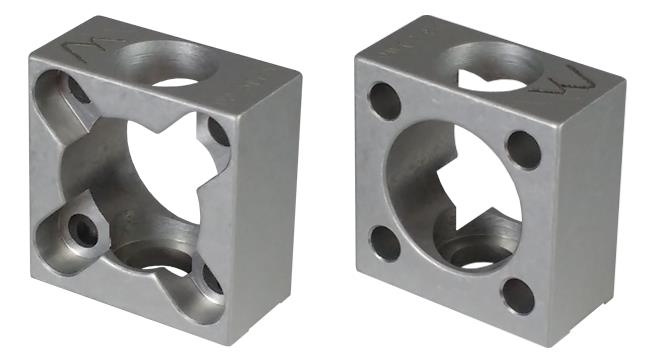

IXF.50mb [80110000E]
Variant Images
![IXF.50mb [80110000E] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/80110000E.jpg)
![IXF.50mb [80110000E] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/80110000E_1.JPG)
Product Details
The IXF.50.mb mounting block provides an easy and robust method for mounting Siskiyou monolithic flexures. Pin pockets in the base prevent unwanted rotation and positive lateral attachment & with pins in place parts can't shift laterally or experience unwanted rotation. They mount from the top so access in tight places is simple. If you have a tight optical layout Siskiyou monolithic flexures and mounting blocks provide the ultimate in stability and vibration resistance.
Product Features:
- Stable table-top or AS spacer mounting option for the IXF series flexure mounts
- Two pin holes in bottom mounting surface for OEM registration pins
- Monolithic design
- Aluminum Construction
- Compatible with Imperial or Metric tapped IXF.50 and IXF.50t series flexure mounts
- RoHS compliant

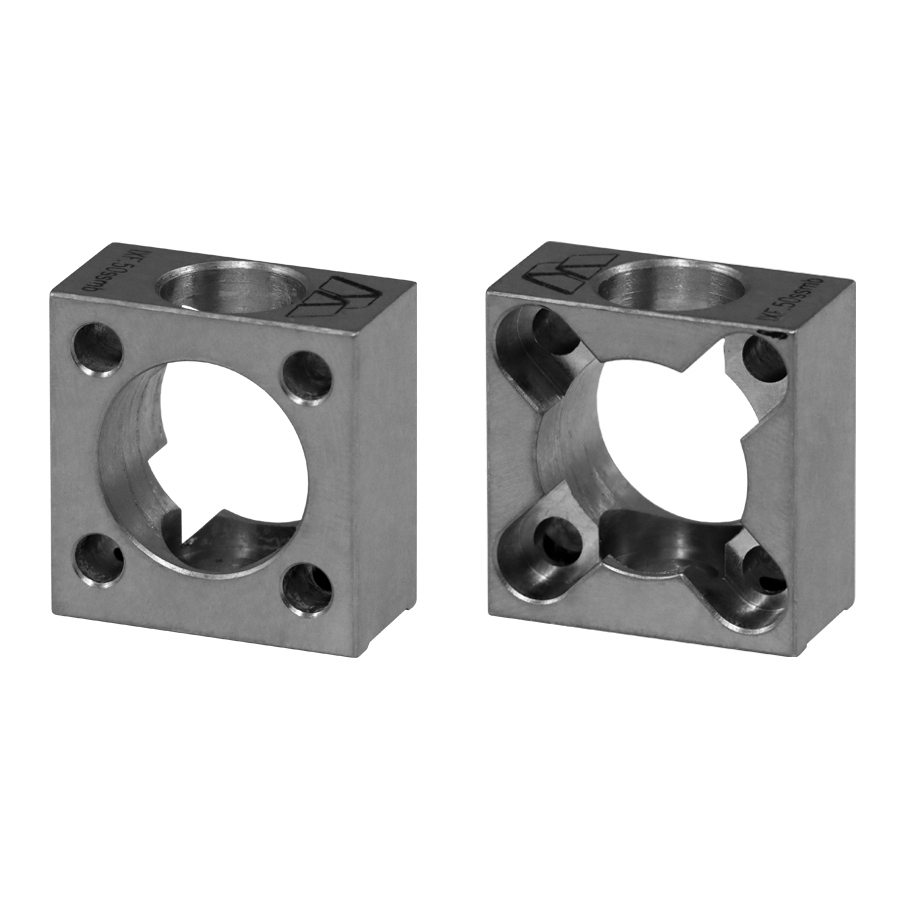

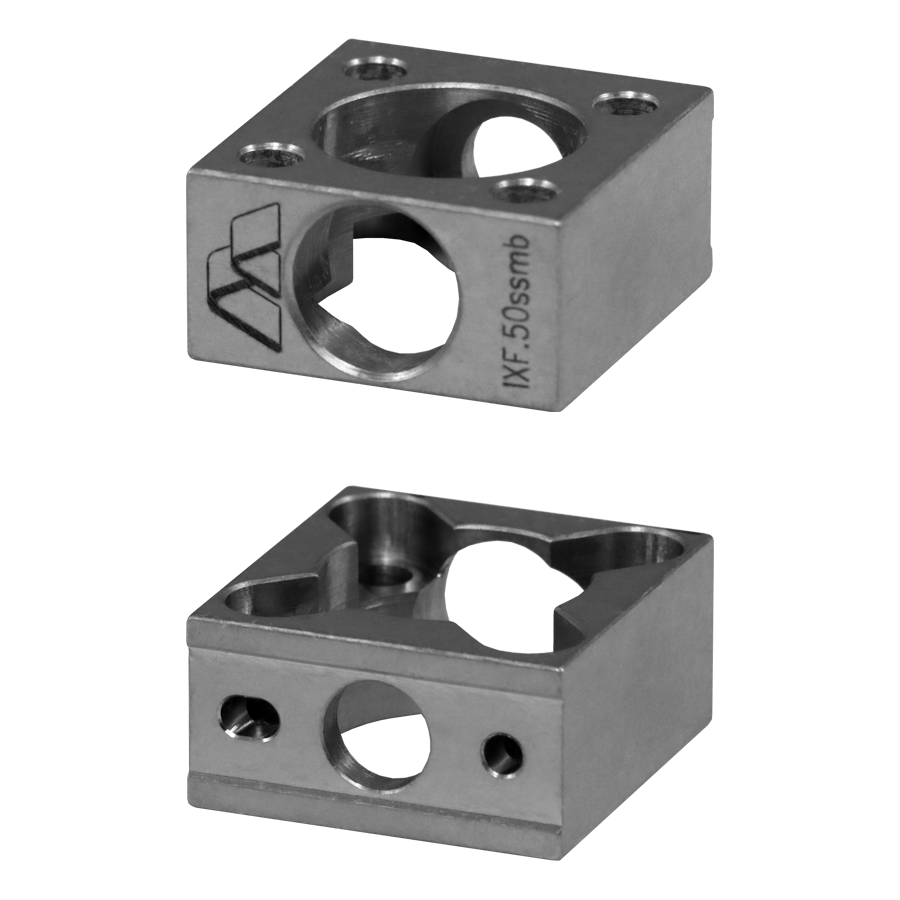

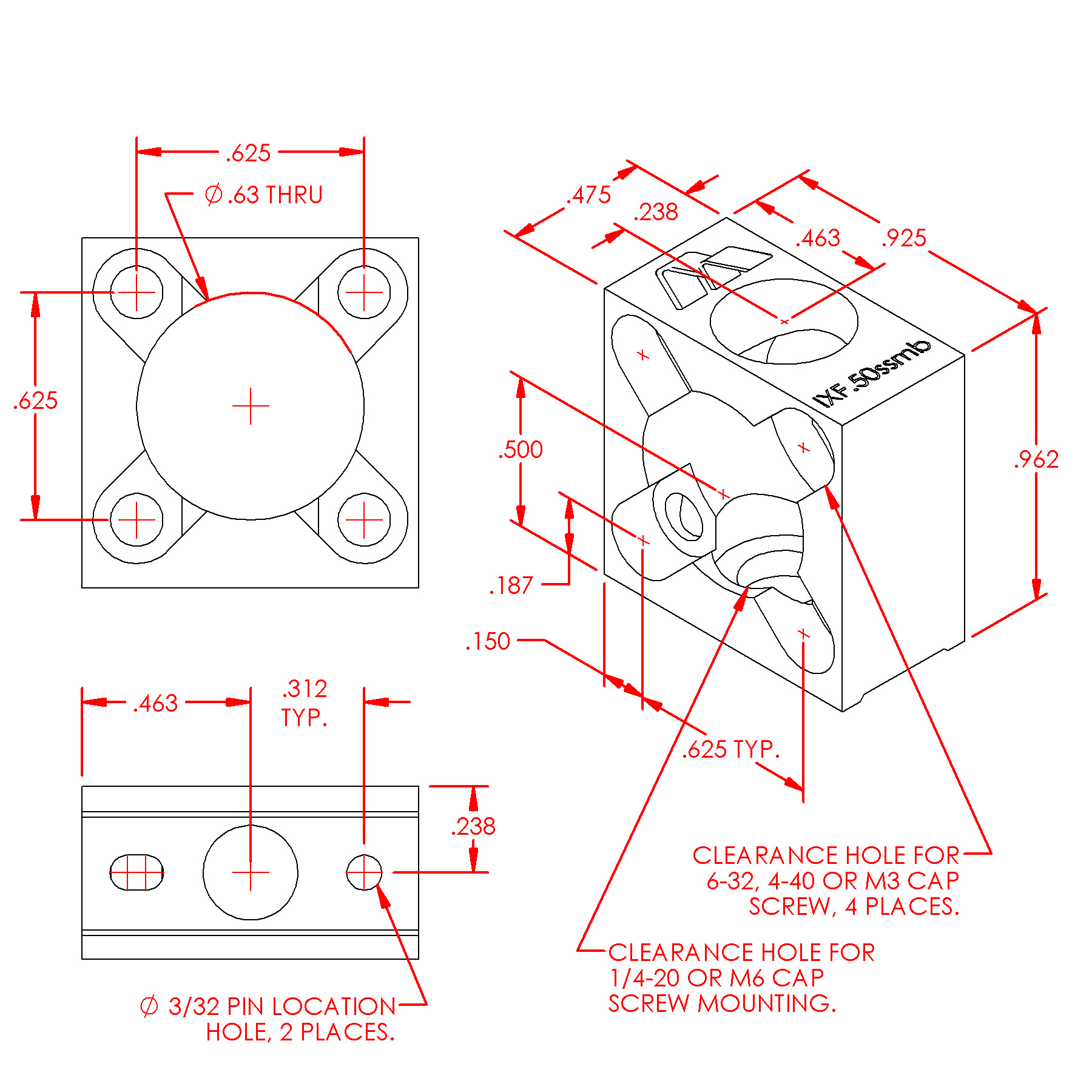

IXF.50ssmb [80210000E]
Variant Images
![IXF.50ssmb [80210000E] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/80210000E.png)
![IXF.50ssmb [80210000E] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/80210000E_1.jpg)
![IXF.50ssmb [80210000E] product variant image view 3](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/80210000E_2.png)
Product Details
The IXF.50ssmb mounting block provides an easy and robust method for mounting Siskiyou monolithic flexures. Pin pockets in the base prevent unwanted rotation and positive lateral attachment & with pins in place parts can't shift laterally or experience unwanted rotation. They mount from the top so access in tight places is simple. If you have a tight optical layout Siskiyou monolithic flexures and mounting blocks provide the ultimate in stability and vibration resistance.
Product Features:
- Stable table-top or AS spacer mounting option for the IXF series flexure mounts
- Two pin holes in bottom mounting surface for OEM registration pins
- Monolithic design
- Stainless Steel Construction
- Compatible with Imperial or Metric tapped IXF.50 and IXF.50t series flexure mounts
- Stainless Steel
- RoHS compliant

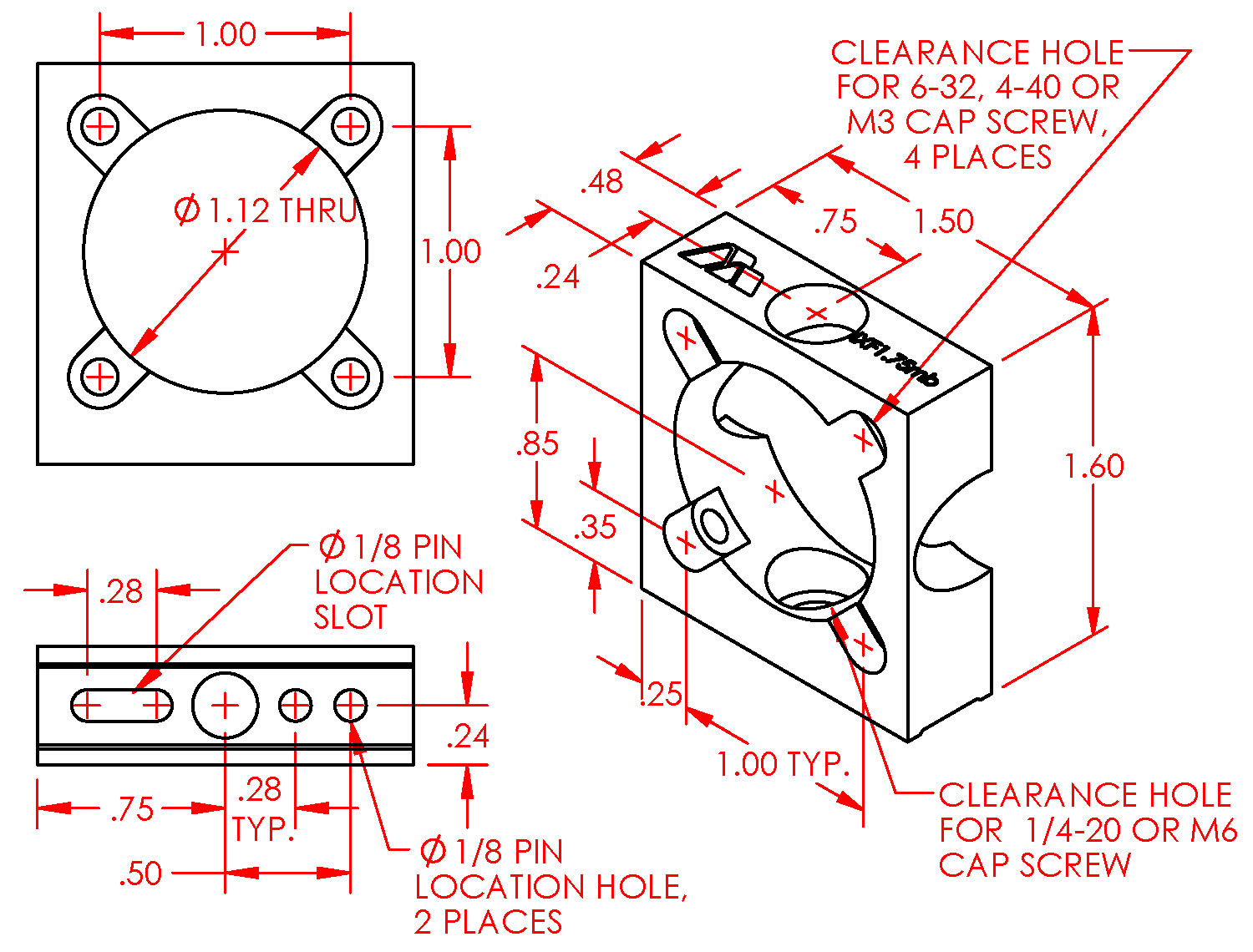

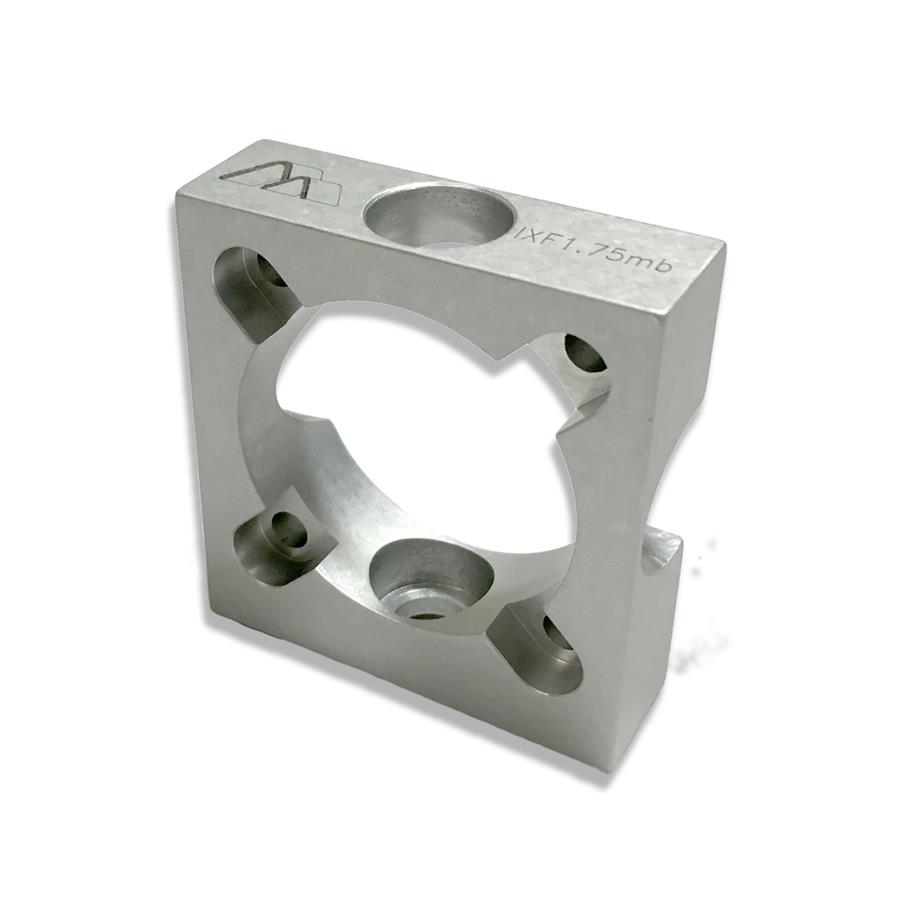

IXF1.75mb [80120000E]
Variant Images
![IXF1.75mb [80120000E] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/80120000E.jpg)
![IXF1.75mb [80120000E] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/80120000E_1.JPG)
Product Details
The IXF1.75mb mounting block provides an easy and robust method for mounting Siskiyou monolithic flexures. Pin pockets in the base prevent unwanted rotation and positive lateral attachment & with pins in place parts can't shift laterally or experience unwanted rotation. They mount from the top so access in tight places is simple. If you have a tight optical layout Siskiyou monolithic flexures and mounting blocks provide the ultimate in stability and vibration resistance.
Product Features:
- Stable table-top or AS spacer mounting option for the IXF series flexure mounts
- Two pin holes in bottom mounting surface for OEM registration pins
- Monolithic design
- Aluminum Construction
- Compatible with Imperial or Metric tapped IXF.75 and IXF1.0 or IXF.75t and IXF1.0t series flexure mounts
- RoHS compliant

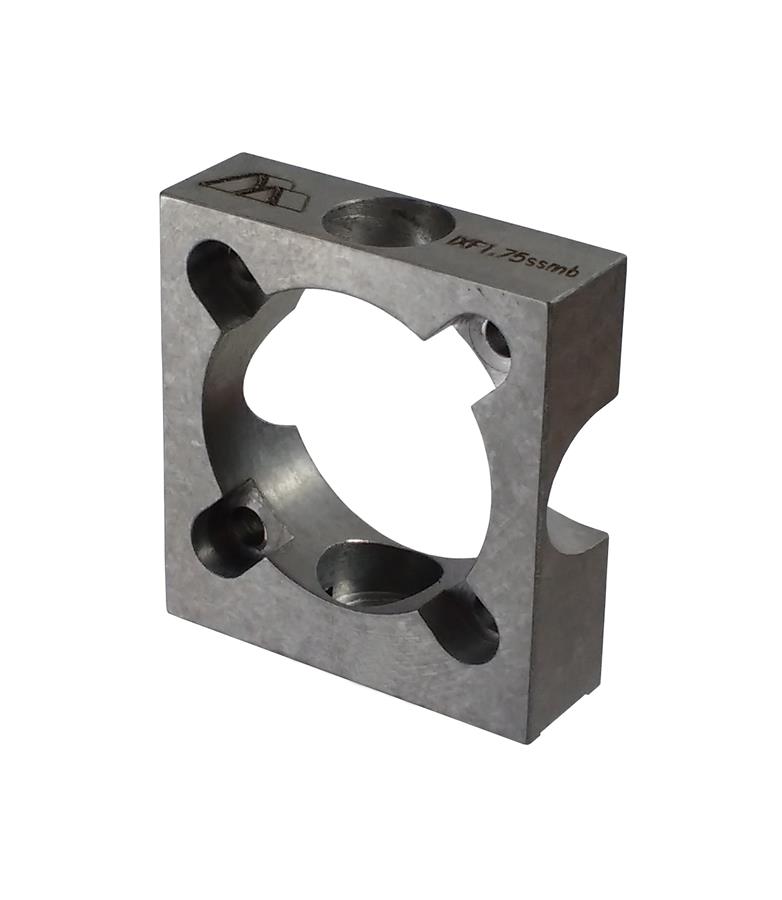

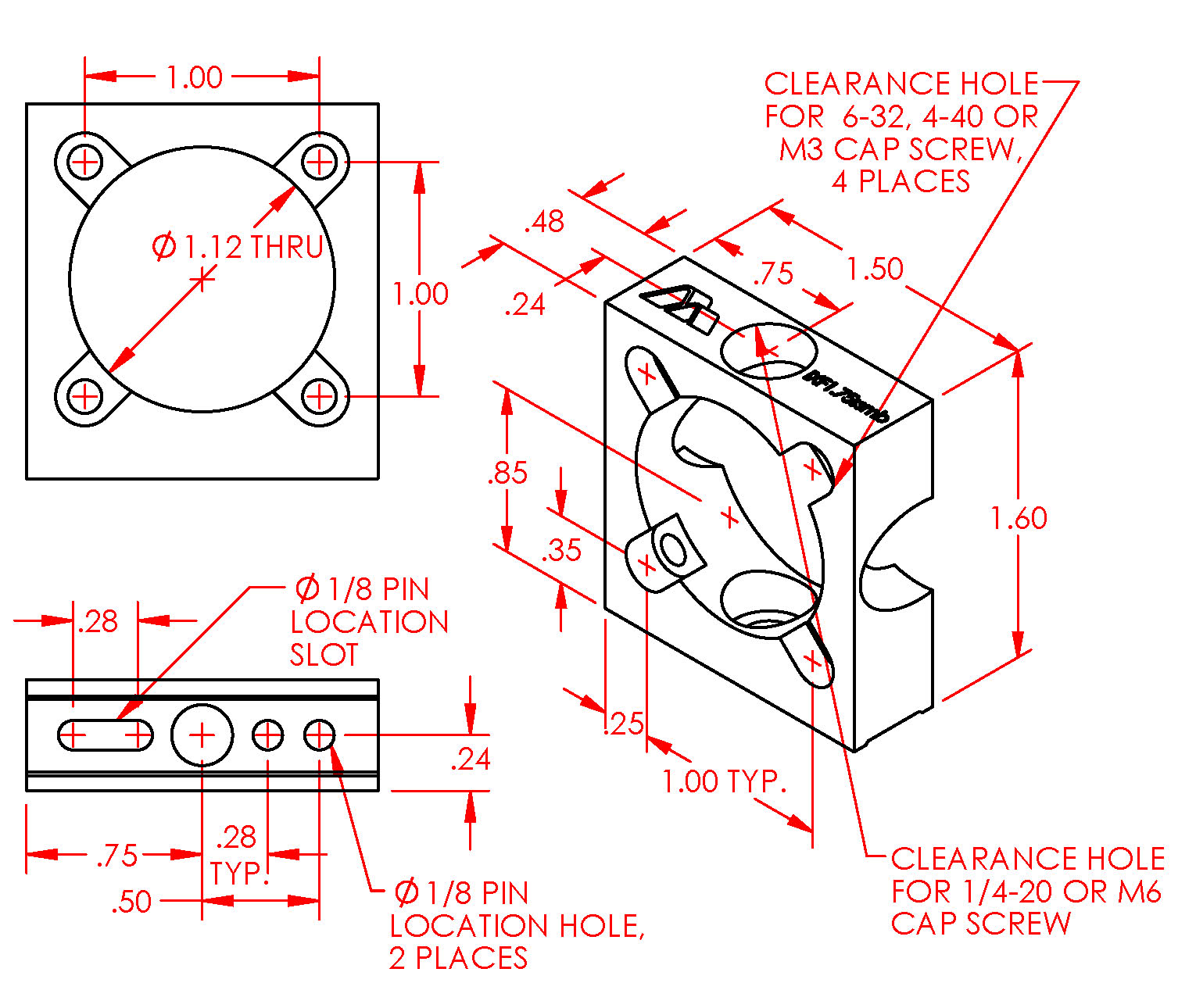

IXF1.75ssmb [80220000E]
Variant Images
![IXF1.75ssmb [80220000E] product variant image view 1](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/80220000E.jpg)
![IXF1.75ssmb [80220000E] product variant image view 2](https://cdn11.bigcommerce.com/s-p4r27vn1d8/content/product_image_library/80220000E_1.jpg)
Product Details
The IXF1.75ssmb mounting block provides an easy and robust method for mounting Siskiyou monolithic flexures. Pin pockets in the base prevent unwanted rotation and positive lateral attachment & with pins in place parts can't shift laterally or experience unwanted rotation. They mount from the top so access in tight places is simple. If you have a tight optical layout Siskiyou monolithic flexures and mounting blocks provide the ultimate in stability and vibration resistance.
Product Features:
- Stable table-top or AS spacer mounting option for the IXF series flexure mounts
- Two pin holes in bottom mounting surface for OEM registration pins
- Monolithic design
- Stainless Steel Construction
- Compatible with Imperial or Metric tapped IXF.75 or IXF1.0 and IXF.75t or IXF1.0t series flexure mounts
- RoHS compliant
