OTX Series Translator

The OTX.5 series optical translators are an OEM version of our popular OT.5 series. These compact optical translators incorporate crossed roller bearings for zero crosstalk between X & Y axis adjustments. precision 100TPI adjustment screws enable submicron adjustment across the full travel of the X & Y axes with smooth feel to the adjustment. Foil locks on all axes have been tested to 4g's to maintain adjustment in challenging environments.

Product Features:

• 100 pitch adjustment screws
• High precision crossed roller design
• All axes lockable
• 0.5-inch optic holder included
• RoHS compliant

Performance Specifications:

Travel

• X and Y axes: 0.125 inch (3 mm)

Minimum controllable motion*:

• X and Y axes: submicron

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

The OTX.5 series optical translators are an OEM version of our popular OT.5 series. These compact optical translators incorporate crossed roller bearings for zero crosstalk between X & Y axis adjustments. precision 100TPI adjustment screws enable submicron adjustment across the full travel of the X & Y axes with smooth feel to the adjustment. Foil locks on all axes have been tested to 4g's to maintain adjustment in challenging environments.

Product Features:

• 100 pitch adjustment screws
• High precision crossed roller design
• All axes lockable
• 0.5-inch optic holder included
• RoHS compliant

Performance Specifications:

Travel

• X and Y axes: 0.125 inch (3 mm)

Minimum controllable motion*:

• X and Y axes: submicron

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

The OTX.5 series optical translators are an OEM version of our popular OT.5 series. These compact optical translators incorporate crossed roller bearings for zero crosstalk between X & Y axis adjustments. precision 100TPI adjustment screws enable submicron adjustment across the full travel of the X & Y axes with a smooth feel to the adjustment. Foil locks on all axes have been tested to 4g's to maintain adjustment in challenging environments. The Z-axis on the OTX.5-3 uses an internal 80 pitch thread. The drive knob for the Z-axis has six locking screws and six capstan drive holes that maximize accessibility in any orientation.

Product Features:

• 100 pitch adjustment screws
• High precision crossed roller design
• All axes lockable
• 0.5-inch optic holder included
• RoHS compliant

Performance Specifications:

Travel

• X and Y axes: 0.125 inch (3 mm)
• Z axis: 0.250 inch (6 mm)

Minimum controllable motion*:

• X Y and Z axes: submicron

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

The OTX.5 series optical translators are an OEM version of our popular OT.5 series. These compact optical translators incorporate crossed roller bearings for zero crosstalk between X & Y axis adjustments. precision 100TPI adjustment screws enable submicron adjustment across the full travel of the X & Y axes with a smooth feel to the adjustment. Foil locks on all axes have been tested to 4g's to maintain adjustment in challenging environments. The Z-axis on the OTX.5-3 uses an internal 80 pitch thread. The drive knob for the Z-axis has six locking screws and six capstan drive holes that maximize accessibility in any orientation.

Product Features:

• 100 pitch adjustment screws
• High precision crossed roller design
• All axes lockable
• 0.5-inch optic holder included
• RoHS compliant

Performance Specifications:

Travel

• X and Y axes: 0.125 inch (3 mm)
• Z axis: 0.250 inch (6 mm)

Minimum controllable motion*:

• X Y and Z axes: submicron

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

The OTX.5 series optical translators are an OEM version of our popular OT.5 series. These compact optical translators incorporate crossed roller bearings for zero crosstalk between X & Y axis adjustments. precision 100TPI adjustment screws enable submicron adjustment across the full travel of the X & Y axes with a smooth feel to the adjustment. Foil locks on all axes have been tested to 4g's to maintain adjustment in challenging environments. The Z-axis on the OTX.5-5 uses an internal 80 pitch thread. The drive knob for the Z-axis has six locking screws and six capstan drive holes that maximize accessibility in any orientation.

Product Features

• 100 pitch adjustment screws
• High precision crossed roller design
• All axes lockable
• 0.5-inch optic holder included
• RoHS compliant

Performance Specifications:

Travel

• X and Y axes: 0.125 inch (3 mm)
• Z axis: 0.250 inch (6 mm)
• Pitch and Yaw: 5°

Minimum controllable motion*:

• X Y and Z axes: submicron
• Pitch and Yaw: 5 arc sec.

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

The OTX.5 series optical translators are an OEM version of our popular OT.5 series. These compact optical translators incorporate crossed roller bearings for zero crosstalk between X & Y axis adjustments. precision 100TPI adjustment screws enable submicron adjustment across the full travel of the X & Y axes with a smooth feel to the adjustment. Foil locks on all axes have been tested to 4g's to maintain adjustment in challenging environments. The Z-axis on the OTX.5-5 uses an internal 80 pitch thread. The drive knob for the Z-axis has six locking screws and six capstan drive holes that maximize accessibility in any orientation.

Product Features

• 100 pitch adjustment screws
• High precision crossed roller design
• All axes lockable
• 0.5-inch optic holder included
• RoHS compliant

Performance Specifications:

Travel

• X and Y axes: 0.125 inch (3 mm)
• Z axis: 0.250 inch (6 mm)
• Pitch and Yaw: 5°

Minimum controllable motion*:

• X Y and Z axes: submicron
• Pitch and Yaw: 5 arc sec.

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

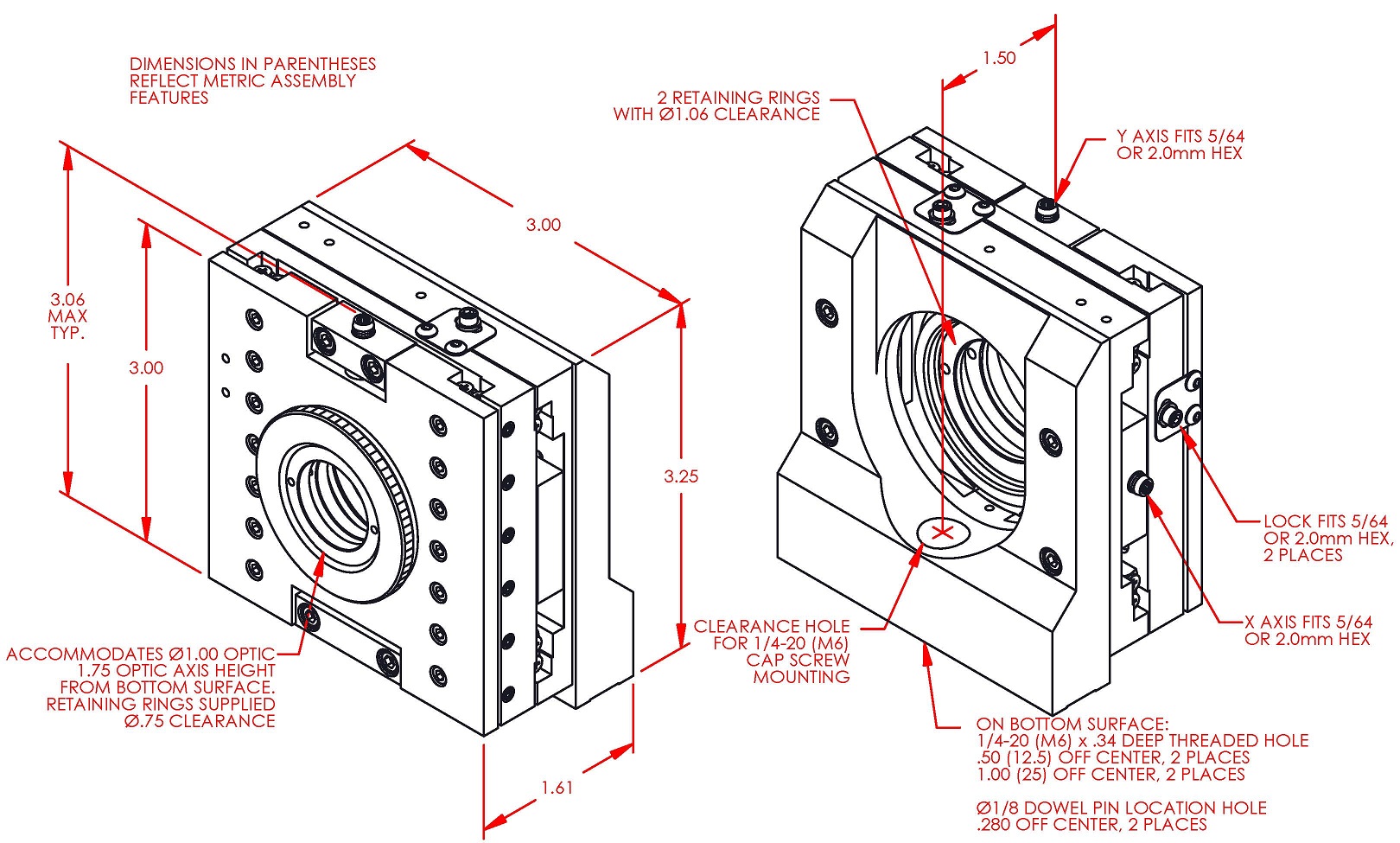

The OTX1.0 series optical translators are an OEM version of our popular OT1.0 series. These compact optical translators incorporate crossed roller bearings for zero crosstalk between X & Y axis adjustments. precision 100TPI adjustment screws enable submicron adjustment across the full travel of the X & Y axes with a smooth feel to the adjustment. Foil locks on all axes have been tested to 4g's to maintain adjustment in challenging environments.

Product Features:

• 100 pitch adjustment screws
• High precision crossed roller design
• All axes lockable
• 1.0-inch optic holder included
• RoHS compliant

Performance Specifications:

Travel

• X and Y axes: 0.125 inch (3 mm)

Minimum controllable motion*:

• X and Y axes: submicron

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

The OTX1.0 series optical translators are an OEM version of our popular OT1.0 series. These compact optical translators incorporate crossed roller bearings for zero crosstalk between X & Y axis adjustments. precision 100TPI adjustment screws enable submicron adjustment across the full travel of the X & Y axes with a smooth feel to the adjustment. Foil locks on all axes have been tested to 4g's to maintain adjustment in challenging environments.

Product Features:

• 100 pitch adjustment screws
• High precision crossed roller design
• All axes lockable
• 1.0-inch optic holder included
• RoHS compliant

Performance Specifications:

Travel

• X and Y axes: 0.125 inch (3 mm)

Minimum controllable motion*:

• X and Y axes: submicron

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

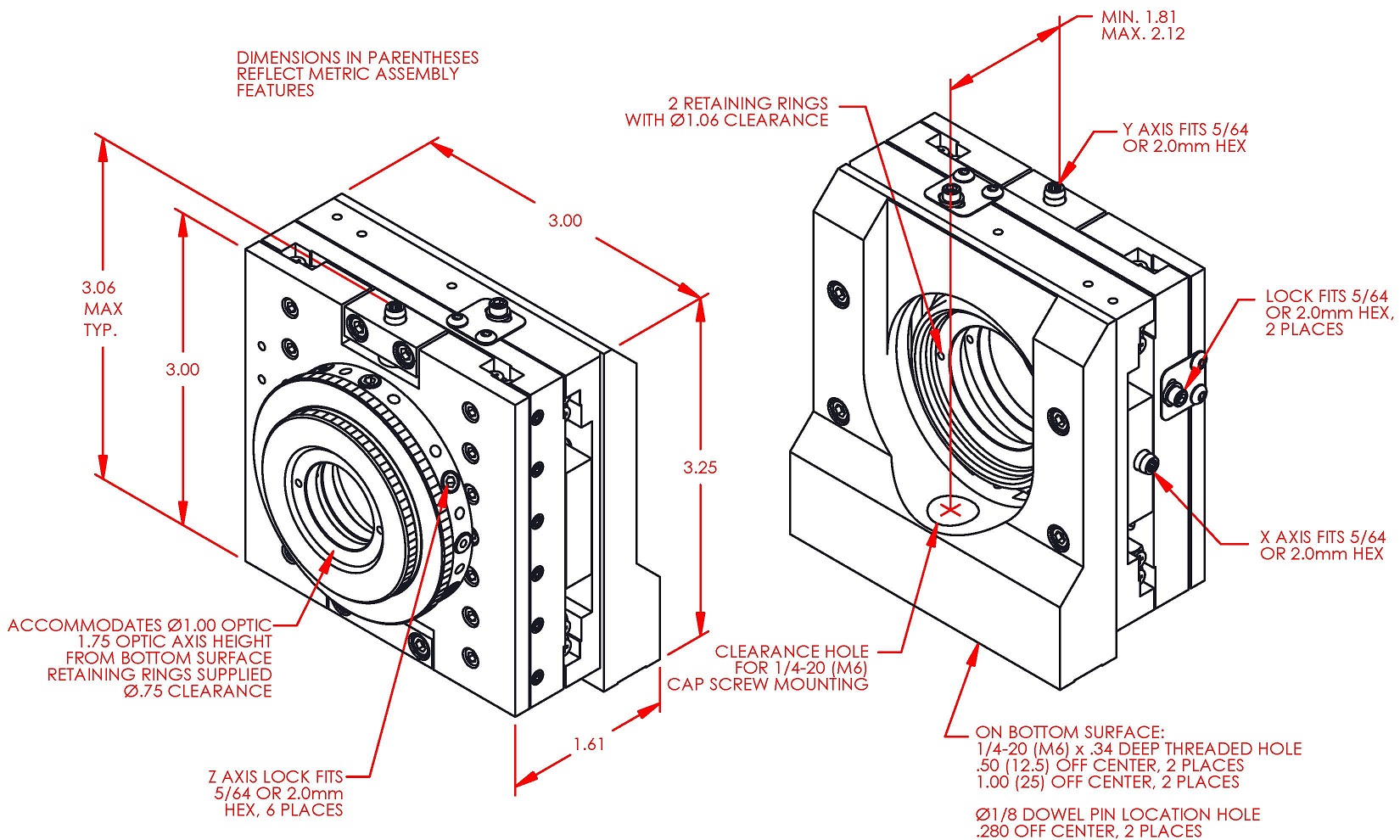

The OTX1.0 series optical translators are an OEM version of our popular OT1.0 series. These compact optical translators incorporate crossed roller bearings for zero crosstalk between X & Y axis adjustments. precision 100TPI adjustment screws enable submicron adjustment across the full travel of the X & Y axes with a smooth feel to the adjustment. Foil locks on all axes have been tested to 4g's to maintain adjustment in challenging environments. The Z-axis on the OTX1.0-3 uses an internal 40 pitch thread. The drive knob for the Z-axis has six locking screws and six capstan drive holes that maximize accessibility in any orientation.

Product Features

• 100 pitch adjustment screws
• High precision crossed roller design
• All axes lockable
• 1.0-inch optic holder included
• RoHS compliant

Performance Specifications:

Travel

• X and Y axes: 0.125 inch (3 mm)
• Z axis: 0.250 inch (6 mm)

Minimum controllable motion*:

• X and Y axes: submicron
• Z axis: 10 µm

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

The OTX1.0 series optical translators are an OEM version of our popular OT1.0 series. These compact optical translators incorporate crossed roller bearings for zero crosstalk between X & Y axis adjustments. precision 100TPI adjustment screws enable submicron adjustment across the full travel of the X & Y axes with a smooth feel to the adjustment. Foil locks on all axes have been tested to 4g's to maintain adjustment in challenging environments. The Z-axis on the OTX1.0-3 uses an internal 40 pitch thread. The drive knob for the Z-axis has six locking screws and six capstan drive holes that maximize accessibility in any orientation.

Product Features

• 100 pitch adjustment screws
• High precision crossed roller design
• All axes lockable
• 1.0-inch optic holder included
• RoHS compliant

Performance Specifications:

Travel

• X and Y axes: 0.125 inch (3 mm)
• Z axis: 0.250 inch (6 mm)

Minimum controllable motion*:

• X and Y axes: submicron
• Z axis: 10 µm

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

The OTX1.0 series optical translators are an OEM version of our popular OT1.0 series. These compact optical translators incorporate crossed roller bearings for zero crosstalk between X & Y axis adjustments. precision 100TPI adjustment screws enable submicron adjustment across the full travel of the X & Y axes with a smooth feel to the adjustment. Foil locks on all axes have been tested to 4g's to maintain adjustment in challenging environments. The Z-axis on the OTX1.0-5 uses an internal 40 pitch thread. The drive knob for the Z-axis has six locking screws and six capstan drive holes that maximize accessibility in any orientation.

Product Features:

• 100 pitch adjustment screws
• High precision crossed roller design
• All axes lockable
• 1.0-inch optic holder included
• RoHS compliant

Performance Specifications:

Travel

• X and Y axes: 0.125 inch (3 mm)
• Z axis: 0.250 inch (6 mm)
• Pitch and Yaw: 5°

Minimum controllable motion*:

• X and Y axes: submicron
• Z axis: 10 µm
• Pitch and Yaw: 5 arc sec.

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

The new OTX1.0 series optical translators are an OEM version of our popular OT1.0 series. These compact optical translators incorporate crossed roller bearings for zero crosstalk between X & Y axis adjustments. precision 100TPI adjustment screws enable submicron adjustment across the full travel of the X & Y axes with a smooth feel to the adjustment. Foil locks on all axes have been tested to 4g's to maintain adjustment in challenging environments. The Z-axis on the OTX1.0-5 uses an internal 40 pitch thread. The drive knob for the Z-axis has six locking screws and six capstan drive holes that maximize accessibility in any orientation.

Product Features:

• 100 pitch adjustment screws
• High precision crossed roller design
• All axes lockable
• 1.0-inch optic holder included
• RoHS compliant

Performance Specifications:

Travel

• X and Y axes 0.125 inch (3 mm)
• Z axis 0.250 inch (6 mm)
• Pitch and Yaw: 5°

Minimum controllable motion*:

• X and Y axes submicron
• Z axis: 10 µm
• Pitch and Yaw: 5 arc sec.

The new OTX2.0 series optical translators are an OEM version of our popular OT2.0 series. These compact optical translators incorporate crossed roller bearings for zero crosstalk between X & Y axis adjustments. precision 100TPI adjustment screws enable submicron adjustment across the full travel of the X & Y axes with a smooth feel to the adjustment. Foil locks on all axes have been tested to 4g's to maintain adjustment in challenging environments.

Product Features:

• 100 pitch adjustment screws
• High precision crossed roller design
• All axes lockable
• 1.5-inch optic holder included
• RoHS compliant

Performance Specifications:

Travel

• X and Y axes: 0.125 inch (3 mm)

Minimum controllable motion*:

• X and Y axes: submicron

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

The new OTX2.0 series optical translators are an OEM version of our popular OT2.0 series. These compact optical translators incorporate crossed roller bearings for zero crosstalk between X & Y axis adjustments. precision 100TPI adjustment screws enable submicron adjustment across the full travel of the X & Y axes with a smooth feel to the adjustment. Foil locks on all axes have been tested to 4g's to maintain adjustment in challenging environments.

Product Features:

• 100 pitch adjustment screws
• High precision crossed roller design
• All axes lockable
• 1.5-inch optic holder included
• RoHS compliant

Performance Specifications:

Travel

• X and Y axes: 0.125 inch (3 mm)

Minimum controllable motion*:

• X and Y axes: submicron

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

The new OTX2.0 series optical translators are an OEM version of our popular OT2.0 series. These compact optical translators incorporate crossed roller bearings for zero crosstalk between X & Y axis adjustments. precision 100TPI adjustment screws enable submicron adjustment across the full travel of the X & Y axes with a smooth feel to the adjustment. Foil locks on all axes have been tested to 4g's to maintain adjustment in challenging environments. The Z-axis on the OTX2.0-3 uses an internal 40 pitch thread. The drive knob for the Z-axis has six locking screws and six capstan drive holes that maximize accessibility in any orientation.

Product Features:

• 100 pitch adjustment screws
• High precision crossed roller design
• All axes lockable
• 1.5-inch optic holder included
• RoHS compliant

Performance Specifications:

Travel

• X and Y axes: 0.125 inch (3 mm)
• Z axis: 0.250 inch (6 mm)

Minimum controllable motion*:

• X and Y axes: submicron
• Z axis: 10 µm

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

The new OTX2.0 series optical translators are an OEM version of our popular OT2.0 series. These compact optical translators incorporate crossed roller bearings for zero crosstalk between X & Y axis adjustments. precision 100TPI adjustment screws enable submicron adjustment across the full travel of the X & Y axes with a smooth feel to the adjustment. Foil locks on all axes have been tested to 4g's to maintain adjustment in challenging environments. The Z-axis on the OTX2.0-3 uses an internal 40 pitch thread. The drive knob for the Z-axis has six locking screws and six capstan drive holes that maximize accessibility in any orientation.

Product Features:

• 100 pitch adjustment screws
• High precision crossed roller design
• All axes lockable
• 1.5-inch optic holder included
• RoHS compliant

Performance Specifications:

Travel

• X and Y axes: 0.125 inch (3 mm)
• Z axis: 0.250 inch (6 mm)

Minimum controllable motion*:

• X and Y axes: submicron
• Z axis: 10 µm

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

The OTX2.0 series optical translators are an OEM version of our popular OT2.0 series. These compact optical translators incorporate crossed roller bearings for zero crosstalk between X & Y axis adjustments. precision 100TPI adjustment screws enable submicron adjustment across the full travel of the X & Y axes with a smooth feel to the adjustment. Foil locks on all axes have been tested to 4g's to maintain adjustment in challenging environments. The Z-axis on the OTX2.0-5 uses an internal 40 pitch thread. The drive knob for the Z-axis has six locking screws and six capstan drive holes that maximize accessibility in any orientation.

Product Features:

• 100 pitch adjustment screws
• High precision crossed roller design
• All axes lockable
• 1.5-inch optic holder included
• RoHS compliant

Performance Specifications:

Travel

• X and Y axes: 0.125 inch (3 mm)
• Z axis: 0.250 inch (6 mm)
• Pitch and Yaw: 5°

Minimum controllable motion*:

• X and Y axes: submicron
• Z axis: 10 µm
• Pitch and Yaw: 5 arc sec.

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION

The OTX2.0 series optical translators are an OEM version of our popular OT2.0 series. These compact optical translators incorporate crossed roller bearings for zero crosstalk between X & Y axis adjustments. precision 100TPI adjustment screws enable submicron adjustment across the full travel of the X & Y axes with a smooth feel to the adjustment. Foil locks on all axes have been tested to 4g's to maintain adjustment in challenging environments. The Z-axis on the OTX2.0-5 uses an internal 40 pitch thread. The drive knob for the Z-axis has six locking screws and six capstan drive holes that maximize accessibility in any orientation.

Product Features:

• 100 pitch adjustment screws
• High precision crossed roller design
• All axes lockable
• 1.5-inch optic holder included
• RoHS compliant

Performance Specifications:

Travel

• X and Y axes: 0.125 inch (3 mm)
• Z axis: 0.250 inch (6 mm)
• Pitch and Yaw: 5°

Minimum controllable motion*:

• X and Y axes: submicron
• Z axis: 10 µm
• Pitch and Yaw: 5 arc sec.

*Minimum controllable motion*: BASED ON 1° OF ADJUSTMENT SCREW ROTATION
